Mini DPDT slide switch

Mini DPDT slide switch for printed circuit boards
Mini DPDT slide switch - Image 1
Mini DPDT slide switch - Image 3
Mini DPDT slide switch - Image 4

SKU 2846-DDMINSCSEAN 8219671116183Colour: BlackContact configuration: DPDTLighting: NoneSwitch action: ON-ONItem type: Buttons & switches

Description

Mini DPDT slide switch for printed circuit boards. The lever can switch loads drawing up to 300 mA at 50 VDC. Operating temperature: -25°C to +80°C, average life: 10,000 cycles, body size (mm): 10.6×6.2×8.5.



Technical details

average life 10,000 cycles

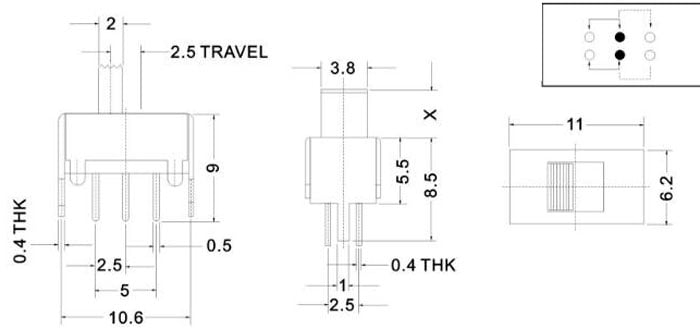

body size (mm) 10.6x6.2x8.5
