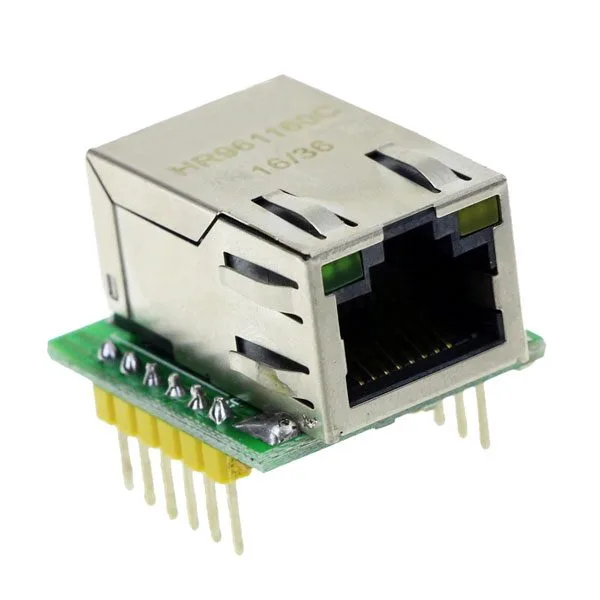

Mini Ethernet Board with W5500 chip
Ultra-compact module based on the WIZnet W5500 Ethernet chip, with a 32 Kbyte internal memory buffer, an Ethernet connector complete with magnetics and 2 status LEDs (Full/Half duplex, Link, Speed, Active). Supports up to eight simultaneous socket connections
SKU 3085-MINIETHW5500EAN 8219671107266Item type: Assembled, Shields & add-onsArduino, Arduino compatible, Ethernet devices
Description
Ultra-compact module based on the WIZnet W5500 Ethernet chip with 32 Kbyte internal memory buffer, Ethernet connector complete with magnetic filters and 2 LEDs for status indication (Full/Half duplex, Link, Speed, Active). Supports up to eight simultaneous socket connections. Supports TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE protocols. The 32Kbyte internal memory buffer is used for processing the Ethernet data packet.
Technical Specifications
- IEEE802.3af compliant
- 2 LEDs for status indication (Full/Half duplex, Link, Speed, Active)
- Supports up to 8 simultaneous socket connections
- Supports auto power-down mode
- Supports Wake on LAN over UDP
- Supports high-speed serial interface (SPI MODE 0, 3)
- 32Kbyte internal memory for TX/RX buffers
- 10BaseT/100BaseTX Ethernet PHY embedded
- Supports auto-negotiation (full and half duplex, 10 and 100-based)
- Does not support IP fragmentation
Documentation and useful links
Technical details
| Ethernet port | 10/100BaseTX |
|---|---|
| Hardware Internet protocols | TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE |
| Power supply | 3.3 V with 5 V tolerance for I/O pins |

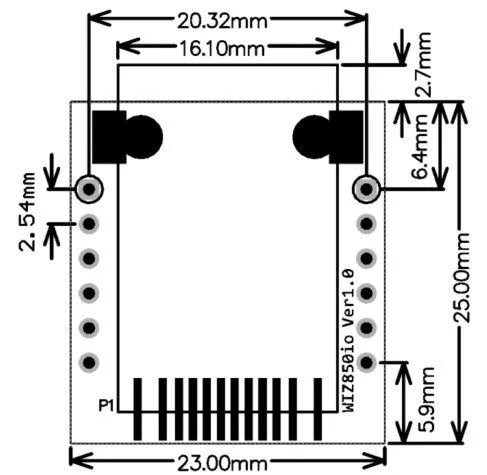

| Dimensions (mm) | 25x23x16.5 |
| Weight | 8.5 grams |
