Mini PCB-Mount Pushbutton Changeover Switch

Mini pushbutton changeover switch for direct PCB mounting
Mini PCB-Mount Pushbutton Changeover Switch - Image 1
Mini PCB-Mount Pushbutton Changeover Switch - Image 3
Mini PCB-Mount Pushbutton Changeover Switch - Image 4
Mini PCB-Mount Pushbutton Changeover Switch - Image 5

SKU 8300-YM275EAN 8219671110051Colour: BlueContact configuration: DPDTLighting: NoneSwitch action: ON-ONItem type: Buttons & switches

Description

Mini push-button switch for direct PCB mounting. Dimensions (mm): 12.2 x 7 x 7, rated load: 0.3 A – 60 VAC / 1.5 A – 25 VAC, insulation resistance: >= 100 Mohm, contact resistance: <= 0.02 ohm, average life of electrical and mechanical parts: 100,000 cycles, operating temperature: -40°C to +70°C.

Technical details

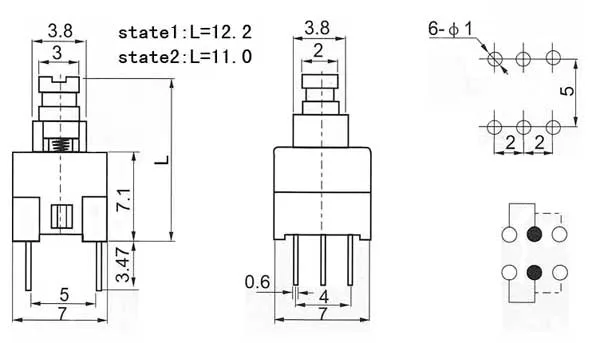

Dimensions (mm) 12.2 x 7 x 7
rated load 0.3 A - 60 VAC / 1.5 A - 25 VAC
insulation resistance >= 100 Mohm
