Mini push button switch – green

Panel mount mini push button switch
Mini push button switch - green - Image 1

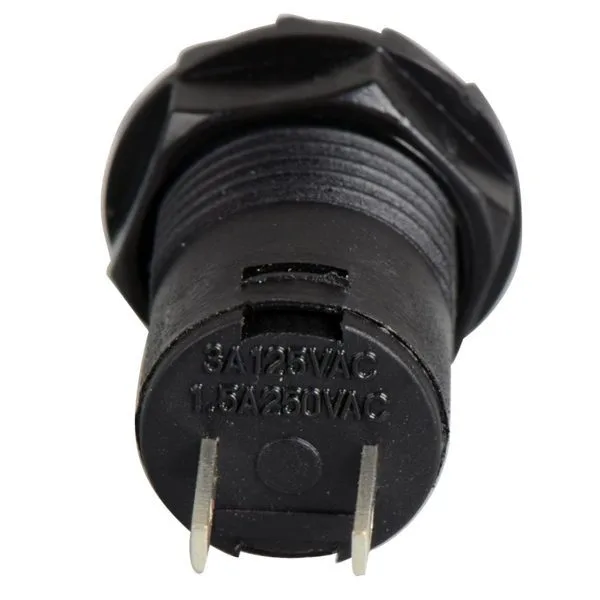

Mini push button switch - green - Image 3

SKU 2846-CH32039EAN 8219671100632Colour: GreenContact configuration: SPSTHole size: 12 mmLighting: NoneSwitch action: ON-OFFItem type: Buttons & switches

Description

Panel mount mini push button switch with ON/OFF latching. Colour: green, max. current: 3 A / 124 VAC – 1.5 A / 250 VAC, operating temperature: -25°C to +55°C. Maximum dimensions (mm): 30.2×16.2, mounting hole diameter: 12 mm, solder terminals, weight: 3 grams.



Technical details

Colour green
max. current 3 A / 124 VAC – 1.5 A / 250 VAC
operating temperature -25°C to +55°C. Maximum dimensions (mm): 30.2x16.2
mounting hole diameter 12 mm, solder terminals
weight 3 grams
