Mini servo 1.2 kg/cm, plastic gears, 180°

9-gram analogue servo supplied with accessories, running on 4.8 to 6 Vdc: it turns 60 degrees in 0.12 seconds.

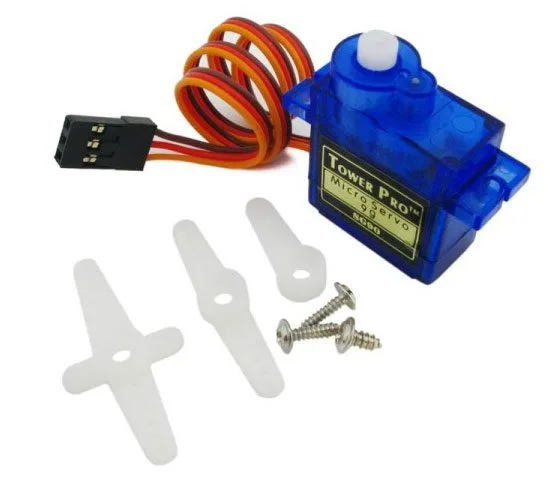

Mini servo 1.2 kg/cm, plastic gears, 180° - Image 1

SKU 7300-SERVO206EAN 8219671019248Item type: Assembled

Description

Analogue servo supplied with accessories. Weight: 9 grams, power supply: 4.8 VDC to 6 VDC, torque at 4.8V: 1.2 kg•cm, torque at 6V: 1.5kg, rotation: 180°, speed at 4.8V: 0.12 sec/60°, speed at 6V: 0.11 sec/60°, dimensions (mm): 22.5x12x29.
Connections



Technical details

Weight 9 grams
power supply 4.8 VDC to 6 VDC
torque at 4.8V 1.2 kg•cm
torque at 6V 1.5kg
rotation 180°
speed at 4.8V 0.12 sec/60°
speed at 6V 0.11 sec/60°
dimensions (mm) 22.5x12x29
