N.O. PCB Push Button – 90 degrees

SPST-NO momentary micro push button for direct PCB mounting
N.O. PCB Push Button - 90 degrees - Image 1
N.O. PCB Push Button - 90 degrees - Image 3

SKU 4220-TS6601VEAN 8219671093903Colour: BlackContact configuration: SPSTLighting: NoneSwitch action: (ON)-OFFItem type: Buttons & switches

Description

Normally open miniature pushbutton for direct PCB mounting at a 90-degree angle.

Technical specifications

  • Contact: SPST-NO (normally open switch, contact closes when pressed)

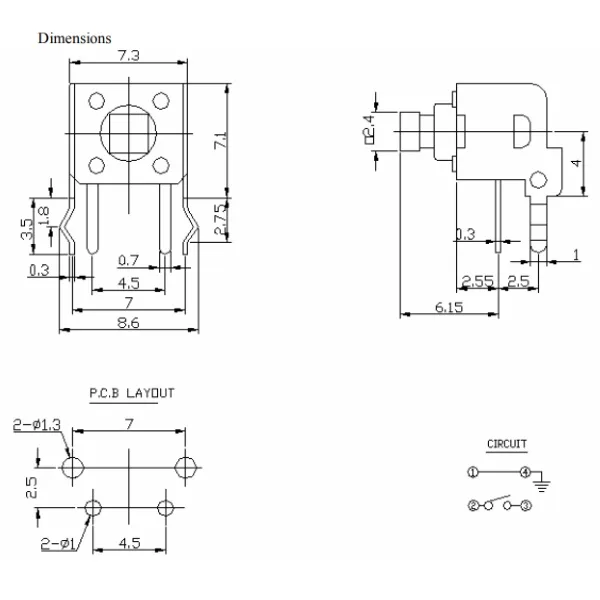

Technical details

Shaft height 3.6 mm
Rating 12 Vdc - 50 mA
Insulation resistance > 100 Mohm - 250 Vdc
Contact resistance <100mohm
Soldering temperature 255 °C max. 5 seconds
Mechanical life 500,000 cycles
Electrical life 300,000 cycles
Operating temperature -25 °C to +70 °C
