N20 6Vdc 100RPM micro gearmotor with M4 shaft and metal gearbox

N20 6Vdc micro gearmotor with 100 RPM speed, designed to deliver high torque in a compact size.
N20 6Vdc 100RPM micro gearmotor with M4 shaft and metal gearbox - Image 1
N20 6Vdc 100RPM micro gearmotor with M4 shaft and metal gearbox - Image 3
N20 6Vdc 100RPM micro gearmotor with M4 shaft and metal gearbox - Image 4

SKU 8300-MMG6V100M4EAN 8219671076869Item type: Assembled

Description

with metal gearbox and M4 shaft, delivering an output speed of 100 RPM. Designed to deliver high torque in a compact size, it’s perfect for low-speed mechanical systems such as mobile robots, actuators, automated devices and technical model-making projects.

The metal gearbox ensures long life and efficient power transmission, while the M4 shaft allows for simple, stable mounting of mechanical components.

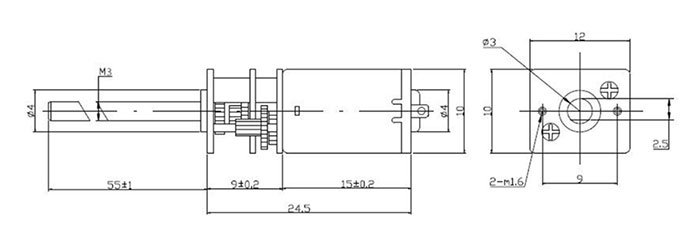

Dimensions (mm)
N20 micro gearmotor, 12Vdc, 100RPM, with M4 shaft and metal gears

Technical details

Rated voltage 6Vdc
Motor type DC brushed
Format N20
Output speed 100 RPM
Gearbox metal gears
Shaft Ø 4 mm, M4 thread
Weight about 28 grams
