NEMA 23 Bipolar Stepper Motor – 2.8 A, 6.35 mm Shaft

NEMA23 stepper motor for CNC, robotics and similar applications.

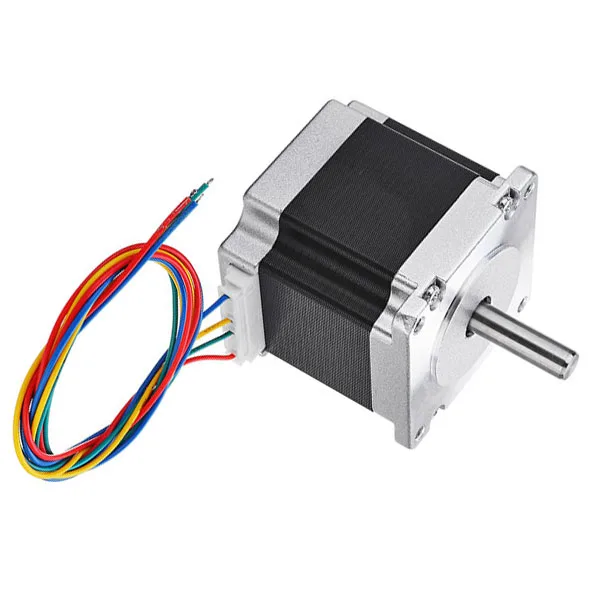

NEMA 23 Bipolar Stepper Motor - 2.8 A, 6.35 mm Shaft - Image 1

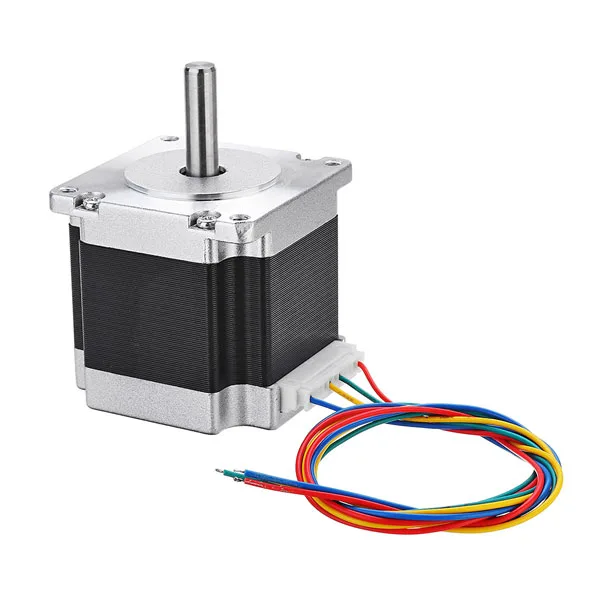

NEMA 23 Bipolar Stepper Motor - 2.8 A, 6.35 mm Shaft - Image 3

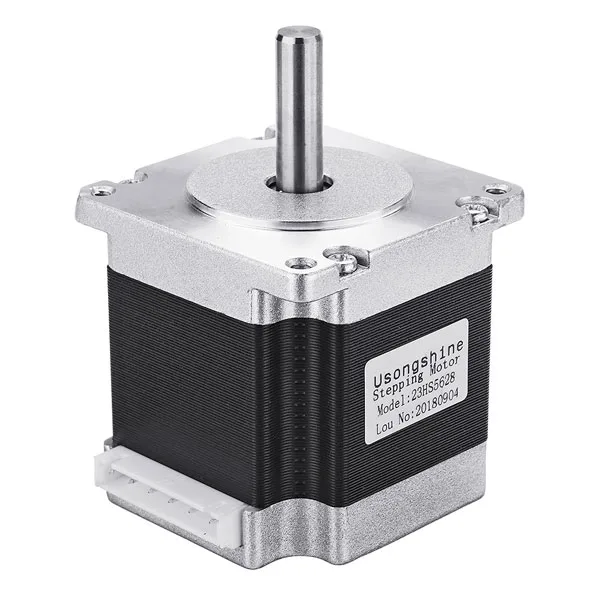

NEMA 23 Bipolar Stepper Motor - 2.8 A, 6.35 mm Shaft - Image 4

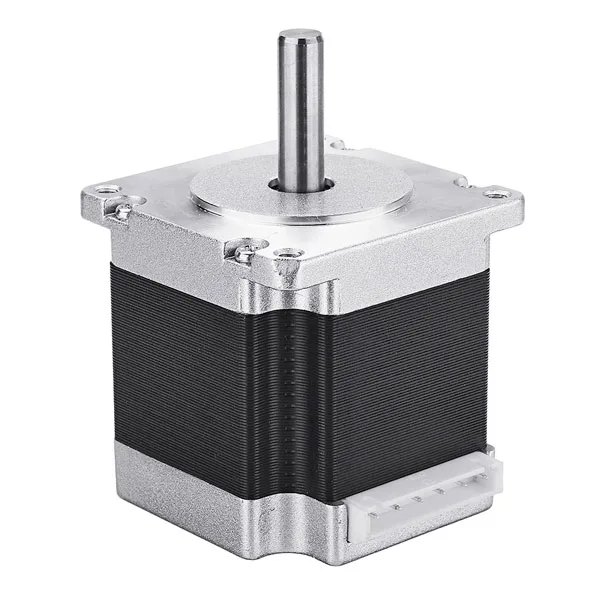

NEMA 23 Bipolar Stepper Motor - 2.8 A, 6.35 mm Shaft - Image 5

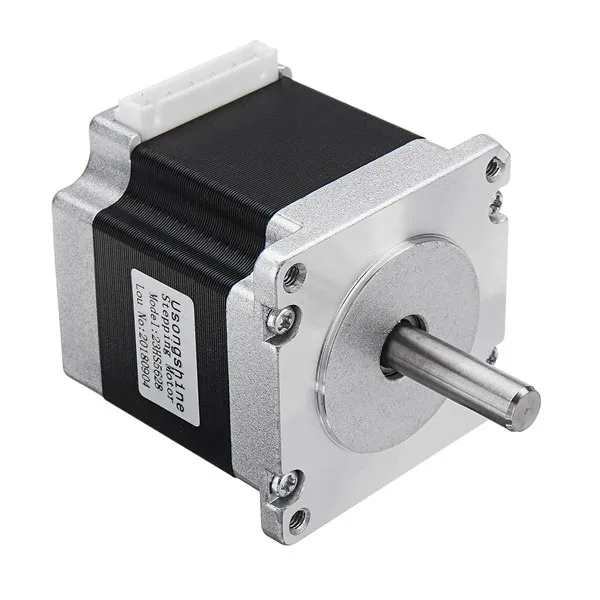

NEMA 23 Bipolar Stepper Motor - 2.8 A, 6.35 mm Shaft - Image 6

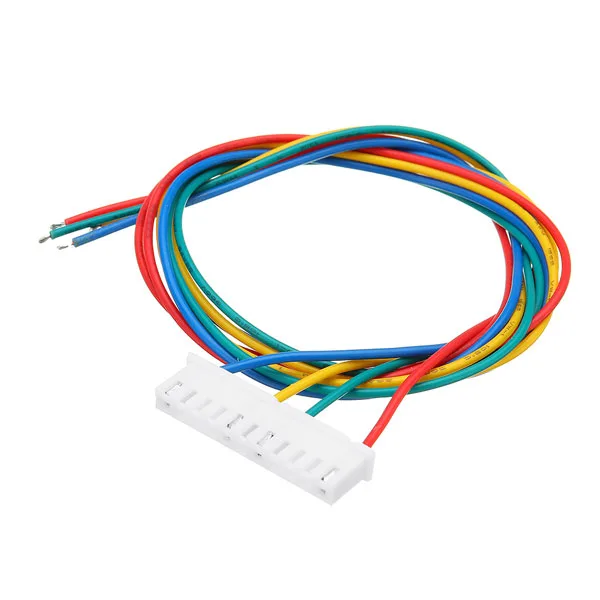

NEMA 23 Bipolar Stepper Motor - 2.8 A, 6.35 mm Shaft - Image 7

SKU 1606-23HS5628Item type: Assembled,

Description

Ideal for use with CNC machines and for any application that needs precise angular movement and rotation speed, such as robotics and servo mechanisms.

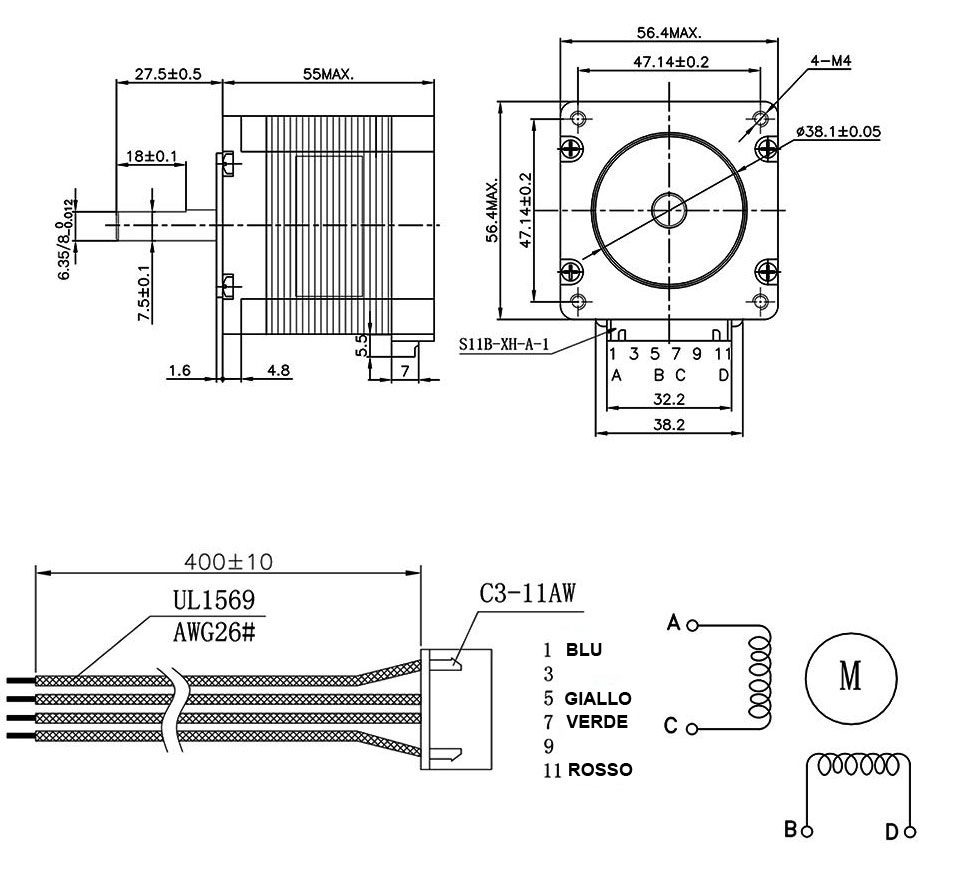

Dimensions and wiring

Technical details

Rated voltage 2.5V
Rated current 2.8A per coil
Torque 12.6Kg-cm
Resistance 0.9 Ω per coil
Inductance 2.5 mH per coil
Steps per revolution 200
Cable length 30cm
Motor height (NEMA 23) 56mm (shaft excluded)
Square flange size (NEMA 23) 56.4 mm
Shaft diameter 6.35 mm D-shaft
Weight 760 g
