OFF-ON Pushbutton Switch 3A – Black

Square off-on pushbutton switch, rating: 3 A - 125 V, dielectric strength: 1500 Vac, contact resistance: 30 Mohm (maximum value), insulation resistance: 100 Mohm
OFF-ON Pushbutton Switch 3A - Black - Image 1
OFF-ON Pushbutton Switch 3A - Black - Image 3

SKU 8220-R1823A/B/125EAN 8219671077576Colour: BlackContact configuration: SPSTHole size: 12 mmLighting: NoneSwitch action: ON-OFFItem type: Buttons & switches

Description

Square off-on pushbutton switch, rating: 3 A – 125 V, dielectric strength: 1500 Vac, contact resistance: 30 Mohm (maximum value), insulation resistance: 100 Mohm. Dimensions: 15x15x38 mm, mounting hole diameter: 11.6 mm, solder terminals.

Technical details

rating 3 A - 125 V
dielectric strength 1500 Vac
contact resistance 30 Mohm (maximum value)
insulation resistance 100 Mohm

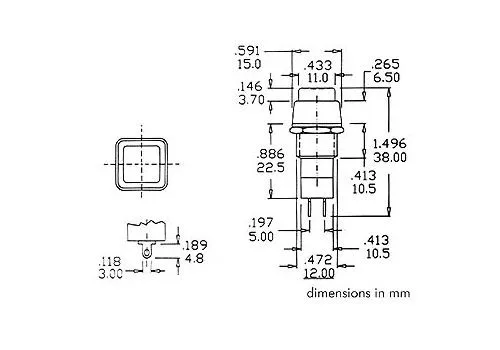

Dimensions 15x15x38 mm
mounting hole diameter 11.6 mm, solder terminals
