OFF/ON Pushbutton Switch 3A – Black

Pushbutton switch rated 3 A-125 V, dielectric strength/insulation resistance 1500 Vac/100 Mohm, contact resistance 20 milliohm max, service life (min) 100,000 operations
OFF/ON Pushbutton Switch 3A - Black - Image 1
OFF/ON Pushbutton Switch 3A - Black - Image 3

SKU 4220-R1825ABEAN 8219671011273Contact configuration: SPSTHole size: 12 mmLighting: NoneSwitch action: ON-OFFItem type: Buttons & switches

Description

Pushbutton switch rated 3 A-125 V, dielectric strength/insulation resistance 1500 Vac/100 Mohm, contact resistance 20 milliohm max, service life (min) 100,000 operations. Dimensions: 19.5×38 mm, mounting hole diameter: 11.6 mm, solder terminals.

Technical details

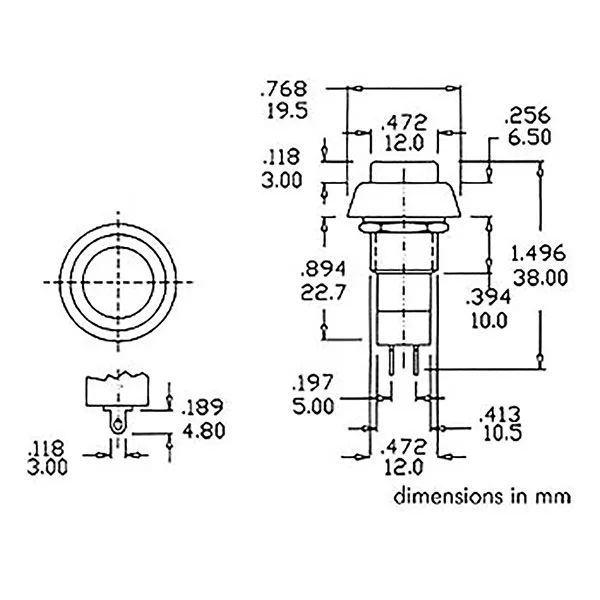

Dimensions 19.5x38 mm
mounting hole diameter 11.6 mm, solder terminals
