ON/OFF switch with red indicator light – 10A/250V

Compact ON/OFF switch with a built-in red LED, so the power state can be seen at a glance.

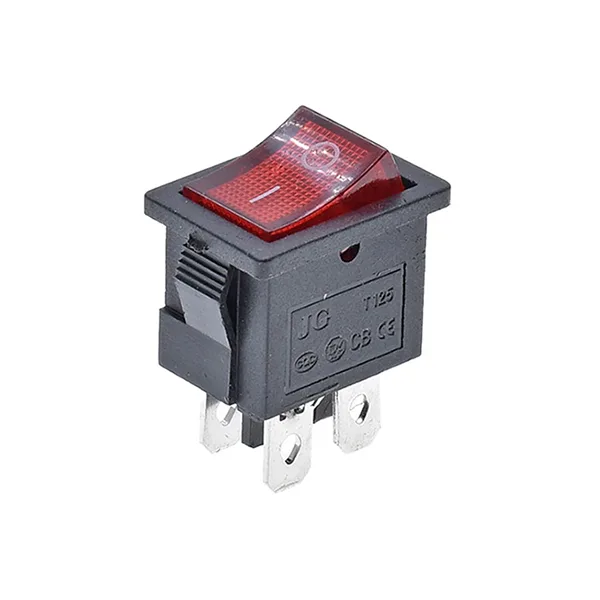

ON/OFF switch with red indicator light - 10A/250V - Image 1

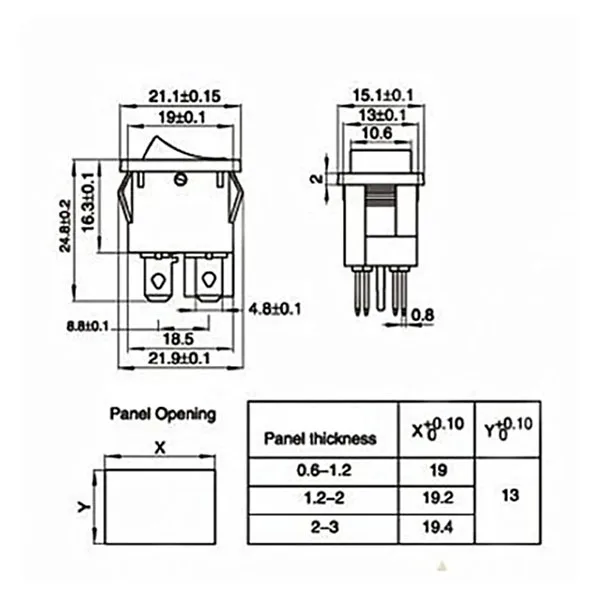

ON/OFF switch with red indicator light - 10A/250V - Image 3

SKU 8300-R1944REDEAN 5410329294311Colour: RedContact configuration: DPSTHole size: 19x13 mmLighting: NeonSwitch action: ON-OFFItem type: Buttons & switches

Description

SPST ON/OFF switch with a built-in red LED indicator that shows the power state at a glance. Rated 10 A / 250 Vac, suitable for mains applications. Average mechanical life of 50,000 cycles. Low contact resistance (< 20 Ω) and high insulation resistance (1000 MΩ).

Dielectric strength > 1500 V for 1 minute and > 3000 V between poles. Reliable operation down to −30 °C. Ideal for switchboards, equipment and electronic devices.

Technical specifications

  • Contact resistance: < 20Ohm Insulation resistance: 1000MOhm Dielectric strength: >1500V: 1 minute – >3000V: between poles

Technical details

Type ON/OFF SPST
Contact rating 10 A / 250 Vac
Average mechanical life 50000, cycles (on-off)
Operating temperature -30
