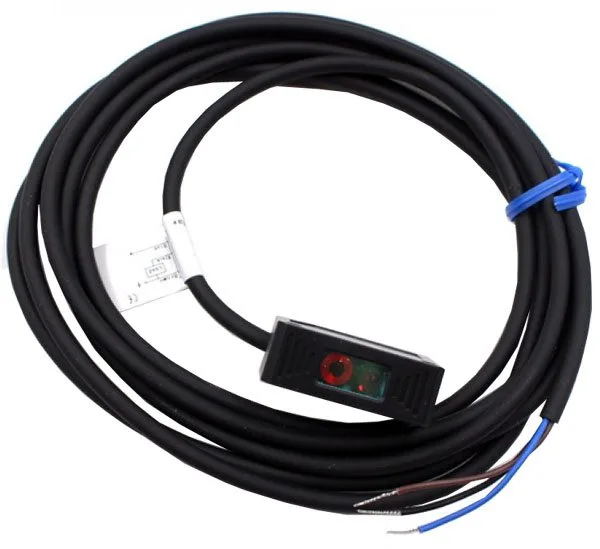

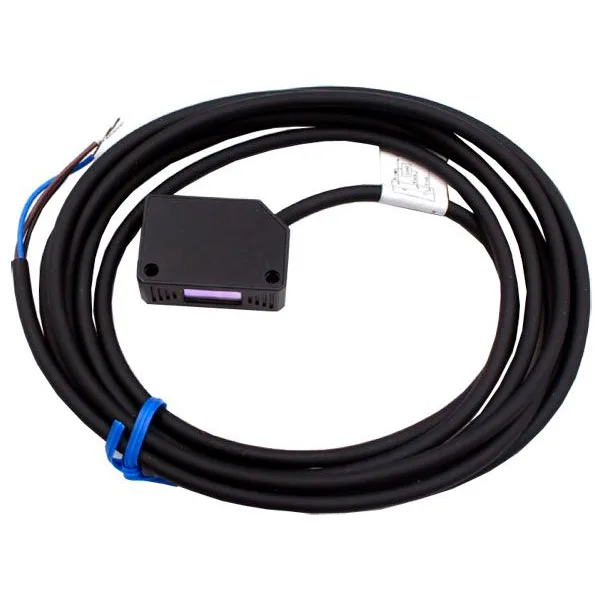

Photoelectric Switch with Visible-Light LASER
Built from a visible-light LASER (emitter) and a photodiode receiver, this photoelectric switch can detect extremely small objects (down to 0.8 mm) with a response time of less than 2 ms
SKU 3085-VLPSSEAN 8219671108478Item type: AssembledSensors
Description
Comprising a visible-light LASER (emitter) and a receiver built around a photodiode, this photoelectric switch can detect extremely small objects (down to 0.8 mm) with a response time of less than 2 ms. It features an open-collector output and can detect an object at a distance between 20 mm and 300 mm (adjustable via trimmer). The package also includes a small screwdriver for adjusting the trimmer. Power supply: 10 VDC to 30 VDC, dimensions (mm): 31x21x11, cable length: about 2 meters.
Technical specifications
- Thanks to the visible-light LASER, it can detect very small objects from 0.8 mm
- The smallest object can be detected through a hole with a diameter of 5 mm
Technical details
| Black wire | open-collector output - max. 100 mA |
|---|---|
| Brown wire | VCC |
| Blue wire | GND |
| Light source | visible-light LASER |
| Output type | open collector |
| Output current (load current) | 0-100 mA |
| Response time | less than 2 ms |
| Detection method | 200 mA inductive |
| Detection distance | from 20 mm to 300 mm (adjustable via trimmer) |
| Power supply | 10 VDC to 30 VDC |
| Current consumption | about 30 mA |
| Operating temperature | -25°C to +55°C |
| Dimensions (mm) | 31x21x11 |
