Potentiometer Joystick with Button

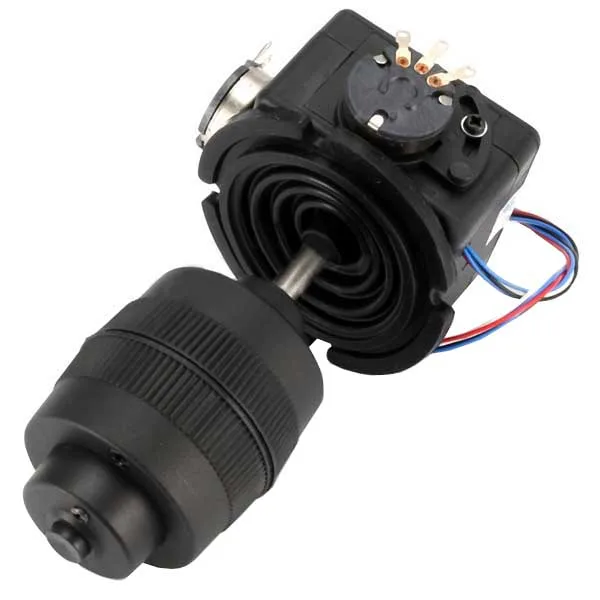

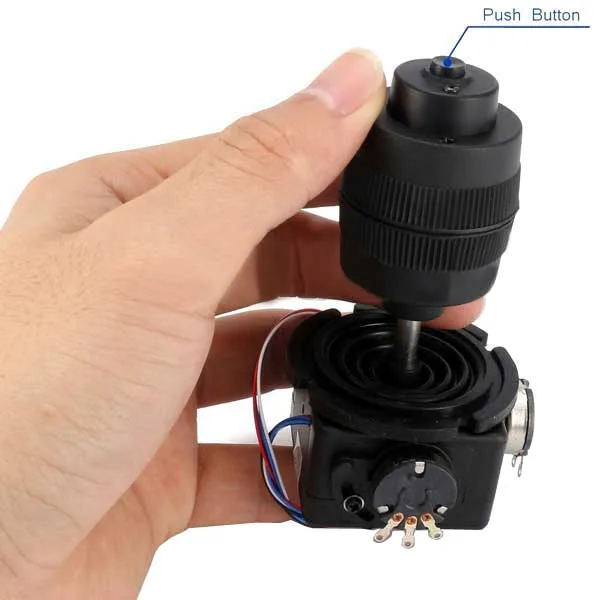

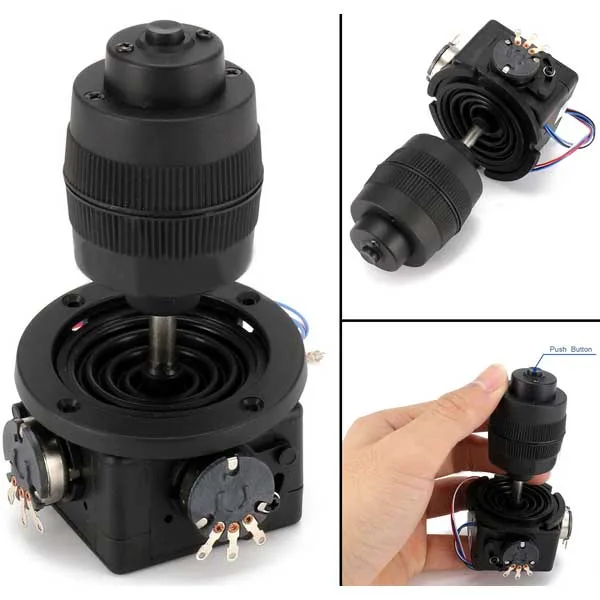

Potentiometer joystick with spring return in the handle, a button on top, and two potentiometers for directional movement (up, down, right and left), one per axis
Potentiometer Joystick with Button - Image 1
Potentiometer Joystick with Button - Image 3
Potentiometer Joystick with Button - Image 4
Potentiometer Joystick with Button - Image 5
Potentiometer Joystick with Button - Image 6

SKU 2846-POTJOYSTICKEAN 8219671090254Colour: BlackLighting: NoneItem type: Joystick, Robotics & gaming

Description

Potentiometer joystick with spring return in the handle, a button on top, and two potentiometers for directional movement (up, down, right and left), one per axis. Dimensions: total height 95 mm, handle height 43 mm, base 40.4×40.4 mm. Particularly suited for use in applications such as robot controllers, CNC, CCTV control, etc.
Technical specifications

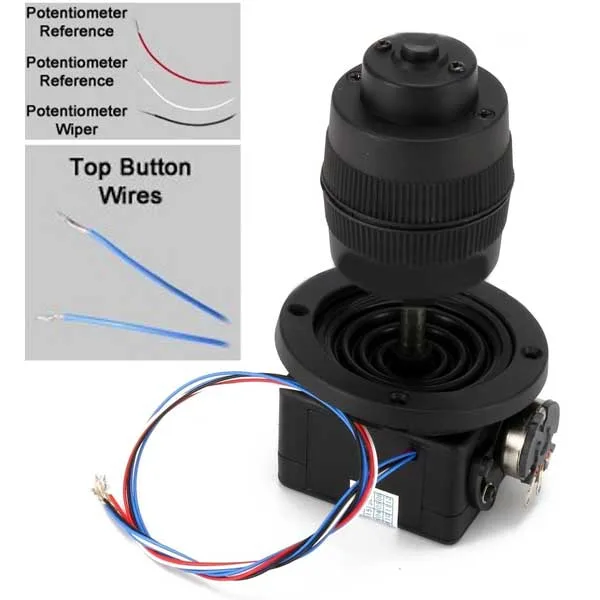

  • Wires:
    – 2 yellow (or 2 blue): normally-open (N.O.) button contacts on top
    – black, red and white: handle potentiometer

Technical details

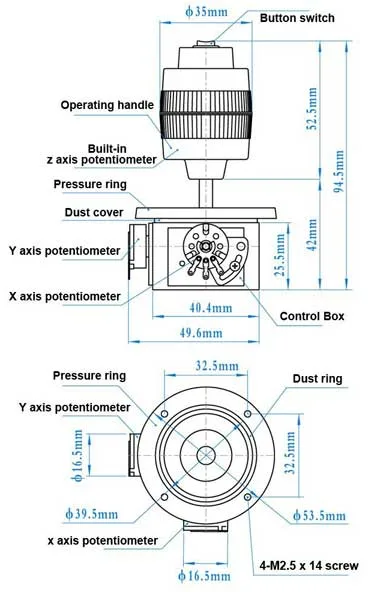

Dimensions total height 95 mm, handle height 43 mm, base 40.4x40.4 mm
Potentiometer (axes and handle) 10 kΩ
Handle button normally open
red and white handle potentiometer
