Power window motor – left-hand

Powerful DC motor, used as a window lift motor in some non-Italian car models (left-hand side)

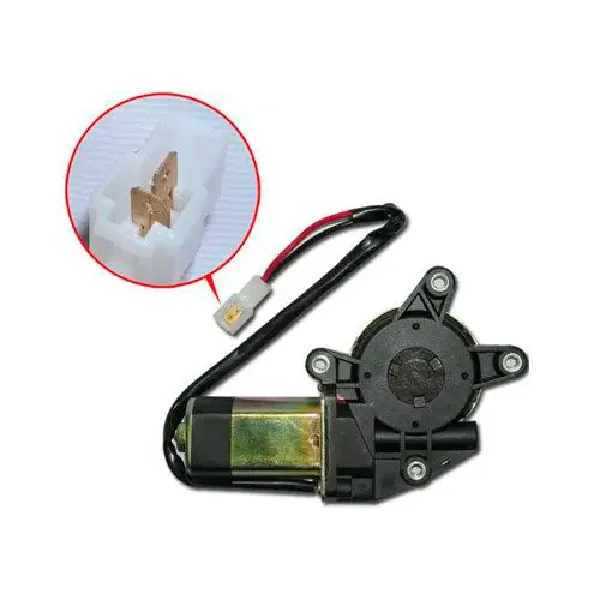

Power window motor - left-hand - Image 1

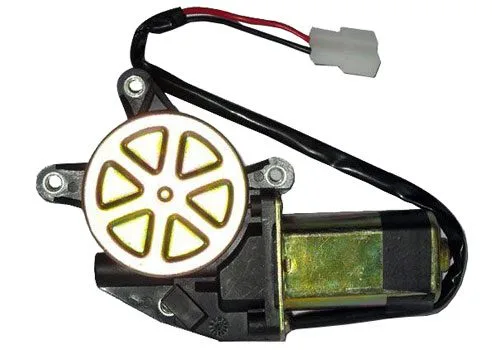

Power window motor - left-hand - Image 3

SKU 1686-MOPWLEAN 8219671068871Item type: Assembled

Description

Powerful DC motor, used as a window lift in some foreign car models (left side). Powered at 12 VDC, it draws less than 3A without load and has a speed of 85 rpm. Torque: 30 kg cm. Weight: 1.8 kg. Particularly suitable for building robots.

Technical specifications

  • Weight: approx. 1 kg

Technical details

Torque 30 kg cm
Weight 1.8 kg
Rated voltage 12 VDC
no load <3 A
under load <7 A
stalled <20 A
No-load speed 85 rpm
Rotation direction according to polarity
Dimensions (mm) 166 x 112 x 35
