Pressure Transducer 0-1.2 MPa

This transducer measures the pressure of non-corrosive gases or liquids

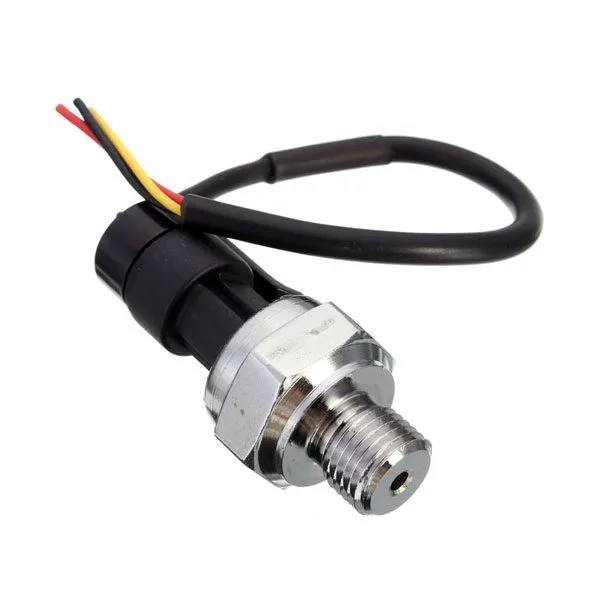

Pressure Transducer 0-1.2 MPa - Image 1

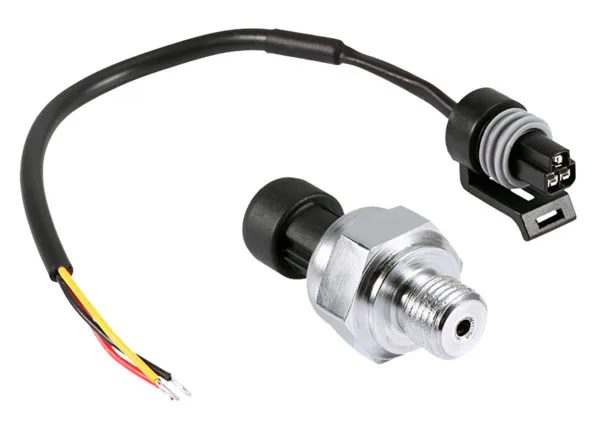

Pressure Transducer 0-1.2 MPa - Image 3

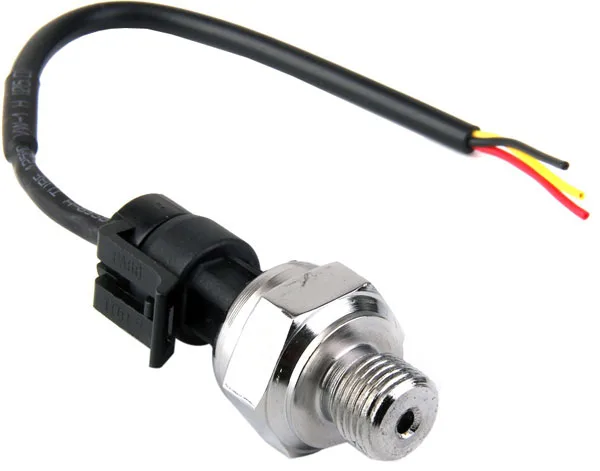

Pressure Transducer 0-1.2 MPa - Image 4

SKU 1606-PTS0161EAN 8219671106580Item type: Assembled

Description

This transducer measures the pressure of non-corrosive gases or liquids. It has a pressure range of 0 to 1.2 MPa, a response time of about 2 ms, analog output, and a G 1/4 inch threaded fitting. The output voltage is directly proportional to the pressure.

Technical Specifications

  • Cable length: about 19 cm

Technical details

Power supply 5 VDC
Output voltage 0.5 to 4.5 VDC
Current consumption <= 10 mA
Pressure range 0 to 1.2 MPa
Maximum pressure 2.4 MPa
Burst pressure 3 MPa
Operating temperature 0°C to +85°C
Measurement error ± 1.5% FSO
Temperature range error ± 3.5% FSO
Response time <= 2 ms
Threaded fitting G 1/4"
yellow output voltage
red positive 5 VDC
black negative
