Raspberry Pi Pico W starter kit

Includes the Pico W, a base board with display and eight plug-in modules: designed for learning MicroPython with no soldering at all.
Raspberry Pi Pico W starter kit - Image 1
Raspberry Pi Pico W starter kit - Image 3

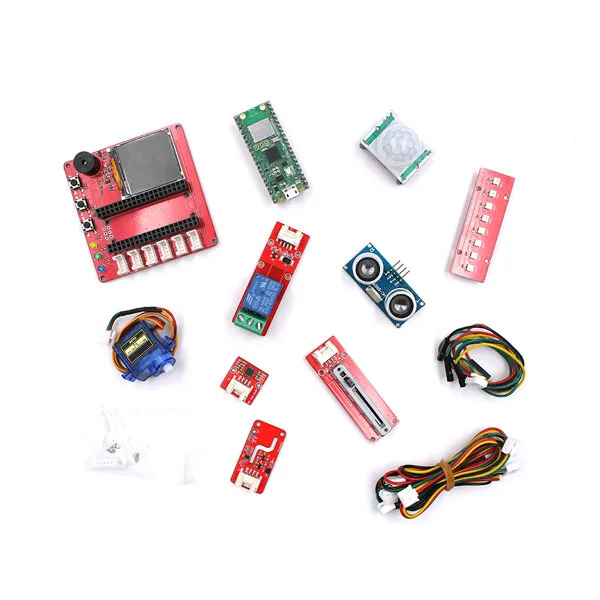

Raspberry Pi Pico W starter kit - Image 4
Raspberry Pi Pico W starter kit - Image 5
Raspberry Pi Pico W starter kit - Image 6

SKU 3085-RAPICOWSTPKEAN 8219671118903Item type: Kit, Starter kit

Description

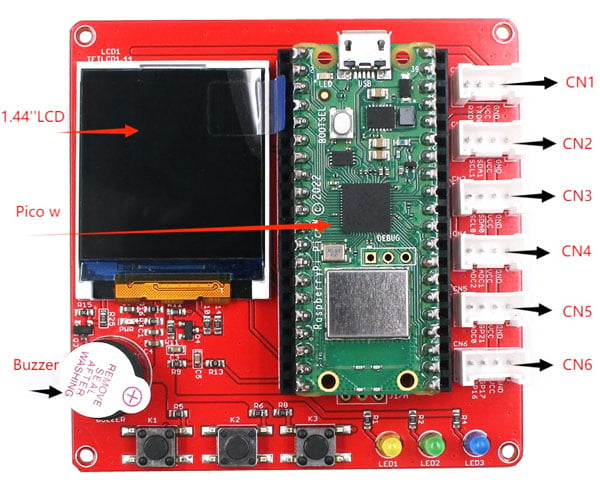

Plug & play starter kit with demoboard for the Raspberry Pi Pico W (included), plus a range of sensors and modules fitted with the standard Mabee connector (Grove compatible). Designed for learning MicroPython with the Raspberry Pi Pico W, the demoboard has an LCD display, three buttons, three LEDs, a buzzer and 6 connectors for the peripheral modules. Detailed tutorials are available to get to grips with the PICO (RP2040) hardware and MicroPython programming quickly and easily.

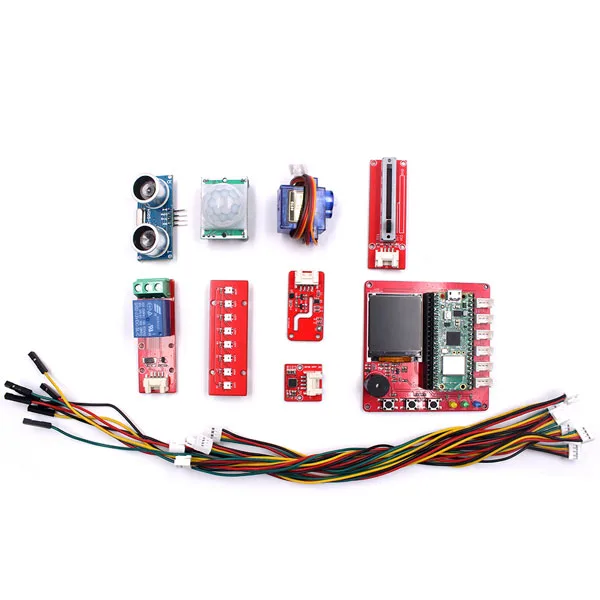

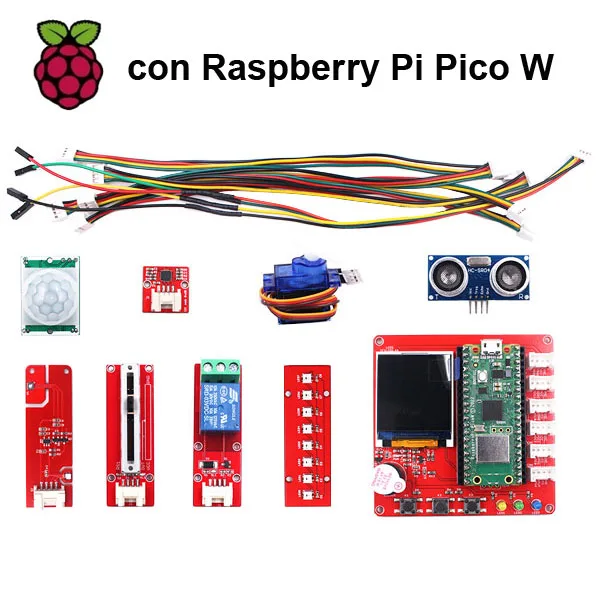

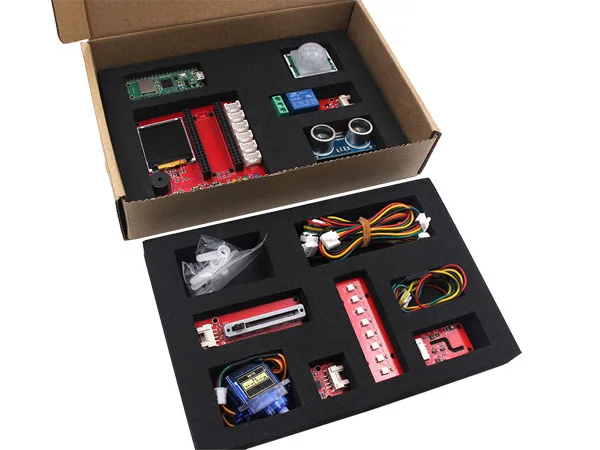

The kit includes:

  • Raspberry Pi Pico W (2.4 GHz 802.11n wireless version)

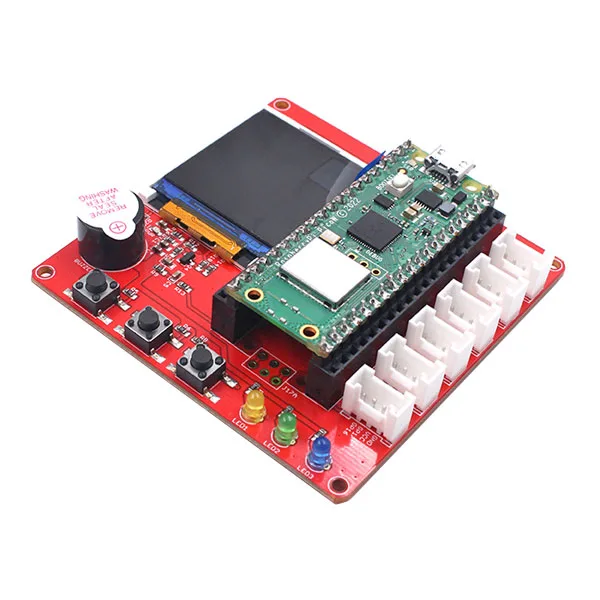

  • PICO Primer expansion board
  • MPU6050 (3-axis accelerometer + 3-axis gyroscope)
  • PIR sensor
  • Relay_10A
  • WS2812_8bit
  • SG90 servo

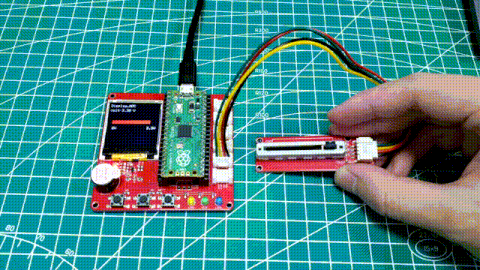

  • Slider potentiometer

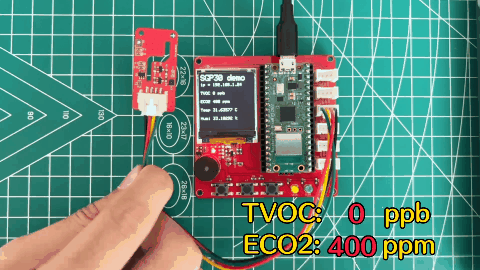

  • TVOC and eCO2 sensor
  • Ultrasonic sensor

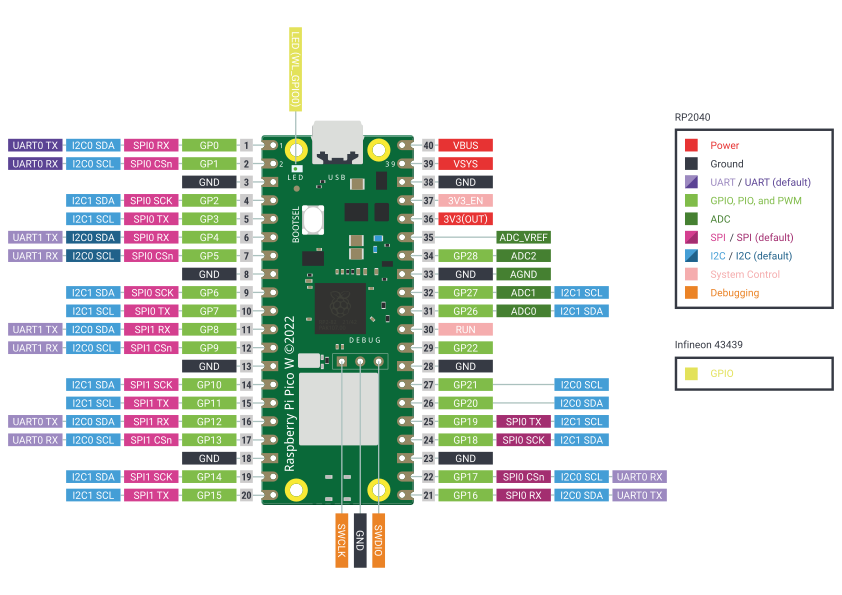

The Pico and Pico W pinouts are essentially compatible, so most of the kit’s hardware and demos are the same for both.
Raspberry Pi Pico W technical specifications
  • RP2040 microcontroller chip designed by the Raspberry Pi Foundation (in the UK)
  • 264 kB of SRAM and 2 MB of on-board Flash memory
  • 2.4 GHz 802.11n Wi-Fi interface
  • USB 1.1 host and device support
  • Low-power sleep and dormant modes
  • Drag & drop programming
  • 26 multi-function GPIO pins
  • 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16 controllable PWM channels
  • Accurate clock and timer
  • Temperature sensor
  • Accelerated floating point libraries on-chip
  • Power supply: 5 Volts through the micro USB connector, 1.8 to 5.5 VDC through the VSYS pin

click on the image to enlarge
Documentation and useful links

Technical details

Processor dual-core ARM Cortex M0+, clock up to 133 MHz
Temperature range -20°C to +70°C
Dimensions (mm) 51x21x12
