Red mini pushbutton 12 mm

Normally open contact rated 1 A at 12 V, with a 12 mm mounting hole and solder terminals; weighs 3.5 grams.
Red mini pushbutton 12 mm - Image 1

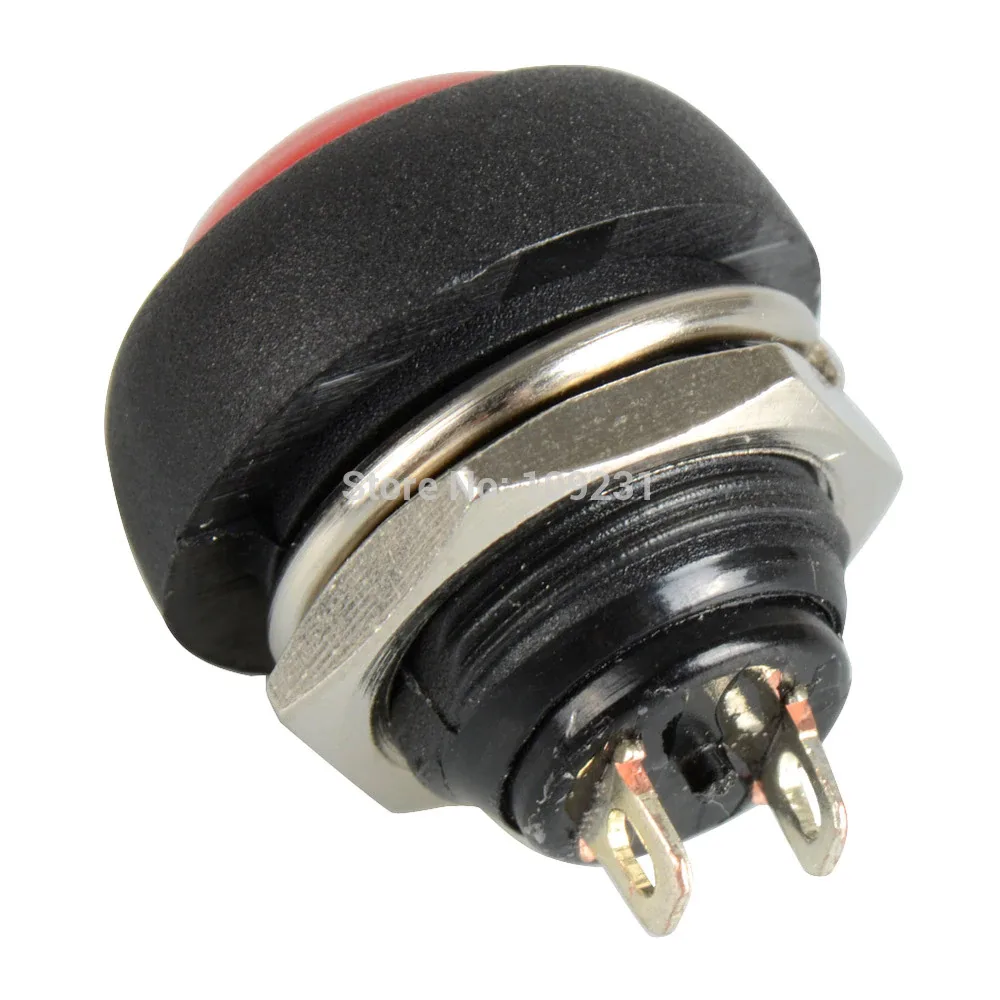

Red mini pushbutton 12 mm - Image 3

SKU 2846-CH32041EAN 8219671100571Colour: RedContact configuration: SPSTHole size: 12 mmLighting: NoneSwitch action: (ON)-OFFItem type: Buttons & switches

Description

Panel-mount mini pushbutton. Colour: red, contact type: normally open, max. current: 1 A – 12 V, contact resistance: <50 Mohm, insulation resistance: >100 Mohm, operating temperature: -25°C to +85°C. Maximum dimensions (mm): 21.6×17.6, mounting hole diameter: 12 mm, solder terminals, weight: 3.5 grams.



Technical details

Colour red
contact type normally open
max. current 1 A - 12 V
contact resistance <50 Mohm
insulation resistance >100 Mohm

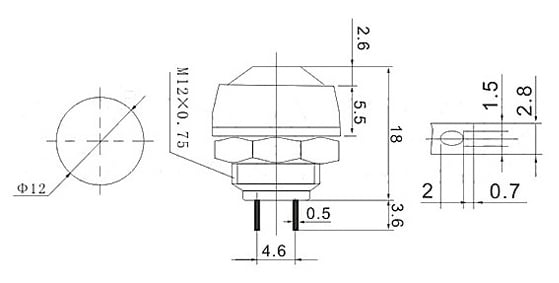

operating temperature -25°C to +85°C. Maximum dimensions (mm): 21.6x17.6
mounting hole diameter 12 mm, solder terminals
weight 3.5 grams
