Red pushbutton 16 mm

Normally open contact rated 3 A at 250 Vac, with a 16 mm mounting hole and solder terminals; weighs 5 grams.

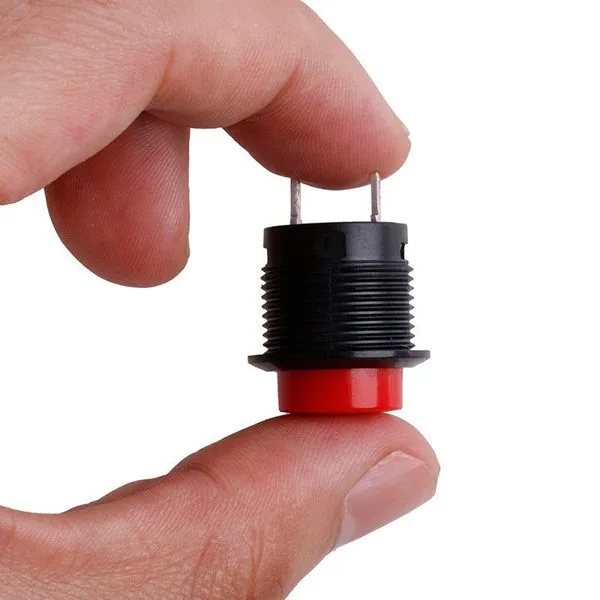

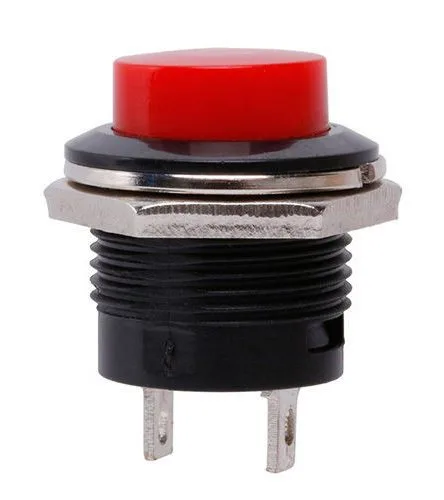

Red pushbutton 16 mm - Image 1
Red pushbutton 16 mm - Image 3
Red pushbutton 16 mm - Image 4
Red pushbutton 16 mm - Image 5
Red pushbutton 16 mm - Image 6

SKU 2846-CH32036EAN 8219671100601Colour: RedContact configuration: SPSTHole size: 16 mmLighting: NoneItem type: Buttons & switches

Description

Panel-mount pushbutton. Colour: red, contact type: normally open, max. current: 3 A – 250 VAC, contact resistance: 50 Mohm, insulation resistance: 100 Mohm, operating temperature: -25°C to +55°C. Overall dimensions (mm): 25×16, mounting hole diameter: 16 mm, solder terminals, weight: 5 grams.



Technical details

Colour red
contact type normally open
max. current 3 A - 250 VAC
contact resistance 50 Mohm
insulation resistance 100 Mohm

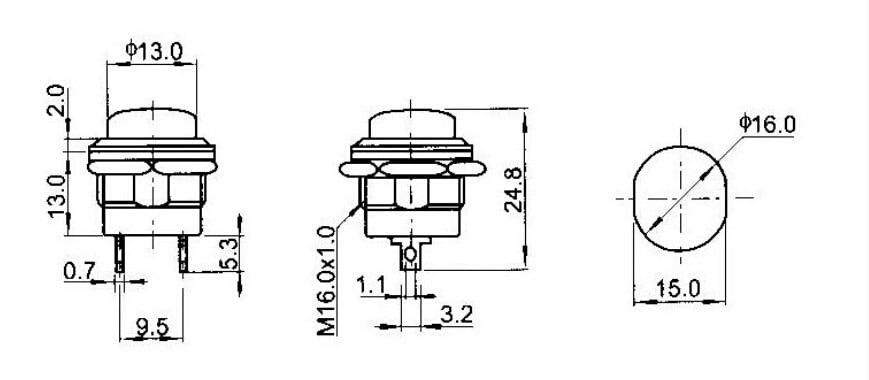

operating temperature -25°C to +55°C. Overall dimensions (mm): 25x16
mounting hole diameter 16 mm, solder terminals
weight 5 grams
