RIAA Phono Preamplifier Kit for Moving Magnet Cartridges

RIAA phono preamplifier for turntables with MM cartridges: it boosts the signal and gives your vinyl records back their original sound quality, with clear, accurate audio.

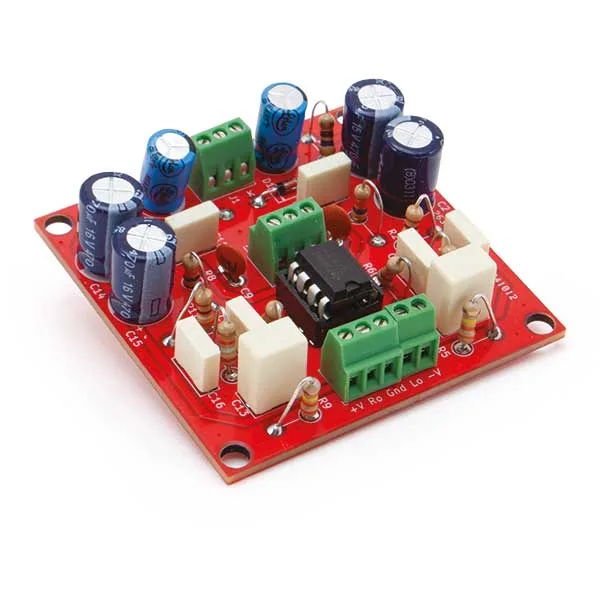

RIAA Phono Preamplifier Kit for Moving Magnet Cartridges - Image 1

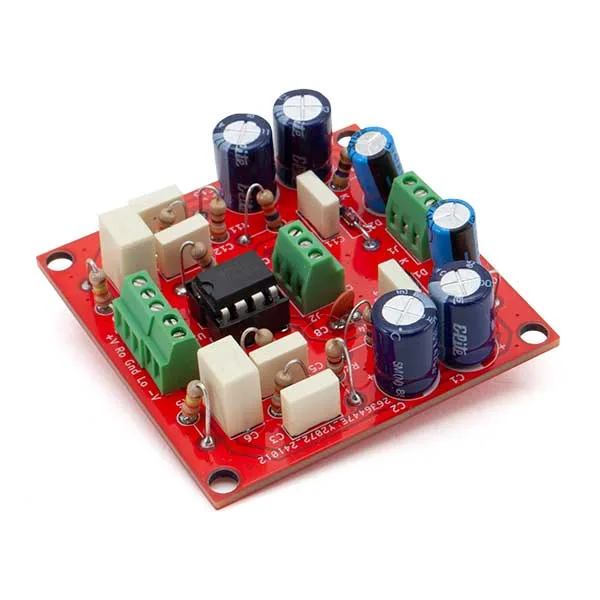

RIAA Phono Preamplifier Kit for Moving Magnet Cartridges - Image 3

SKU 7100-FK036EAN 5410329216283Item type: Assembled, Kit,

Description

Get the best out of your turntable with this RIAA phono preamplifier for MM (Moving Magnet) cartridges, designed to restore the correct equalisation of vinyl records. This MM cartridge RIAA phono preamplifier boosts the weak signal coming from the cartridge and applies the RIAA equalisation curve, compensating the low and high frequencies for faithful, detail-rich reproduction.

With a gain of 42 dB at 1 kHz and a bandwidth covering 20 Hz to 20 kHz, this MM cartridge RIAA phono preamplifier delivers excellent, accurate audio quality. The dual supply of 9 V to 12 V and the maximum draw of 16 mA per channel make for an efficient, dependable board.

Its compact size makes it easy to fit into your audio setup without compromising performance, for crystal-clear sound in a minimal footprint.

Soldering is required to build the kit. The kit is supplied complete with assembly instructions.
Solder-it-yourself kit

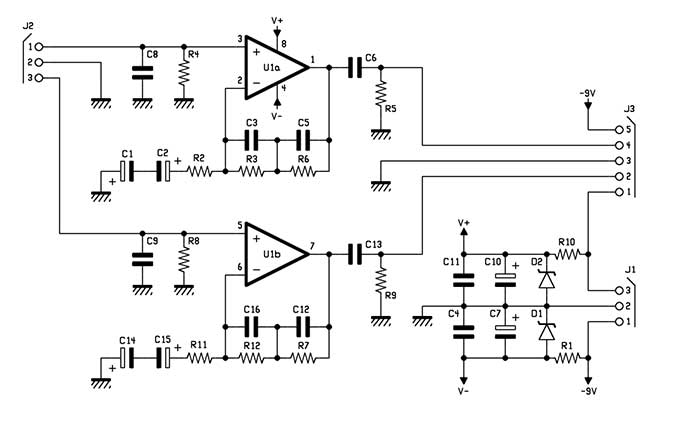

Circuit diagram
RIAA phono preamp for turntables with MM cartridges, dual power supply, 42dB gain

Technical details

Power supply dual, 9V to 12V (sold separately)
Maximum draw 16 mA per channel
Bandwidth 20 Hz - 20 kHz
Gain approx. 42 dB at 1 kHz
Dimensions 50x50x15mm
Weight 23 grams
