Robot Chassis Set with Wheels, Motors and Battery Holder

Robot base made up of a clear acrylic body, two gearmotors, two encoder discs (sensor not included), two 65 mm diameter wheels with 26 mm wide soft rubber tyres, a ball caster, a holder for 4 x 1.5 V AA batteries, a switch, screws, nuts and spacers.

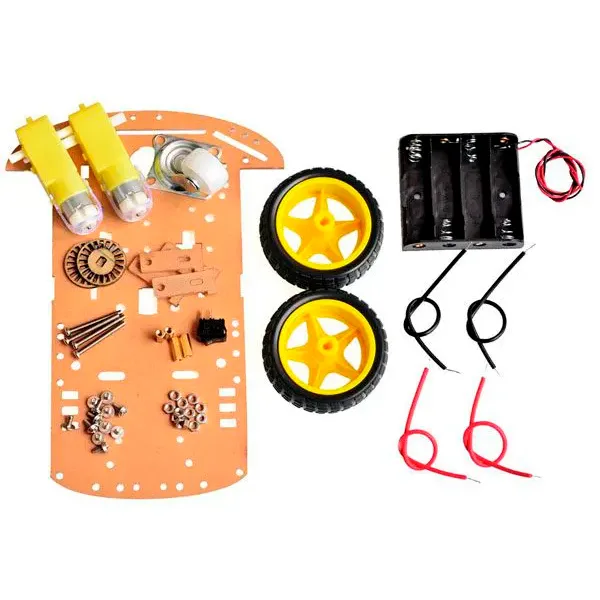

Robot Chassis Set with Wheels, Motors and Battery Holder - Image 1

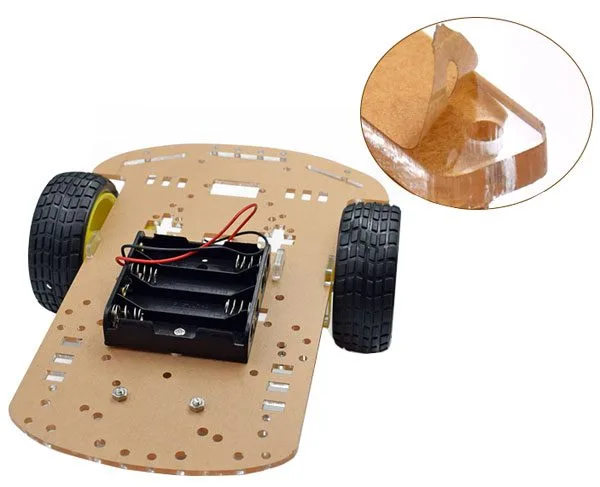

Robot Chassis Set with Wheels, Motors and Battery Holder - Image 3

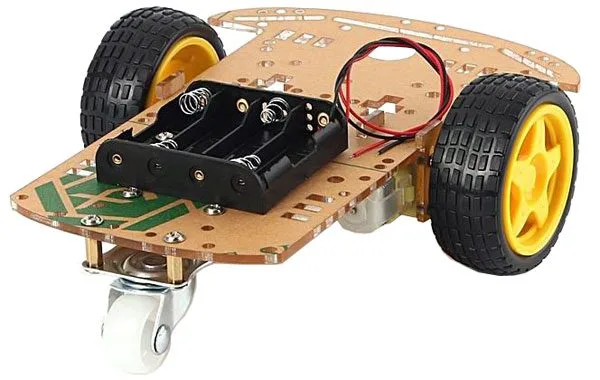

Robot Chassis Set with Wheels, Motors and Battery Holder - Image 4

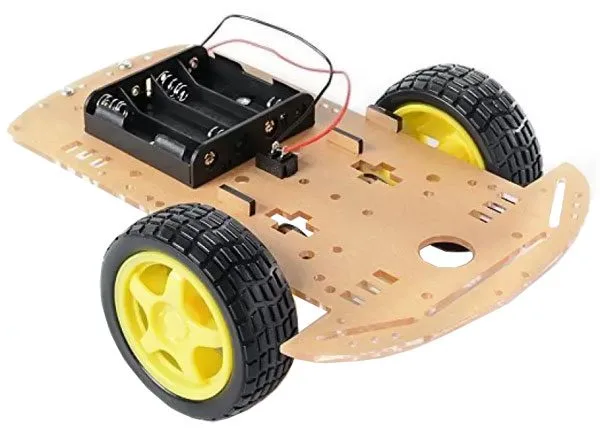

Robot Chassis Set with Wheels, Motors and Battery Holder - Image 5

SKU 1606-ROBOTCHASSEAN 8219671109420Item type: Assembled

Description

Robotics base made of a transparent acrylic body, two gear motors, two encoder disks (without detector), two 65 mm diameter wheels with soft rubber tires 26 mm wide, ball caster, battery holder for 4 AA 1.5 V batteries, switch, screws, nuts, and spacers.

Technical details

Material transparent acrylic
Gear motor power supply 3 to 9 VDC - 400 mA
Gear motor speed 200 rpm (motors powered at 6 VDC)
Base dimensions (mm) 212x151x2
Weight 253 grams
