Servo motor 13 kg•cm, metal gears, 180°

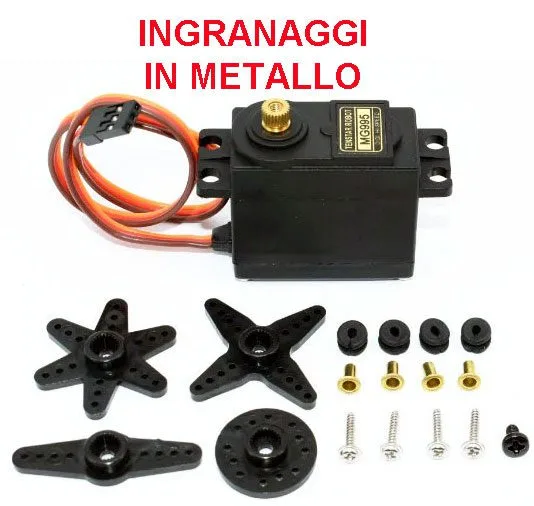

Analogue servo with metal gears, accessories included
Servo motor 13 kg•cm, metal gears, 180° - Image 1
Servo motor 13 kg•cm, metal gears, 180° - Image 3

SKU 7300-SERVO213EAN 8219671019330Item type: Assembled

Description

Analogue servo with metal gears, accessories included. Supply: 4.8 Vdc to 6 Vdc, torque: 13 kg•cm (4.8V) – 15 kg•cm (6V), rotation: 180°, speed at 4.8V: 0.20 sec/60° no load, speed at 6V: 0.16 sec/60° no load. Dimensions (mm): 40.6×39.5×20, weight: 55 grams, operating temperature: 0°C to +55°C.

CONNECTIONS

Technical details

Supply 4.8 Vdc to 6 Vdc
torque 13 kg•cm (4.8V) – 15 kg•cm (6V)
rotation 180°
speed at 4.8V 0.20 sec/60° no load
speed at 6V 0.16 sec/60° no load

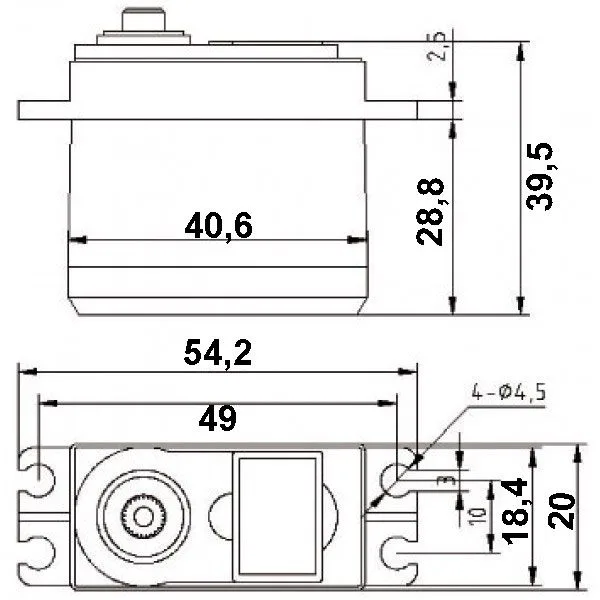

Dimensions (mm) 40.6x39.5x20
weight 55 grams
operating temperature 0°C to +55°C
