Single-pole pushbutton switch

ON/(ON) SPDT pushbutton switch, contact rating 3A/120Vac
Single-pole pushbutton switch - Image 1
Single-pole pushbutton switch - Image 3
Single-pole pushbutton switch - Image 4

SKU 8220-8701EAN 5410329267803Colour: BlackContact configuration: SPDTHole size: 6 mmLighting: NoneSwitch action: ON-(ON)Item type: Buttons & switches

Description

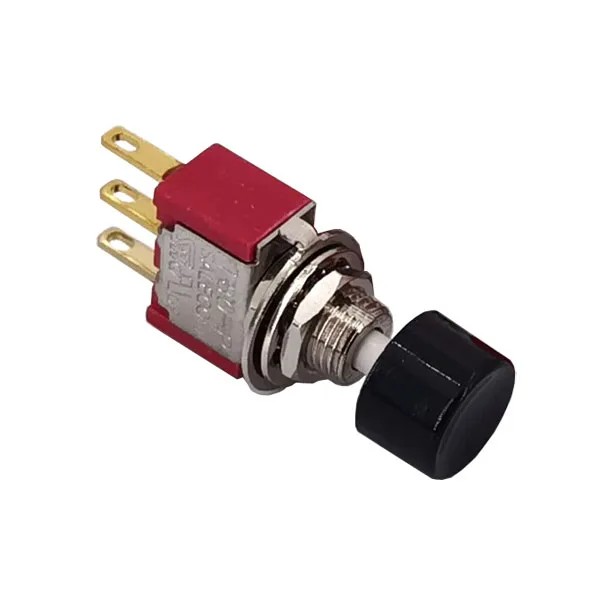

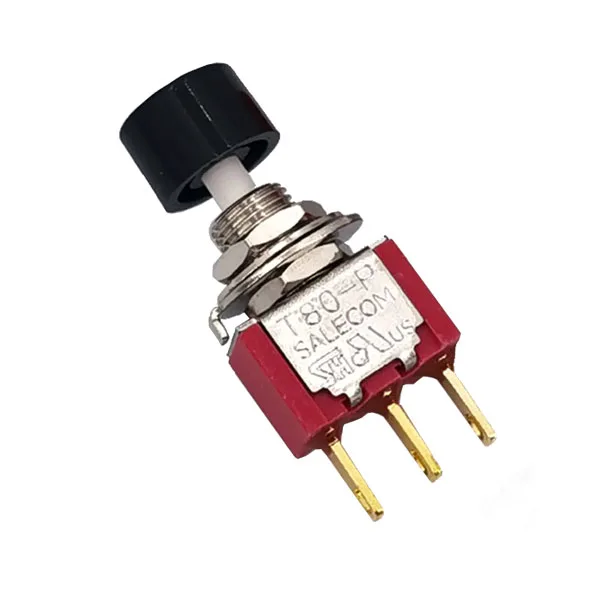

ON/(ON) SPDT pushbutton switch, contact rating 3A/120Vac. Mounting hole: 6.2mm diameter, dimensions: 28.5×18.8×6.9mm. Solder terminals.
​Technical specifications
  • Switching position:
    • 1-3: ON
    • 1-2: (ON)
  • Contact rating:
    • 3 A with resistive load @ 120 Vac or 38 Vdc
    • 0.4 VA, 20 Vac or Vdc max.
  • Solder terminals

Technical details

Mounting hole 6.2mm diameter
dimensions 28.5x18.8x6.9mm
Average life of electrical parts 50,000 cycles at full load
Contact resistance initial maximum 10 mohm @ 2-4 Vdc
Insulation resistance 1000 Mohm (minimum)
Dielectric strength 1000 Vrms
Operating temperature from -30°C to +85°C
case diallyl phthalate (DAP)
bushing nickel-plated brass
housing stainless steel
