Soil Moisture Sensor
This moisture sensor can detect whether the soil is too dry or too wet, thanks to an on-board pushbutton switch and a trimmer for adjusting the trigger threshold.
SKU 7100-FK026EAN 8219671088596Item type: Assembled, KitSensors
Description

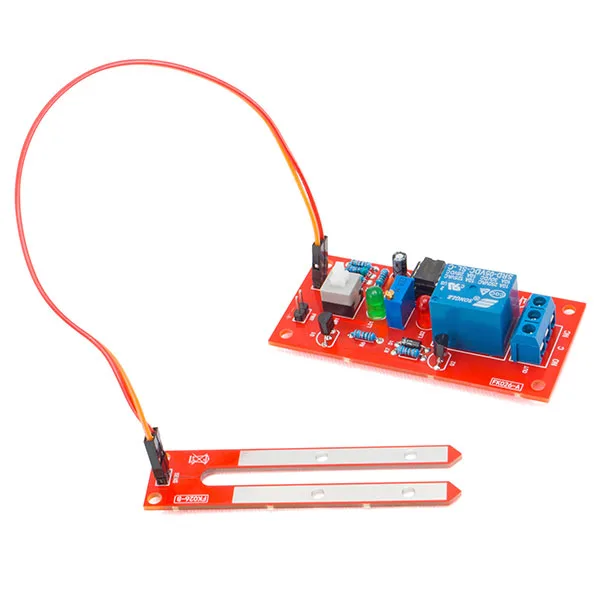

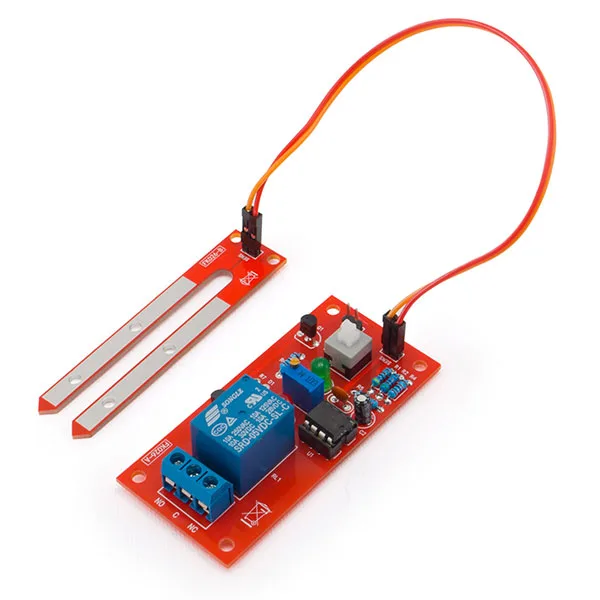

| Moisture sensor made up of two separate parts: a main board and a fork-shaped element to stick into the soil. It offers two different operating modes, detecting whether the soil is too dry or too wet. This is made possible by an on-board pushbutton switch which, depending on its position combined with a trimmer adjustment, activates one of the two operating modes. The board can be used, for example, to trigger an electric pump and start irrigation. Essential for monitoring soil moisture in farming and vegetable-growing, enabling efficient irrigation management and healthier plants. Useful for anyone with a garden or potted plants, ensuring targeted irrigation suited to the plants’ needs.
Soldering is required to assemble the kit version. The kit is supplied complete with assembly instructions. |

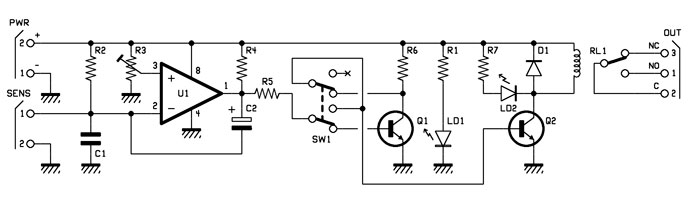

| Circuit diagram |
 |

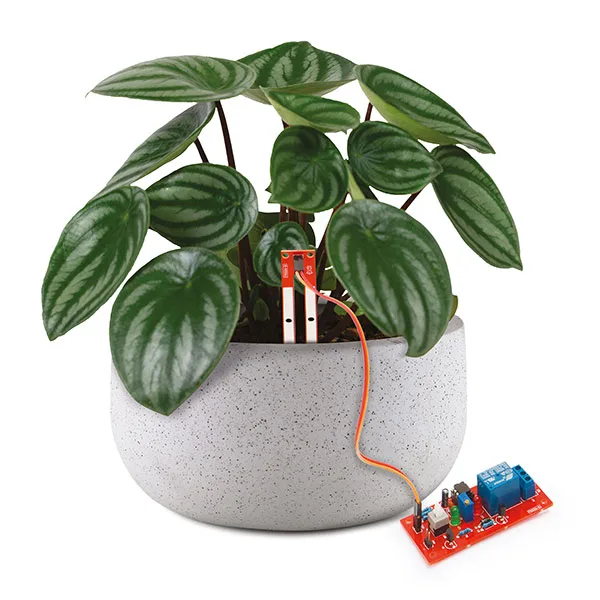

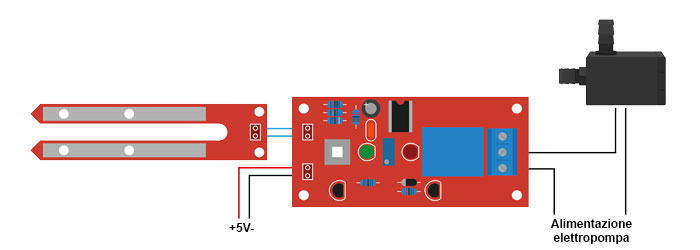

| Example of use |
|
|
Technical details
| Supply voltage | 5 Vdc |
|---|---|
| Maximum current draw | 80 mA |
| Relay output | NC and NO |
| Switchable voltage | 250 V AC |
| Switchable current | 10 A AC |
