Solar Charge Controller 50 A with USB Outputs

This solar charge controller is the ideal way to get the most from your PV system and protect it, at both 12 V and 24 V.

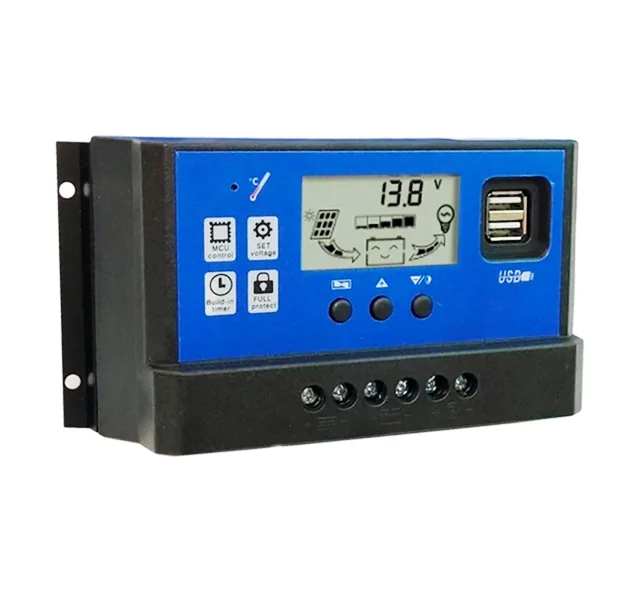

Solar Charge Controller 50 A with USB Outputs - Image 1
Solar Charge Controller 50 A with USB Outputs - Image 3
Solar Charge Controller 50 A with USB Outputs - Image 4
Solar Charge Controller 50 A with USB Outputs - Image 5
Solar Charge Controller 50 A with USB Outputs - Image 6
Solar Charge Controller 50 A with USB Outputs - Image 7

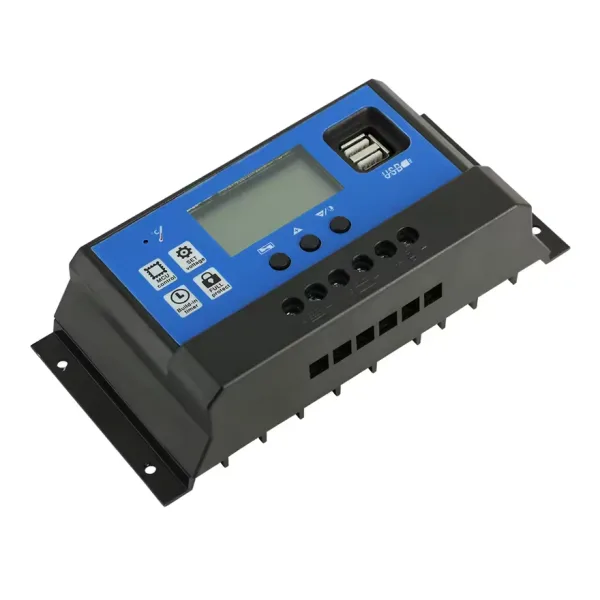

Solar Charge Controller 50 A with USB Outputs - Image 8

SKU 8242-PWMSOLAR50EAN 8219671117210Item type: Assembled

Description

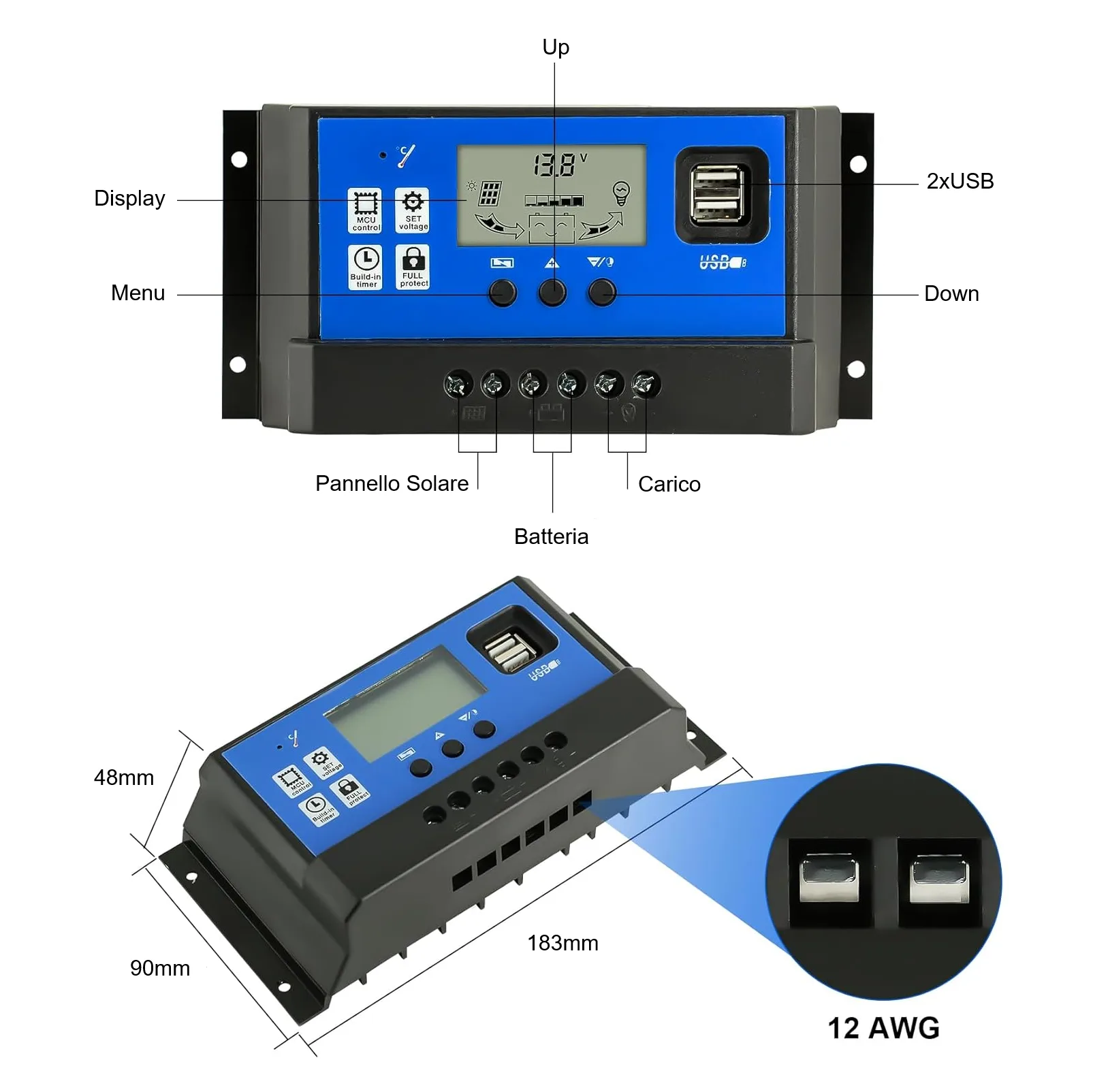

Charge controller for photovoltaic applications, microcontroller driven and able to work automatically at both 12V and 24 V with lead-acid, GEL and AGM batteries. It has a graphic LCD display, two 5 volt / 2.5 A USB outputs, control buttons and screw terminals (for battery, load and solar panel). It feeds the batteries the right amount of current and protects them against over-discharge and overcharge, to make their working life as long as possible.

Warning! use only with 12 and 24 V solar panels.
Technical features
  • Protects the battery against reverse polarity.
  • Goes into protection automatically and shuts down when the load current exceeds the controller rating.
  • Goes into protection in the event of a short circuit.
  • Overload protection.
  • To keep the battery from discharging completely, the controller automatically disconnects the load at a set voltage, which cannot be lower than 10.7 V for a 12 V battery and 21.4 V for 24 V batteries.

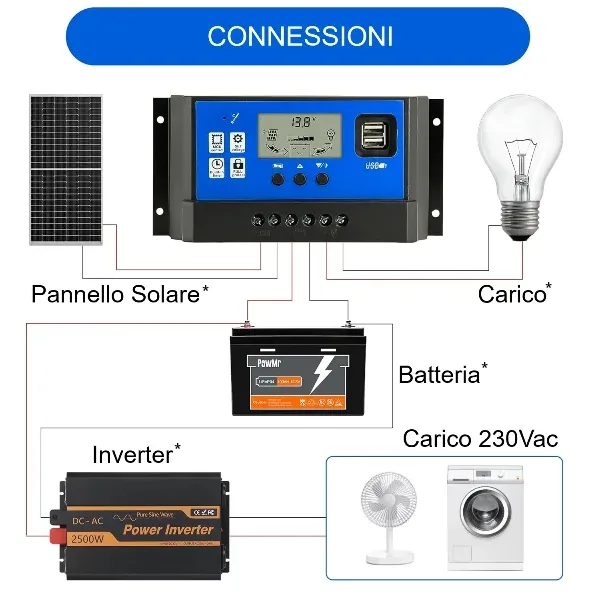

All the devices marked with an asterisk ( * ) must have the same working voltage.
Technical specifications
  • Battery type: compatible with lead-acid batteries (sealed, GEL, AGM)

Technical details

Not compatible with lithium batteries (LiFePO4, Li-ion, LiPo, etc.)
Nominal voltage 12 V / 24 V, automatic detection
Maximum current 50 A
with 12 volt output max. voltage 23 volt
with 24 volt output max. voltage 46 volt
Low voltage disconnect (LDV) 10.7 V (at 12 V) / 21.4 V (at 24 V)
Load reconnect voltage (LVR) 12.6 V (at 12 V) / 25.2 V (at 24 V)
Standby consumption <10 mA

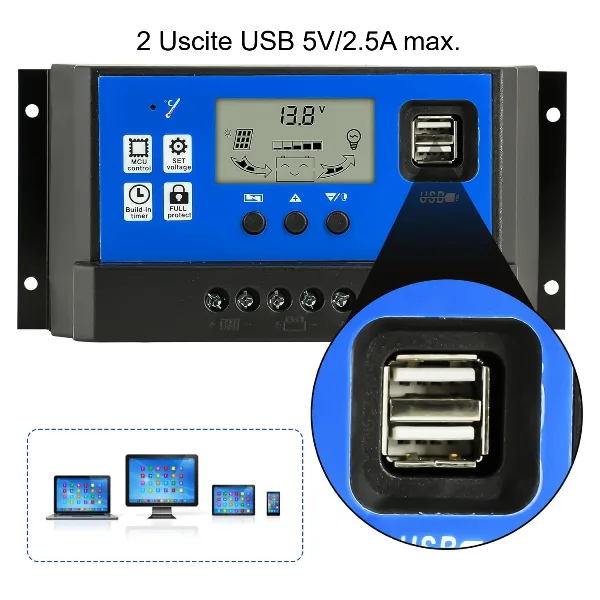

USB outputs 2, 5 volt / 2.5 A max
Operating temperature -35°C to +60°C

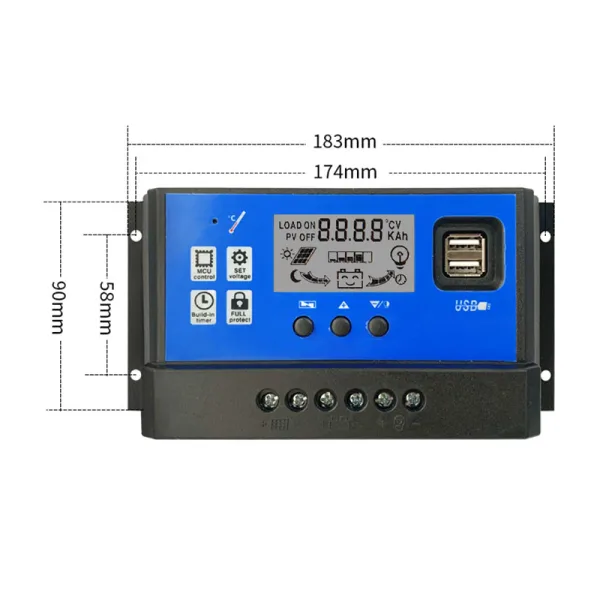

Dimensions (mm) 183x90x48
Weight 250 g
