Solar panel charge controller – MPPT 30 A

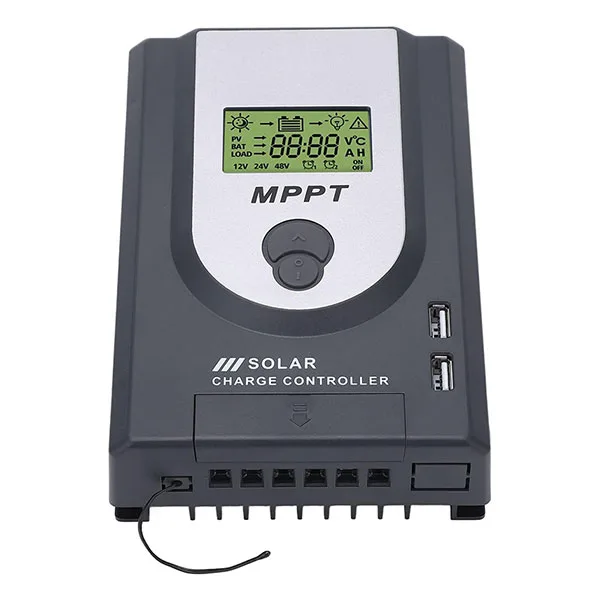

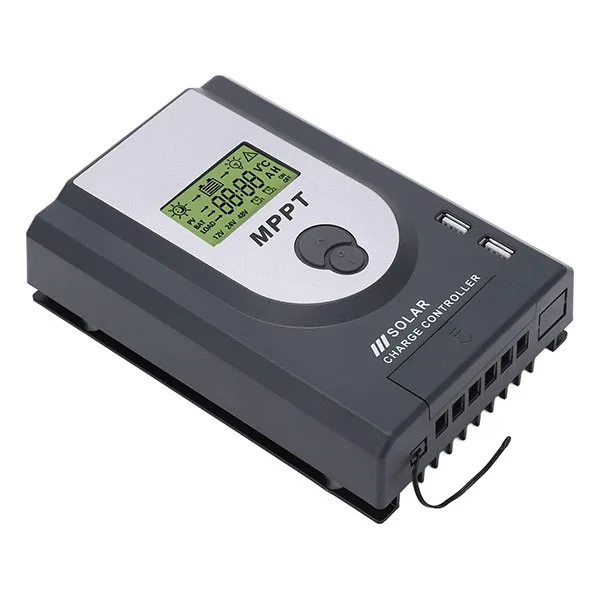

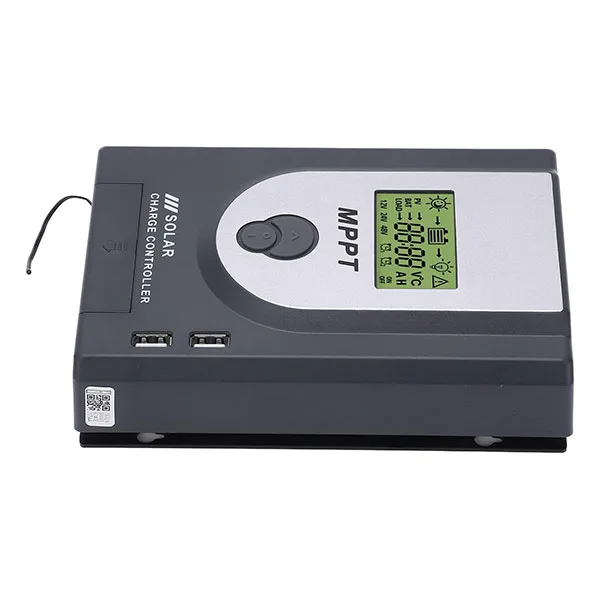

A large LCD display gives you an intuitive interface for keeping an eye on the important system readings: voltage, current, battery state of charge and other diagnostics. There are also two 5V USB outputs, so you can charge electronic devices straight from the controller.

The built-in temperature sensor lets the controller adjust the way it works as the temperature changes, keeping the system at its best efficiency. It also helps protect the battery from overcharging and deep discharge, which lengthens the service life of the battery itself.

The controller is versatile in another way too: it works automatically at either 12V or 24V, recognising the voltage of the photovoltaic system and adapting to it by itself.

With the MPPT charge controller you get the most out of your photovoltaic system: the power produced by the solar panels is optimised and delivered to the batteries as efficiently as possible. That means the best energy yield from your solar system and longer-lasting batteries, for greater reliability and a longer life for the system as a whole.

• MPPT technology: this type of solar charge controller gives the highest energy conversion and works with lead-acid, lithium and GEL batteries. Select the battery type and the controller detects the 12V/24V DC system voltage by itself.
• Equalisation charge voltage: an equalisation charge helps keep all the cells of the battery at a similar state of charge and prevents electrolyte stratification, lead sulphate build-up and other problems that can reduce the capacity and life of the battery.
• Multiple safety protections: the controller has a number of intelligent protections, including reverse polarity, overload, short circuit, reverse flow, overload, low voltage and deep discharge, for complete protection of the battery.

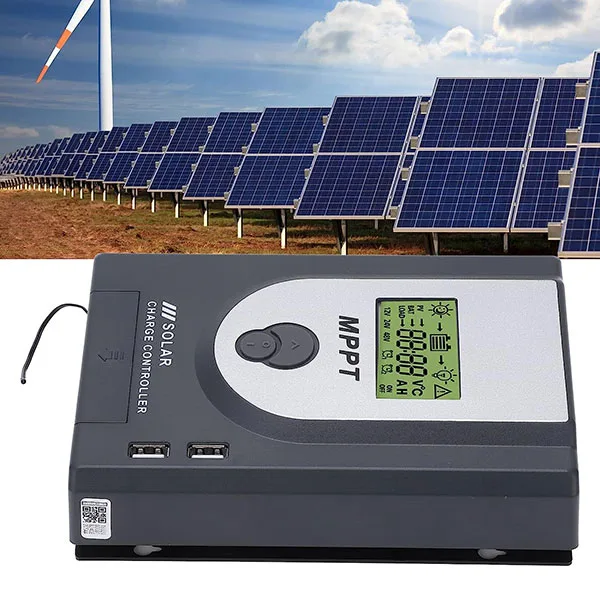

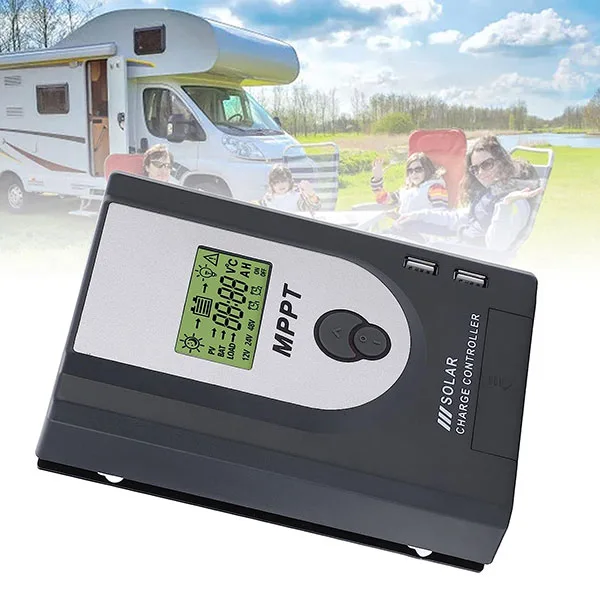

• Highly versatile: the solar charge controller is suitable for domestic energy production, base stations, motorhomes, yachts, boats and other photovoltaic systems.
• High efficiency: the solar charge controller uses a maximum power tracking algorithm that markedly improves the energy efficiency of your system, with a faster response and high tracking efficiency.
• Charging power limit: when the charging current goes above the rated value, the controller automatically reduces the charge so that the solar panel works at the rated charging current.

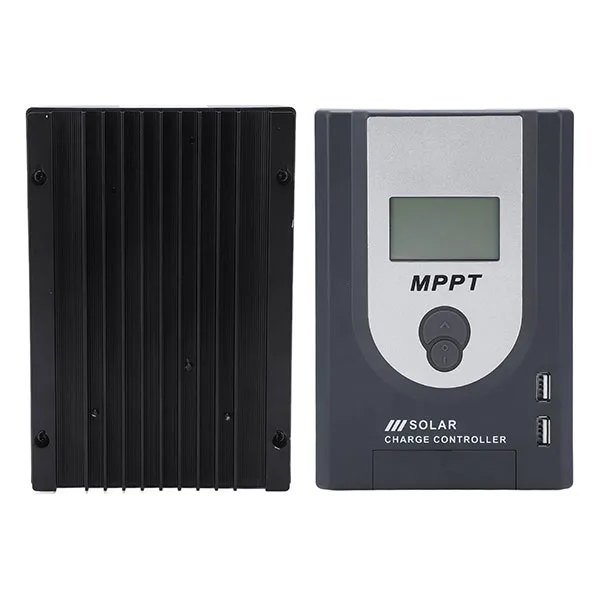

• Temperature sensing: the charge controller has a built-in temperature sensor, so it works steadily even where temperatures are extreme. It needs no external cooling system either: it is designed to work efficiently without forced cooling.

• Absorption charge voltage**: maintenance-free lead-acid battery: 14.4V, GEL: 14.2V, flooded lead-acid battery: 14.6V – Duration: 2 hours
• Float charge voltage**: maintenance-free lead-acid battery, GEL, flooded lead-acid battery: 13.8V
• Low Voltage Recovery (LVR)**: maintenance-free lead-acid battery, GEL, flooded lead-acid battery: 12.6V
• Low Voltage Disconnect (LVD)**: maintenance-free lead-acid battery, GEL, flooded lead-acid battery: 10.8V
• High Voltage Disconnect (HVD): lead-acid battery: 16V
• Light on/off threshold voltage: 5V/10V/15V/20V
• Temperature compensation coefficient: -4mv/°C/2V (25°C)
• Discharge circuit voltage drop: ≤ 0.2V
• LCD display temperature: -20°C ~ +70°C
• Operating temperature: -20°C ~ +55°C
• Operating humidity: ≤ 90% non-condensing
• IP rating: IP30
• Grounding type: positive ground
• Dimensions: 215mm x 145mm x 75mm
• Mounting hole spacing: 133mm x 130mm
• Mounting hole diameter: 5mm
• Terminal wiring: 16mm²/5AWG

Important! The figures marked (**) refer to a system running at 12V and a temperature of 25°C. On a 24V system the values shown have to be doubled to match the specification of the 24V system.

• Charge controller x1
• User manual
