Speed Controller for 1 DC Motor 6-90 V 8A

Compact board that lets you adjust the speed of a DC motor, with a supply between 6 V and 90 V and a maximum current of 8 A (15 A peak), by means of a potentiometer

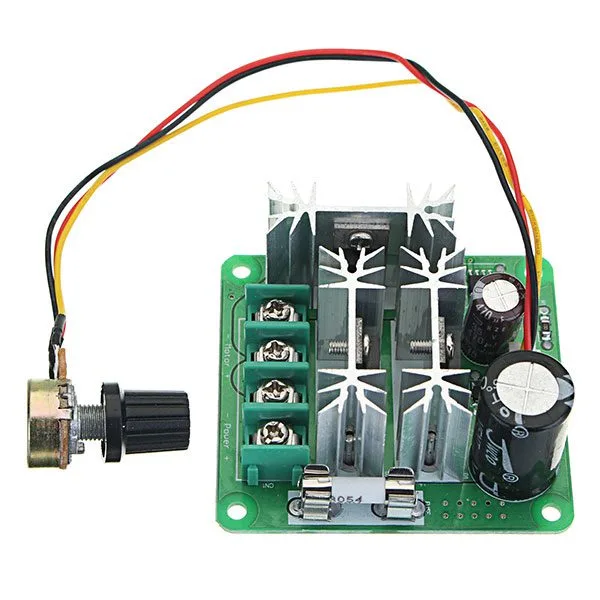

Speed Controller for 1 DC Motor 6-90 V 8A - Image 1

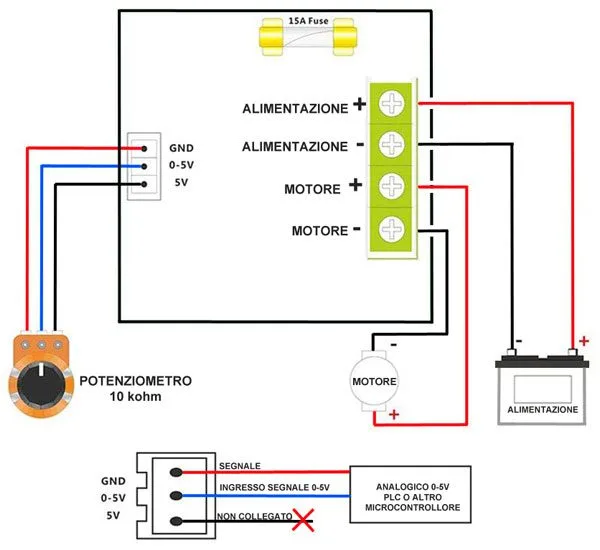

Speed Controller for 1 DC Motor 6-90 V 8A - Image 3

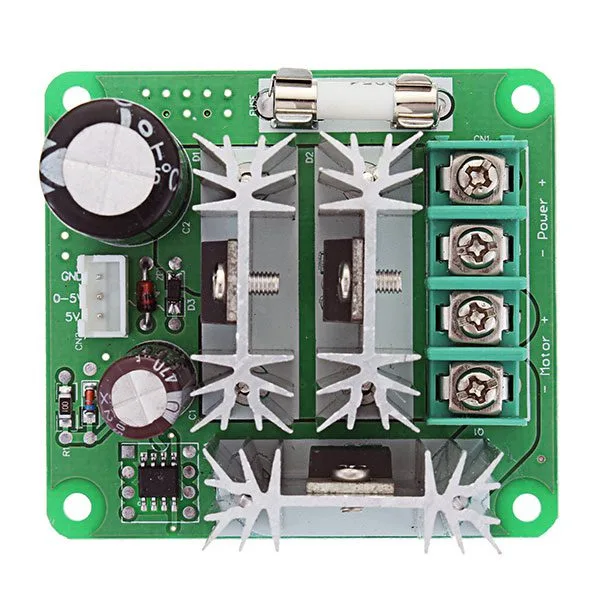

Speed Controller for 1 DC Motor 6-90 V 8A - Image 4

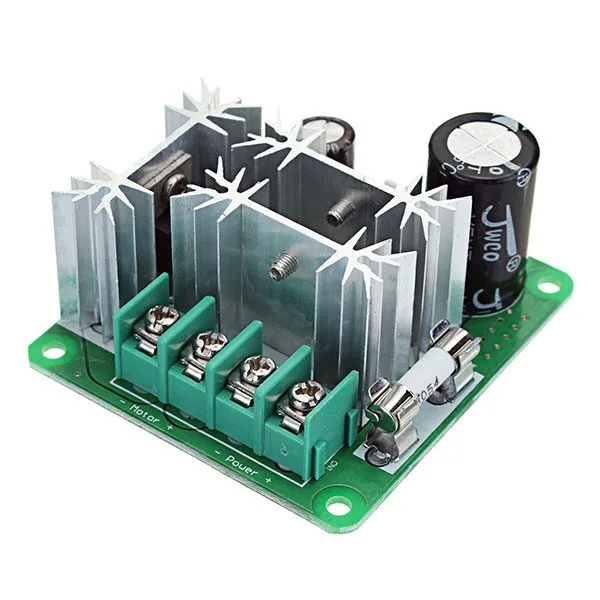

Speed Controller for 1 DC Motor 6-90 V 8A - Image 5

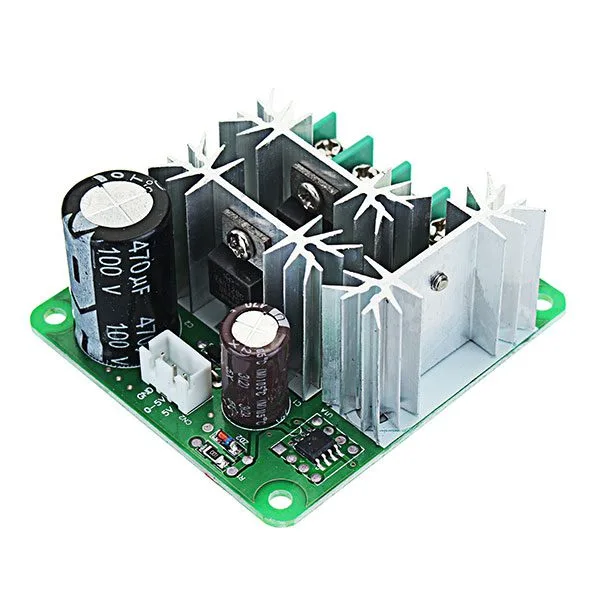

Speed Controller for 1 DC Motor 6-90 V 8A - Image 6

SKU 8300-DMC6V90V15AEAN 8219671114295Item type: Assembled

Description

Compact board that allows you to adjust the speed of a DC motor, with a supply voltage between 6 V and 90 V and a rated current of 8 A (15 A peak), via a potentiometer. It features a screw terminal for power and motor, a 15 A protection fuse, and a potentiometer with knob. Dimensions (mm): 64x59x28.

Technical details

Dimensions (mm) 64x59x28
Board and motor supply from 6 VDC to 90 VDC
Motor rated current 8 A
Max motor current (peak) 15 A
Static current (standby) 0.005 A
Motor power max 1,000 watts
Frequency 16 kHz
Speed adjustment from 0% to 100%
Weight 75 grams
