Three-Cup Wind Speed Sensor with 0-5V Analogue Output, IP68, 10–30V
High-accuracy three-cup wind speed sensor, ideal for measuring wind speed. IP68 protection rating.
SKU 8300-WINDAN05EAN 8219671108492Item type: AssembledWeather sensors
Description

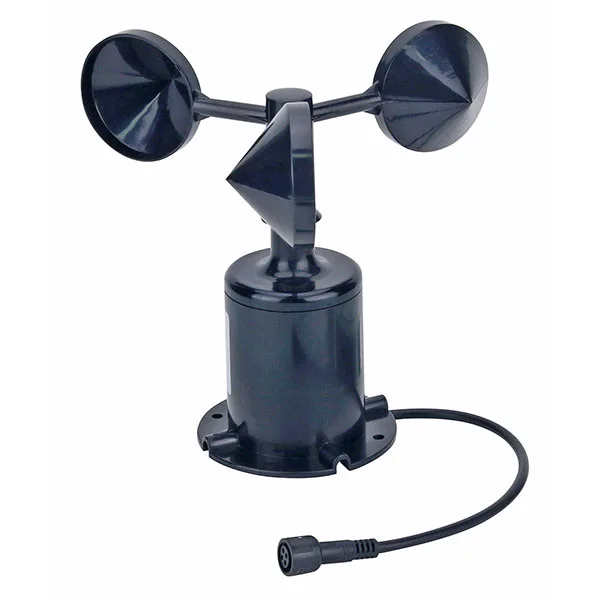

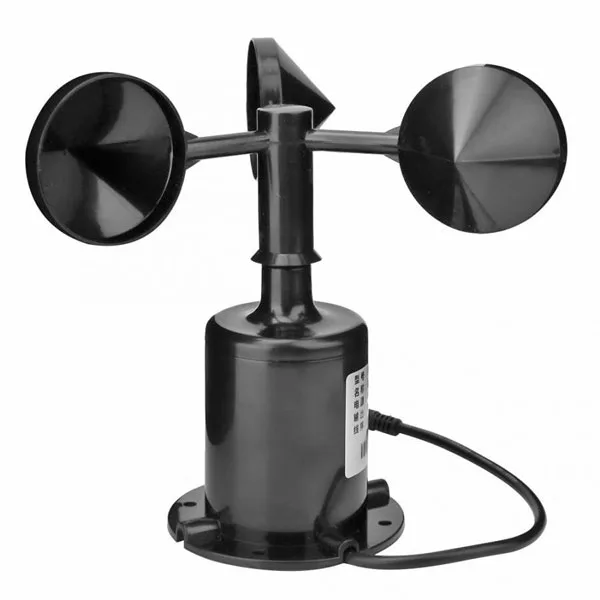

| Wind speed sensor with a three-cup rotor, ideal for continuous wind speed measurement. It runs on a 10 to 30V DC supply and provides an analogue voltage output (0–5V) that is easy to interface with microcontrollers, data acquisition systems and PLCs, returning a signal proportional to the wind speed measured.
The high-strength polycarbonate housing protects it from impact, corrosion and weather, which makes it perfect for long-term outdoor installations. The IP68 protection rating means it is waterproof and sealed against dust and moisture. Thanks to its high-sensitivity bearings and low rotational inertia, the sensor responds quickly to changes in airflow, giving stable, reliable readings even at low speeds (from 0.2 m/s upwards). Ideal for weather stations, IoT applications, wind power installations, precision agriculture and environmental monitoring systems.
|
|
| Technical specifications | |
|
|
| Connections | |
|
|

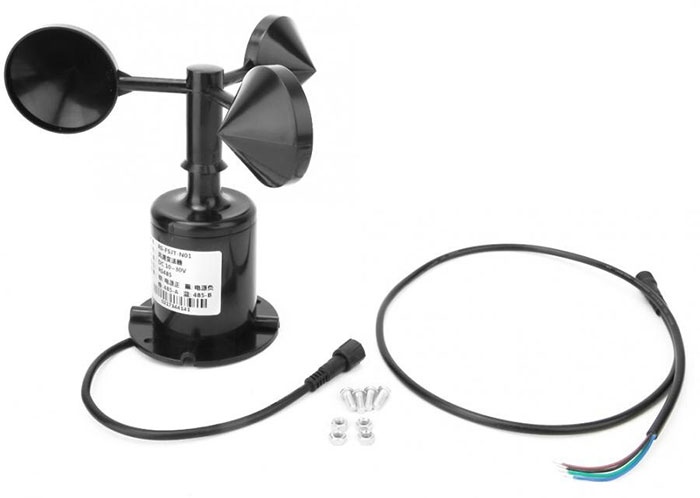

| What is in the box | |
|
Technical details
| Output type | analogue 0–5 V |
|---|---|
| Measuring range | 0 – 70 m/s |
| Minimum detectable speed | 0.2 m/s |
| Resolution | 0.1 m/s |
| Power supply | 10 – 30 V DC |
| Maximum consumption | 1.2 W |
| Housing material | corrosion-resistant polycarbonate |
| Protection rating | IP68 |
| Operating temperature | -20 °C ~ +60 °C |
| Operating humidity | 0% ~ 80% RH |
| Weight | about 340 g |
| Response time | ≤ 2 s |
| Load capability | output resistance ≤ 250 Ω |
| Brown | supply positive (10–30 Vdc) |
