Traffic Light Set for Access Control

Description

Automatic system for controlling pedestrian transit through 1 or 2 gates. It signals suitability for entry with a green light or stop with a red light.
It manages the maximum number of people on the premises, from 2 to 64, with automatic calculation of entries/exits. Ideal for shops and public places where it is necessary to limit the number of people present. In addition to the photocell barriers that make up the gates, it is possible to manually control the traffic lights with switches (included) or by pairing radio-controlled receivers (optional).

Warning: Installation requires connection to the mains voltage and wiring must be carried out exclusively by qualified technical personnel.

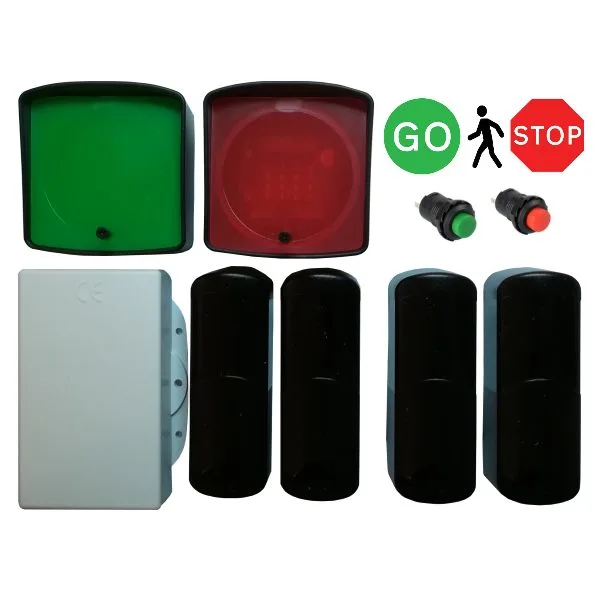

Set Contents

• Control unit for transit/presence management

Power supply 230 VAC – housed in a plastic container with screw terminals for connections to traffic lights, photocells, buttons – Dimensions: 110x80x30 mm

• LED traffic light – red
• LED traffic light – green

High-brightness LED traffic light, settable to steady or flashing light – Dimensions: 74x76x20 mm

• 2 pairs of infrared barrier TX-RX

Externally synchronized infrared photocell, adjustable 180°. Screen for interference protection and sun filter. Maximum range (tx-rx) 15 meters, dimensions 105x36x35 mm

• 2 push-button switches

Normally open push-button switches (closing the contact turns on the traffic light)

• Wiring diagrams

Note: cables for system wiring are not included
