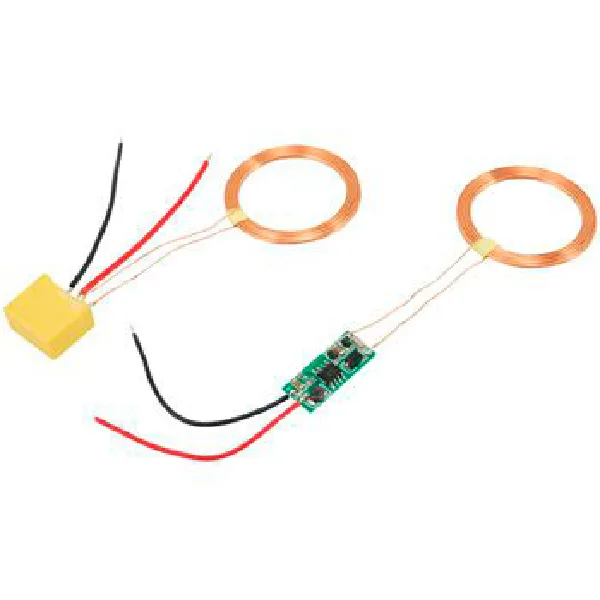

TX+RX Module Pair for Wireless Charging

Made up of a transmitter module and a receiver module, it transfers power without cables
TX+RX Module Pair for Wireless Charging - Image 1
TX+RX Module Pair for Wireless Charging - Image 3
TX+RX Module Pair for Wireless Charging - Image 4

SKU 7300-WIRELESS5VEAN 8219671060646Item type: Assembled

Description

Made up of a transmitter module and a receiver module, it transfers power without cables. It can be built into electronic devices to power them or recharge their battery without any contact. Particularly suited to being built into small electronic products such as mobile phones, games consoles, aquariums, MP3 and MP4 players, digital cameras, electric shavers and other products.
Watch the Video

Technical details

input voltage from 5 VDC
dimensions (mm) 17x12x4
coil size 40 mm diameter x 1.8 mm thick
output voltage 5 VDC
output current 500 mA
module dimensions (mm) 24.3x9.7
Operating distance max 10 mm
