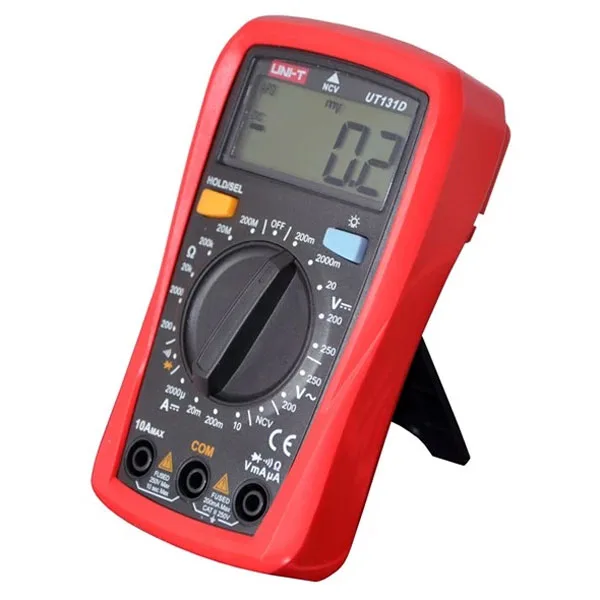

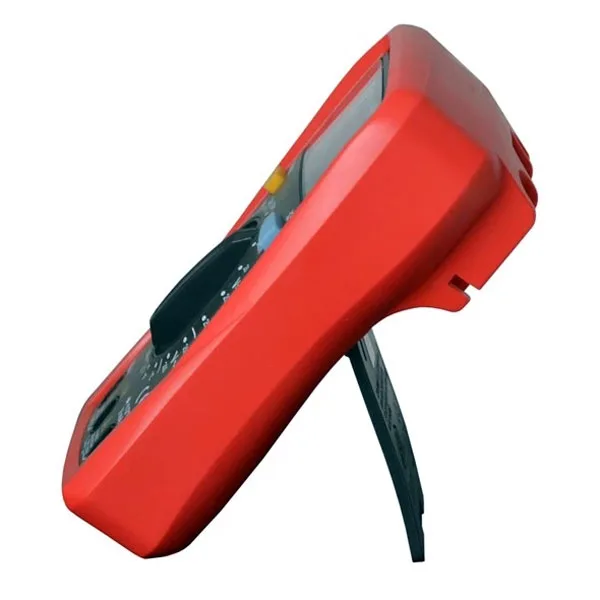

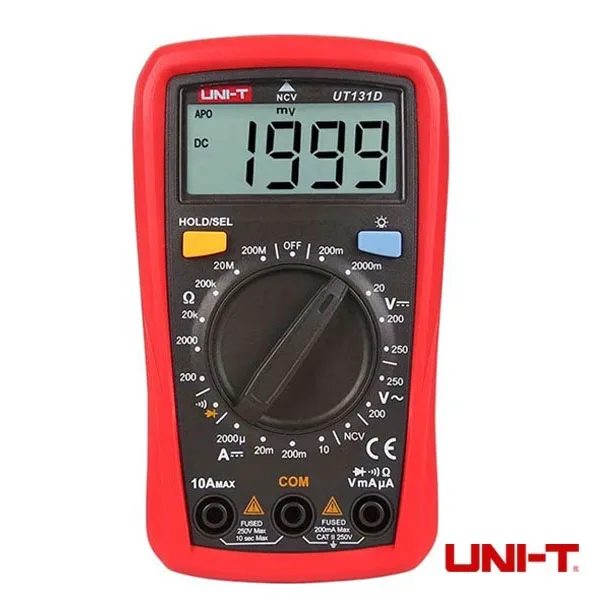

UNI-T multimeter – UT131D

Measures voltage, current up to 10 A and resistance up to 200 Mohm; the NCV function finds a live wire without touching it.

SKU 8240-TP131EAN 5410329643362Brand: UNI-TProduct type: Multimeters & electrical testers

Description

UNI-T digital multimeter CAT II, with a backlit 3 1/2 digit LCD, able to measure DC currents up to 10 A, DC and AC voltages up to 250 V, resistances up to 200 Mohm, diodes and continuity. It has NCV non-contact detection (Non-contact Detection): an AC electromagnetic field indicator, automatic polarity detection and a low-battery indicator. Powered by 2 AAA batteries of 1.5 volts (included). Supplied with a protective holster and removable test leads.

Technical specifications
  • Resistance: 200 ohm / 2,000 ohm / 20 kohm / 200 kohm / 20 Mohm / 200 Mohm
  • NCV non-contact detection (Non-contact Detection): AC electromagnetic field indicator, the buzzer sounds a series of beeps
  • Weight: 206 grams
  • Power supply: 2 AAA batteries of 1.5 volts (included)
  • Operating temperature: 0°C to +40°C
  • The package contains: Multimeter, test leads and user manual

Technical details

Multimeter complies with IEC 61010-1, IEC 61010-2-030, CAT II
DC voltage ranges 200 mV / 2,000 mV / 20 V / 250 V
AC voltage ranges 200 / 250 V
DC current ranges 2,000 µA / 20 mA / 200 mA / 10 A
Continuity test yes
Diode test yes
Low battery indicator yes
Maximum display reading 1999
Backlit yes
Data hold yes
Automatic polarity detection yes
Automatic power-off yes, after 15 minutes of inactivity
Range selection manual
Dimensions (mm) 134x77x47
