Universal mono preamplifier

Lifts a signal that is too weak, a microphone signal for example, by up to 40 dB; bandwidth 20 Hz to 20 kHz, supply 10 to 30 Vdc.

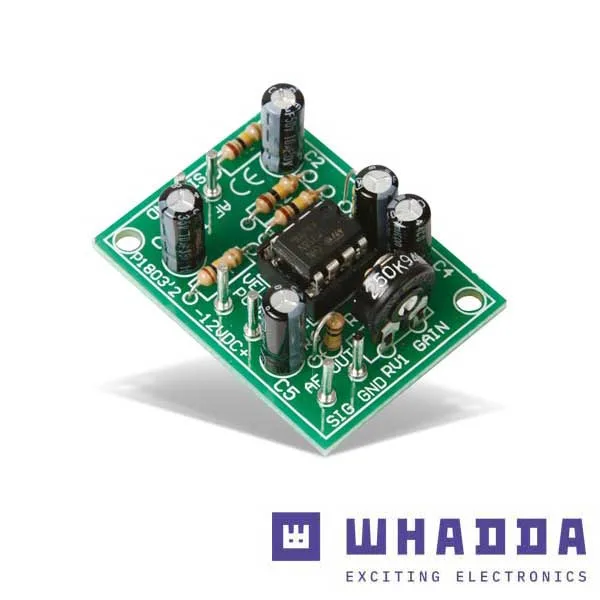

Universal mono preamplifier - Image 1

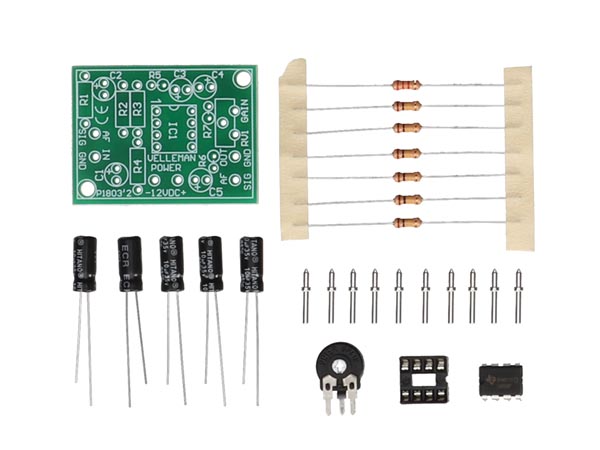

SKU 8220-WSAH1803EAN 5410329018030Item type: Kit,

Description

Mono preamplifier module for audio applications where the input signal is too low. Suitable for amplifying microphone signals and for level correction.

Technical details

Supply 10 - 30 VDC / 10 mA
Output impedance 1 kOhm
Adjustable output level max. 40 dB
Frequency response 20 Hz - 20 kHz ± 3 dB
Maximum input voltage 40 mV
PCB dimensions 30 x 44 mm
