USB-RLY08 – 8 RELAY USB CONTROL MODULE

The USB-RLY08 module, based on FTDI's FT232R chip, features 8 single-pole relays

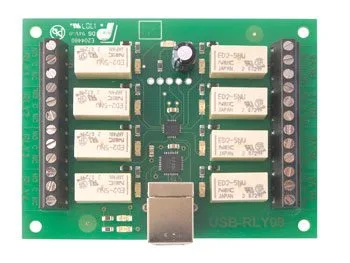

USB-RLY08 - 8 RELAY USB CONTROL MODULE - Image 1

SKU 7300-USB-RLY08EAN 8219671020138Item type: Assembled

Description

The USB-RLY08 module, based on FTDI’s FT232R chip, features 8 single-pole relays. Each contact can handle a maximum current of 1 A. The module draws power directly from the PC’s USB port and communicates with it via a virtual serial port. Consumption is about 90 mA with all relays activated; the normally closed, normally open and common contacts of each relay are available on the terminal block. A management software is available for download (download it here). Dimensions: 81 x 60 mm.
