Vandal-Resistant Metal Switch 16mm – Green LED

Metal vandal-resistant OFF/ON changeover switch with NC/NO/C contacts (normally open/closed and common) and LED illumination (+ and – contacts)

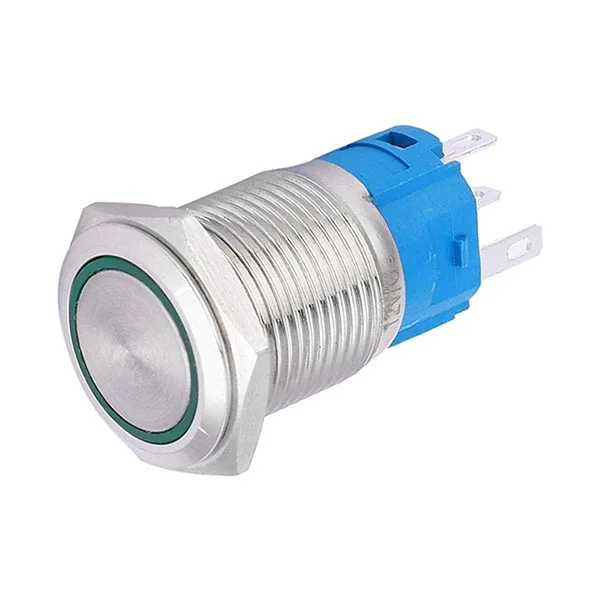

Vandal-Resistant Metal Switch 16mm - Green LED - Image 1

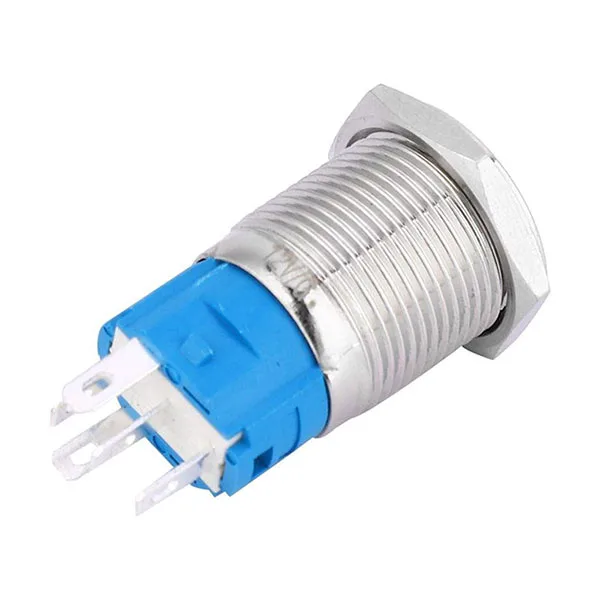

Vandal-Resistant Metal Switch 16mm - Green LED - Image 3

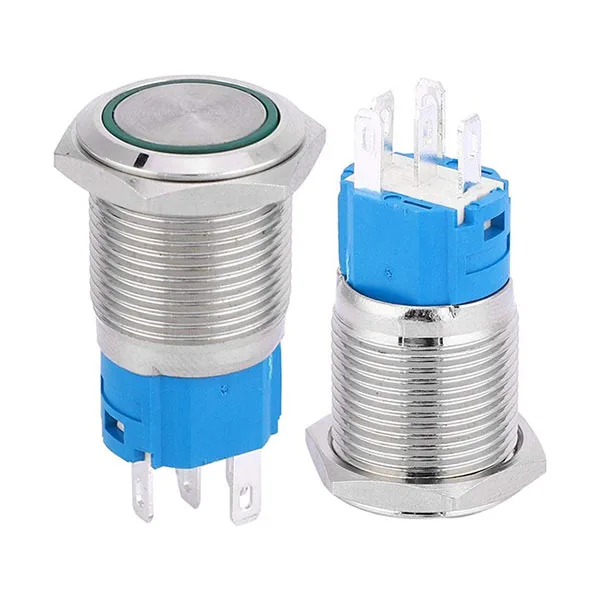

Vandal-Resistant Metal Switch 16mm - Green LED - Image 4
Vandal-Resistant Metal Switch 16mm - Green LED - Image 5

SKU 2846-DEVIATGREEAN 8219671098540Colour: Green, SilverContact configuration: SPSTHole size: 16 mmLighting: LEDSwitch action: ON-OFFItem type: Buttons & switches

Description

Vandal-resistant metal switch with OFF/ON mode and NC/NO/C contacts (normally open/closed and common), fitted with green LED illumination. LED supply voltage is 12 VDC, with a lifespan of over 40,000 hours. The contacts support a maximum voltage of 36 VDC/2 A. Operating temperature is between -20°C and +55°C, with 45-85% RH humidity. Insulation resistance is greater than 1000 Mohm, while contact resistance is under 50 Mohm. Mechanical life is 20,000 ON/OFF cycles and electrical life is 50,000 cycles. The body is made of nickel-plated brass, with a Ø 16 mm mounting hole. Protection rating is IP65/IK8 (mechanical impact resistance level).
Pinout
Pulsanti serie deviat - pinout

Technical details

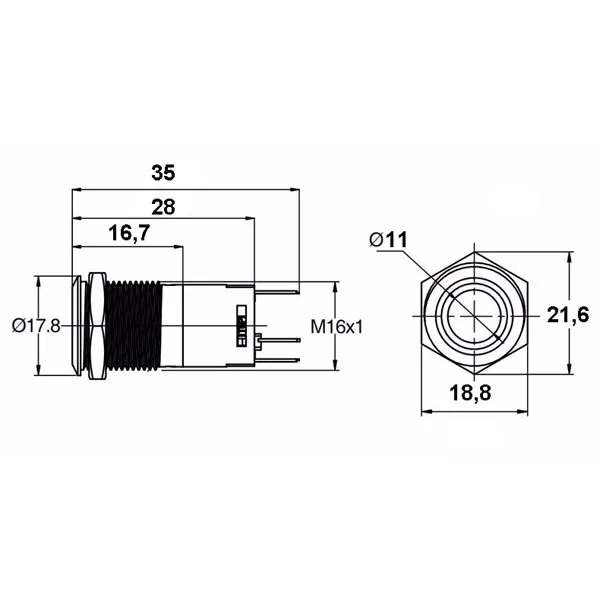

Dimensions (mm) Ø 16 (mounting hole) x 35 (length) x 18.8 (nut)
Terminals solder type
Contacts NC-NO-C
LED green
