Vandal-resistant selector switch 16 mm – red LED

Metal vandal-resistant OFF/ON selector switch with NC/NO/C contacts (normally open / closed and common) and LED illumination (+ and - contacts)

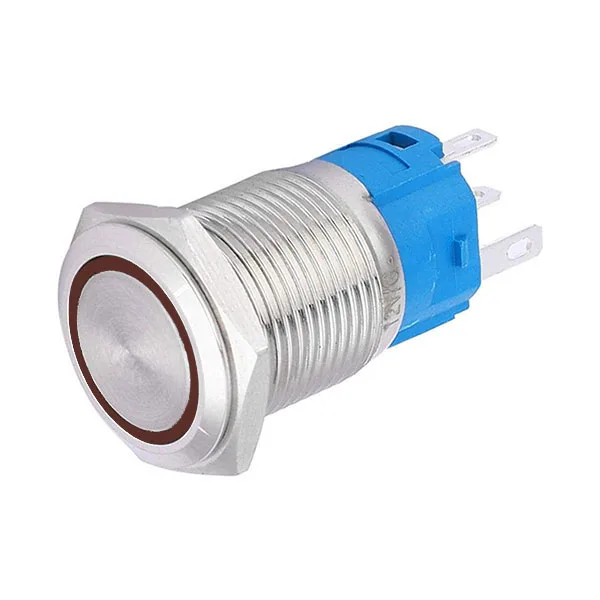

Vandal-resistant selector switch 16 mm - red LED - Image 1

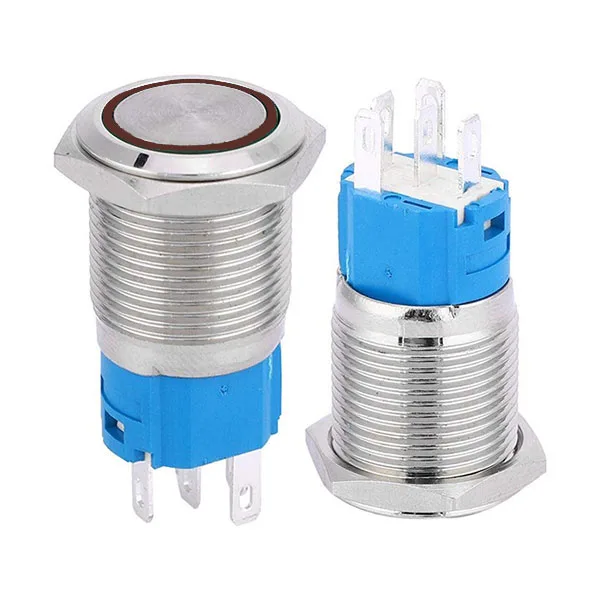

Vandal-resistant selector switch 16 mm - red LED - Image 3
Vandal-resistant selector switch 16 mm - red LED - Image 4
Vandal-resistant selector switch 16 mm - red LED - Image 5

SKU 2846-DEVIATREDEAN 8219671098540Colour: Red, SilverContact configuration: SPSTHole size: 16 mmLighting: LEDSwitch action: ON-OFFItem type: Buttons & switches

Description

Vandal-resistant metal selector switch with OFF/ON action and NC/NO/C contacts (normally open/closed and common), fitted with red LED illumination. The LED runs on 12 VDC and lasts more than 40,000 hours. The contacts take a maximum of 36 VDC/2 A. Operating temperature is between -20°C and +55°C, with 45-85% RH humidity. Insulation resistance is above 1000 Mohm, while contact resistance is below 50 Mohm. Mechanical life is 20,000 ON/OFF cycles and electrical life is 50,000 cycles. The body is nickel-plated brass, with a Ø 16 mm mounting hole. Protection rating is IP65/IK8 (level of resistance to mechanical impact).
Pinout
Pulsanti serie deviat - pinout

Technical details

Dimensions (mm) Ø 16 (mounting hole) x 35 (length) x 18.8 (nut)
Terminals solder
Contacts NC-NO-C
LED red
