VoidX-DSPModule – ESP32 Module for Audio DSP Applications

VoidX-DSPModule is a very compact hardware platform designed specifically for audio DSP applications.
VoidX-DSPModule - ESP32 Module for Audio DSP Applications - Image 1

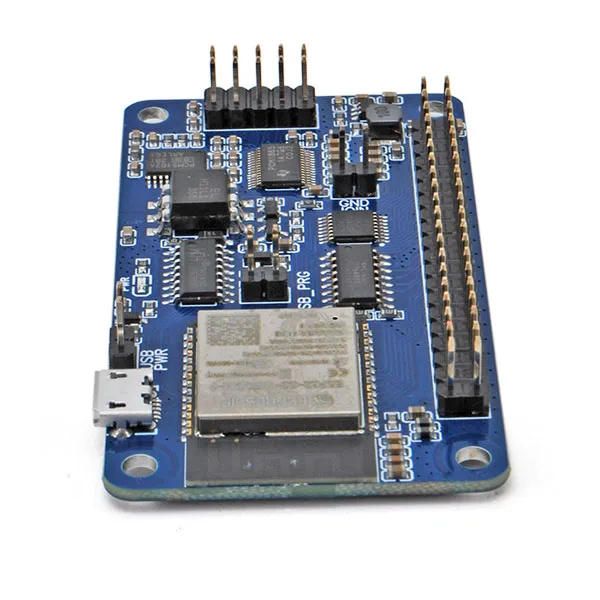

VoidX-DSPModule - ESP32 Module for Audio DSP Applications - Image 3
VoidX-DSPModule - ESP32 Module for Audio DSP Applications - Image 4
VoidX-DSPModule - ESP32 Module for Audio DSP Applications - Image 5
VoidX-DSPModule - ESP32 Module for Audio DSP Applications - Image 6
VoidX-DSPModule - ESP32 Module for Audio DSP Applications - Image 7
VoidX-DSPModule - ESP32 Module for Audio DSP Applications - Image 8
VoidX-DSPModule - ESP32 Module for Audio DSP Applications - Image 9

SKU 2848-VOIDXDSPEAN 8057190730028Output voltage: Manually adjustableItem type: AssembledConversion type: Step-down

Description

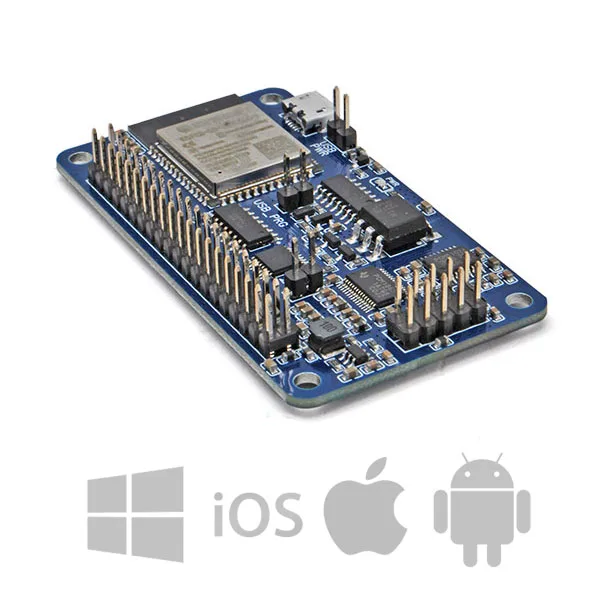

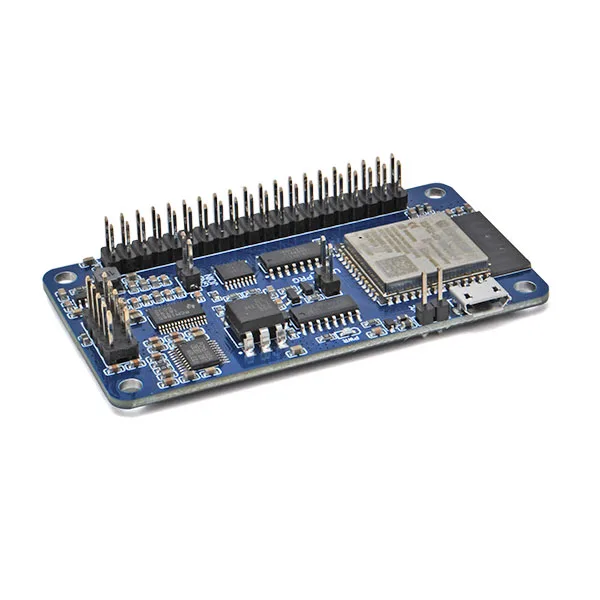

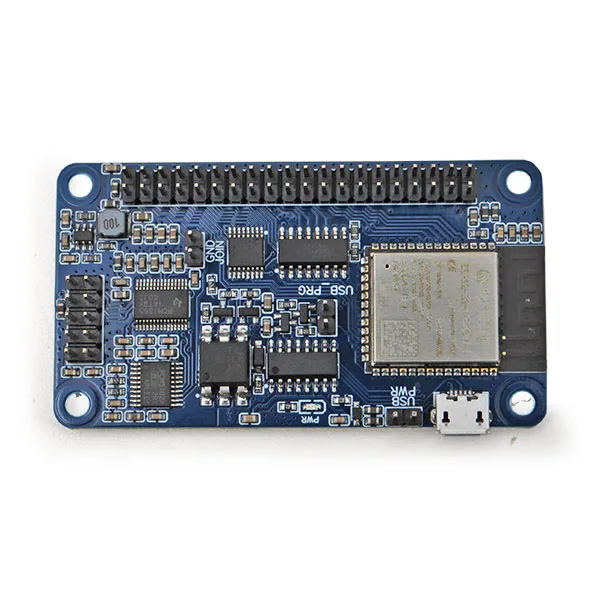

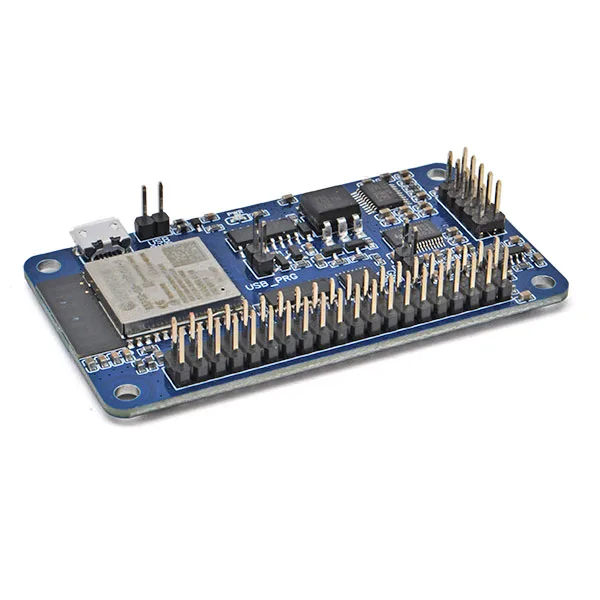

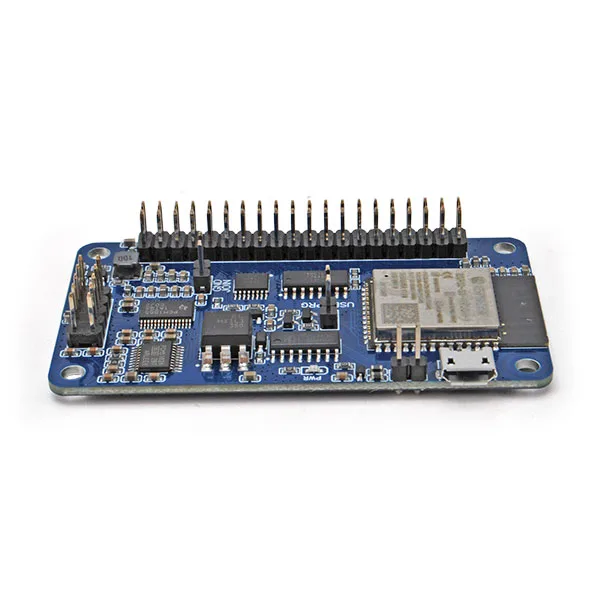

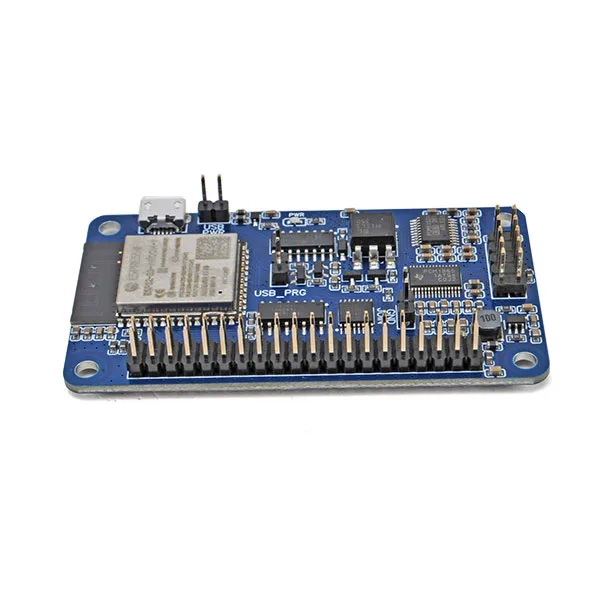

The VoidX-DSPModule is a compact hardware platform based on the ESP32-S3-WROOM-1 module, designed specifically for audio DSP applications. This low-cost solution lets manufacturers build a complete DSP system into their own products with no effort. VoidX-DSPModule includes two high-resolution inputs (SNR 110dB) and outputs (SNR 112dB) and offers many I/O interfaces.
The module has to be programmed with your own custom firmware, or with the firmware that can be downloaded from the manufacturer’s page.
I/O interfaces
  • Connectivity:
    • Bluetooth and Wi-Fi for control from mobile devices with VoidX-Control.
    • USB and Wi-Fi for control from PC/MAC devices with VoidX-Control.
  • MIDI IN/OUT: supports direct connection to standard MIDI connectors, with no external circuitry needed.
  • Power supply:
    • Wide supply range from 5V to 12V.
    • Can also be powered through the built-in USB connector.
    • Provides a 3.3V – 500mA external supply for auxiliary circuits.
  • I/O expansion interface: supports hundreds of I/O connections through shift registers (e.g. LEDs and buttons).
  • CPU: dual-core 240MHz CPU module with 2MB of RAM and 8MB of Flash, based on the ESP32-S3-WROOM-1(N8R2).

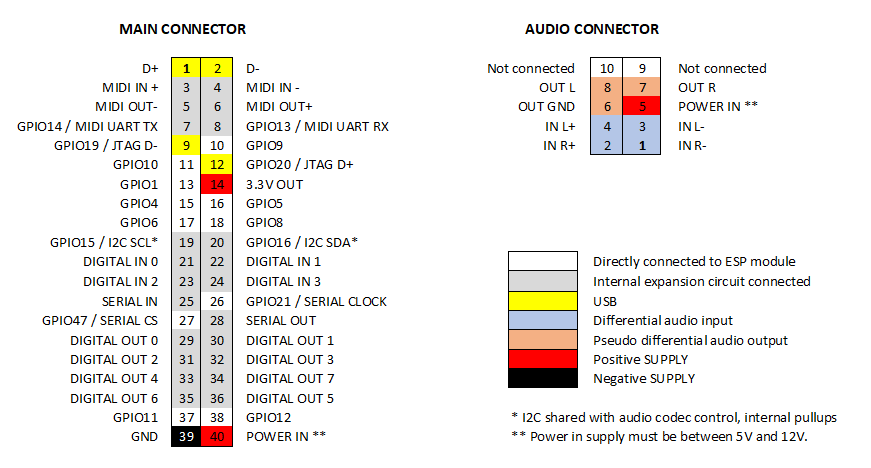

PCB Pinout
VoidX-DSPModule has a 2×20 2.54 mm connector for the power supply, the GPIOs and other interfaces, and a 2×5 2.54 mm connector for the high-resolution audio interface.

ESP32 module for audio applications

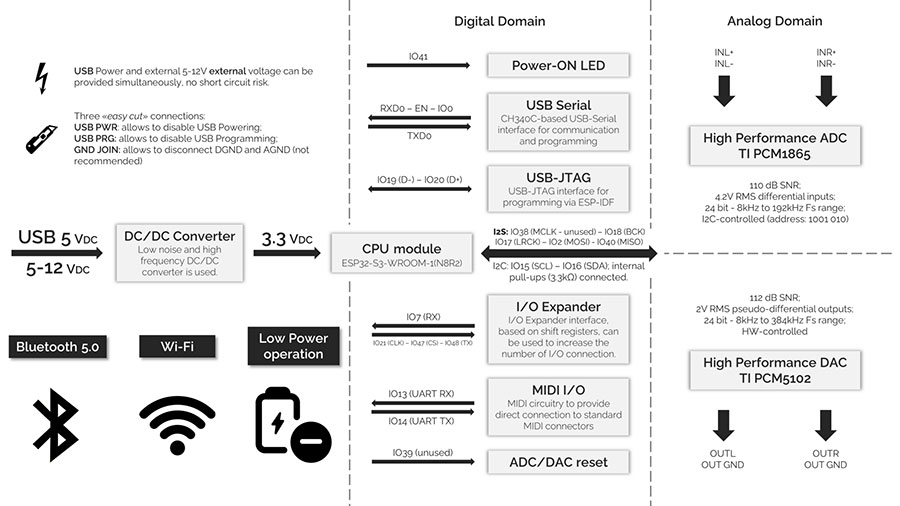

Architecture overview


ESP32 module for audio applications
Dimensions

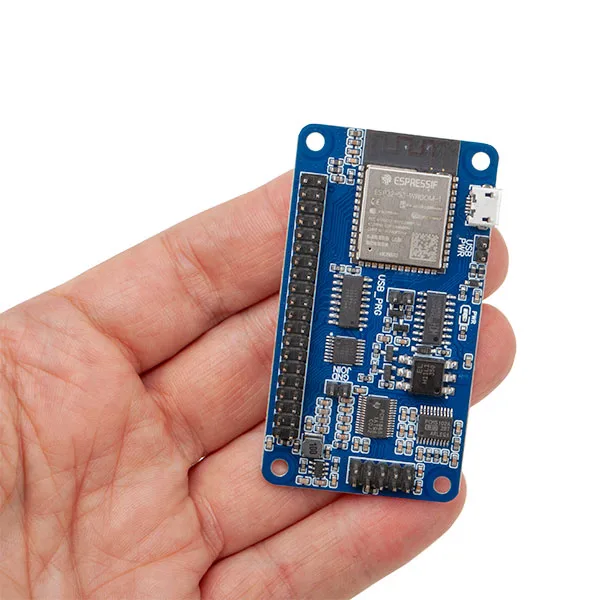

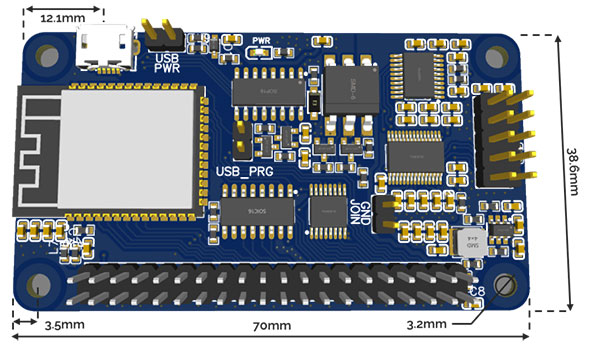

The VoidX-DSPModule measures just 70x39mm and is designed to be easy to build into any project. It also has four M3 mounting holes, which give a solid fixing.

ESP32 module for audio applications
Download

Technical details

GPIO wide set of GPIOs (digital, analogue, PWM, I2C, SPI, etc.)
Display support for graphic displays over I2C and SPI
Programming and debugging programming and debugging over USB/JTAG
