Waterproof Ultrasonic Transducer RTX 40 kHz

Waterproof ultrasonic transducer (40 kHz) capable of working as both a transmitter and a receiver. Particularly suited for building robots, distance meters, parking sensors, etc.

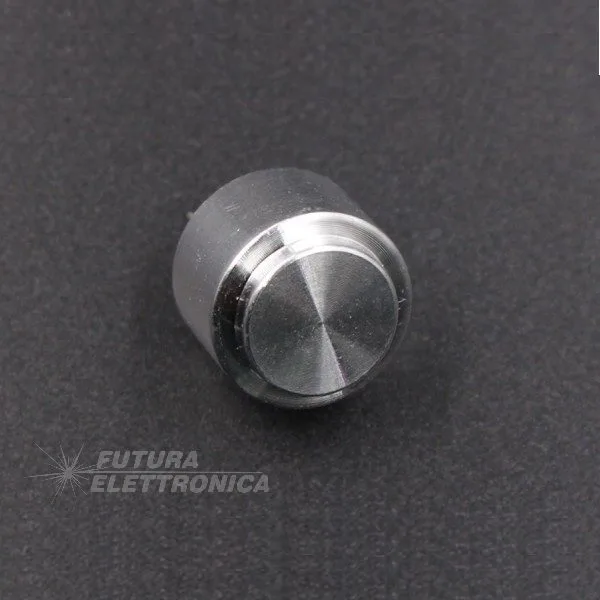

Waterproof Ultrasonic Transducer RTX 40 kHz - Image 1

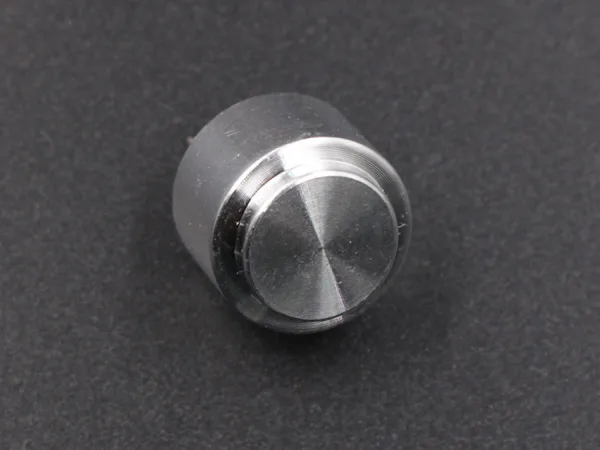

Waterproof Ultrasonic Transducer RTX 40 kHz - Image 3

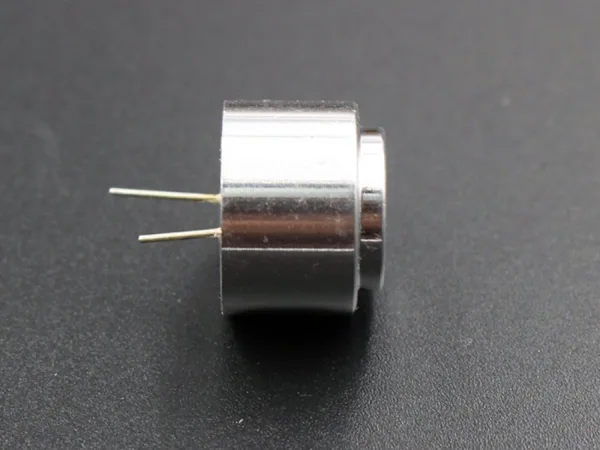

Waterproof Ultrasonic Transducer RTX 40 kHz - Image 4

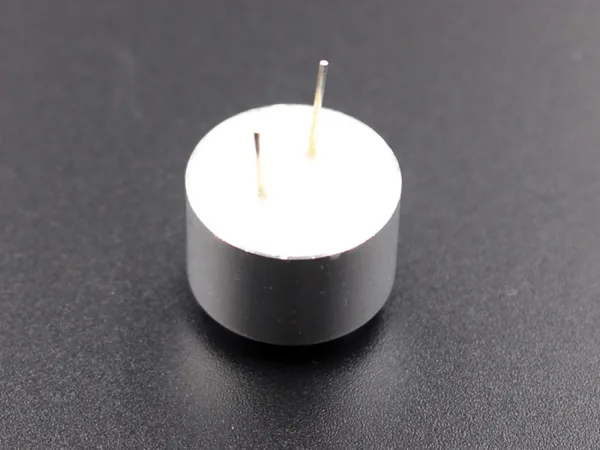

Waterproof Ultrasonic Transducer RTX 40 kHz - Image 5

SKU 3085-RTX40KHZWPEAN 8219671101363Item type: Assembled

Description

Waterproof ultrasonic transducer (40 kHz) that can operate both as a transmitter and as a receiver. Particularly suitable for building robots, distance meters, parking sensors, etc.

Technical details

Operation Transmitter and Receiver
Case material aluminum
Resonant frequency 40 kHz (±1.5 kHz)
Capacitance 1800 pF
Sound pressure level in transmission ≥100 dB
Receiving sensitivity ≥-85 dB
Detection range from 30 cm to 3.5 m
Dimensions (mm) diameter 16x12
Operating temperature from -40°C to +80°C
Weight 3.5 grams
