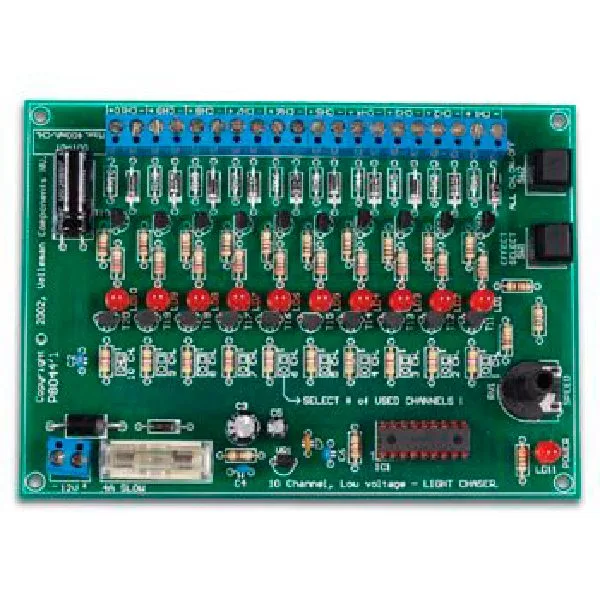

10-Channel Light Effects Controller

Description

It features 10 outputs (12V/400mA) for controlling as many lamps, “solid state” relays, etc. It can be used to create warning lights, party lights, disco lights, etc.

FEATURES

• Features 10 outputs with ratings of 12V/400mA for controlling as many cold-cathode fluorescent lamps, light bulbs, LEDs, and “solid state” relays, etc.
• Can be used to create warning lights, party lights, disco lights, etc.
• Features 10 preprogrammed settings selectable via a button
• Maximum activation time for a single output: 1 second
• Number of channels used is configurable
• Speed adjustable
• LED indicator for each output
• Also works at 12V for automotive applications
• Optional:
  – Adapter (input: 90 – 260V AC; output: 12V DC / 5.8A): code PSS1255
  – Power supply for cold-cathode fluorescent lamps: code FLPS (300mm) or code FLPS1 (100mm)
  – “Solid-state” relay for controlling high loads (lamps): code VR25SS1A (1 x NO, 240V / 25A) or code VR3SS1A (1 x NO, 240V/3A)

DOWNLOAD

• Link to the manufacturer’s page for downloading manuals and data sheets.
