12 VDC Gearmotor – 30 rpm – 8 kg·cm

12 Vdc gearmotor with a 200:1 reduction ratio, maximum torque 8 kg·cm, speed under load: 30 rpm, direction of rotation set by polarity

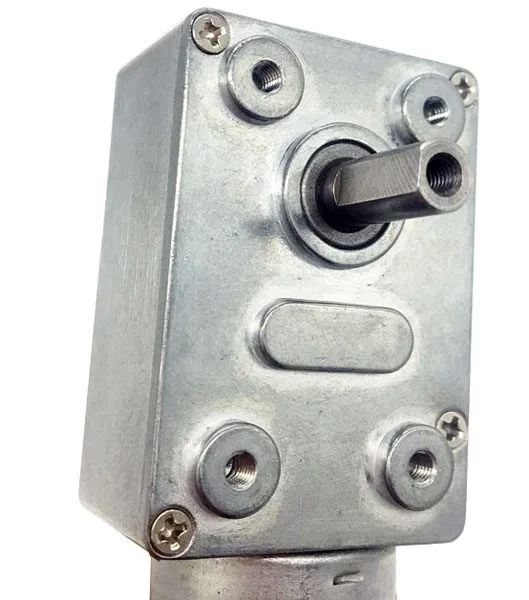

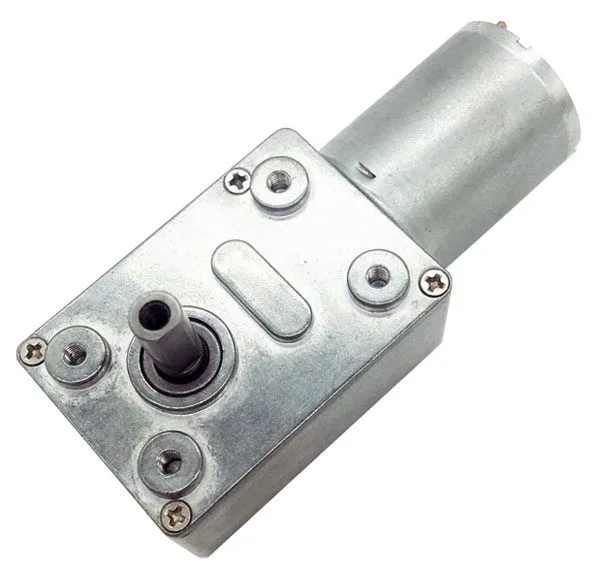

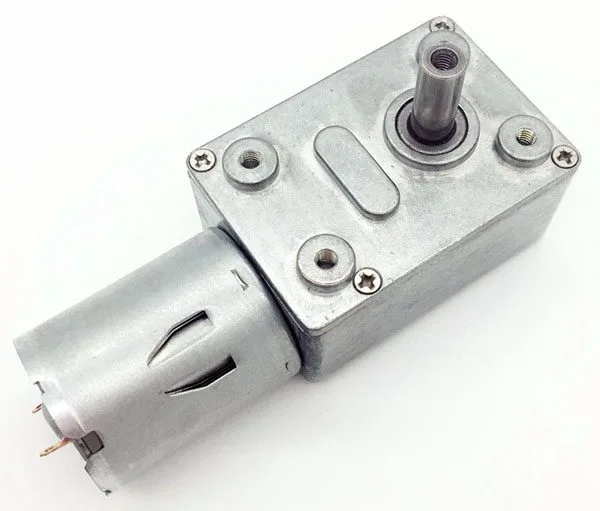

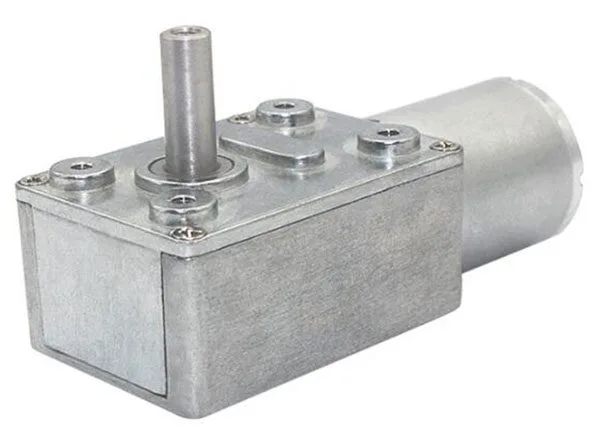

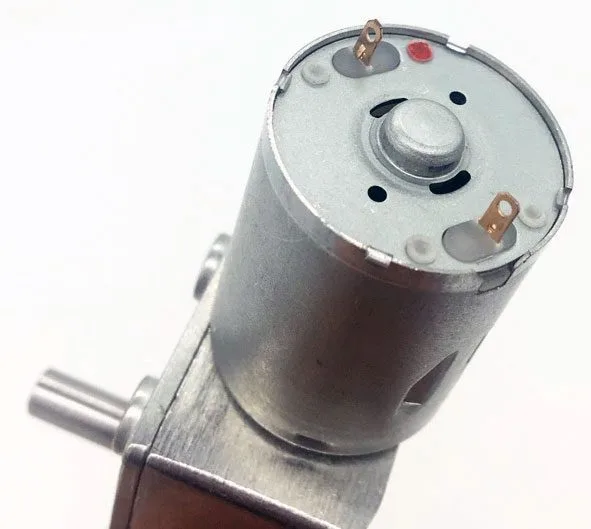

12 VDC Gearmotor - 30 rpm - 8 kg·cm - Image 1
12 VDC Gearmotor - 30 rpm - 8 kg·cm - Image 3
12 VDC Gearmotor - 30 rpm - 8 kg·cm - Image 4
12 VDC Gearmotor - 30 rpm - 8 kg·cm - Image 5
12 VDC Gearmotor - 30 rpm - 8 kg·cm - Image 6

SKU 1606-MOT12V30RPMEAN 8219671103879Item type: Assembled

Description

12 Vdc gearmotor with a 200:1 reduction ratio, maximum torque 8 kg·cm, no-load speed: 30 rpm, direction of rotation set by polarity. Particularly suitable for building robots, automation and the like.
Technical specifications
  • No-load speed: 40 rpm
Technical documentation

Technical details

no-load speed 30 rpm, direction of rotation set by polarity
Rated voltage 12 VDC
Reduction ratio 200:1
Maximum torque 8 kg·cm
Speed at maximum torque 30 rpm
Direction of rotation set by polarity
Current draw at maximum torque < 600 mA
No-load current draw < 90 mA
Dimensions (mm) See the documentation below
Operating temperature -20°C to +60°C
Weight approx. 163 grams
