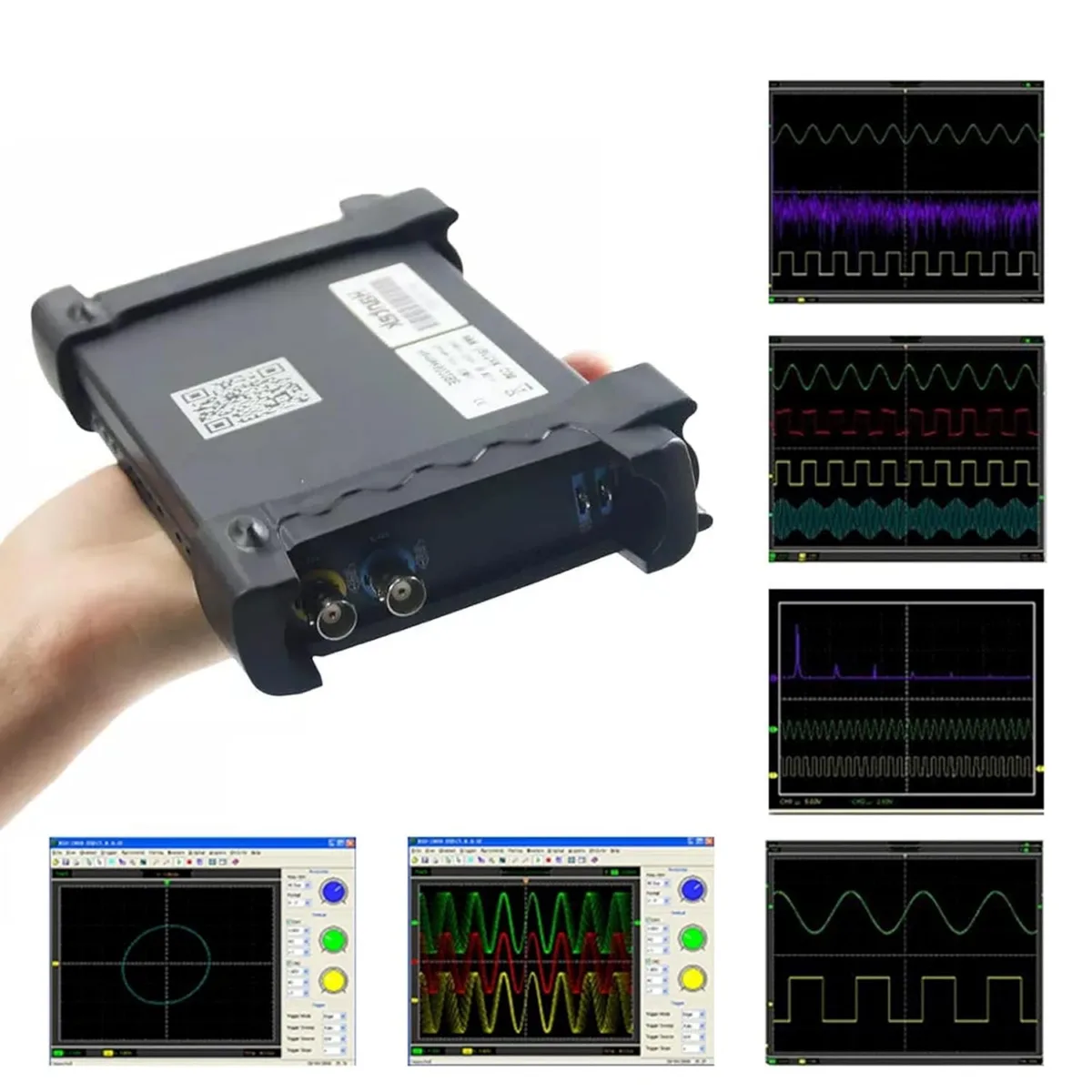

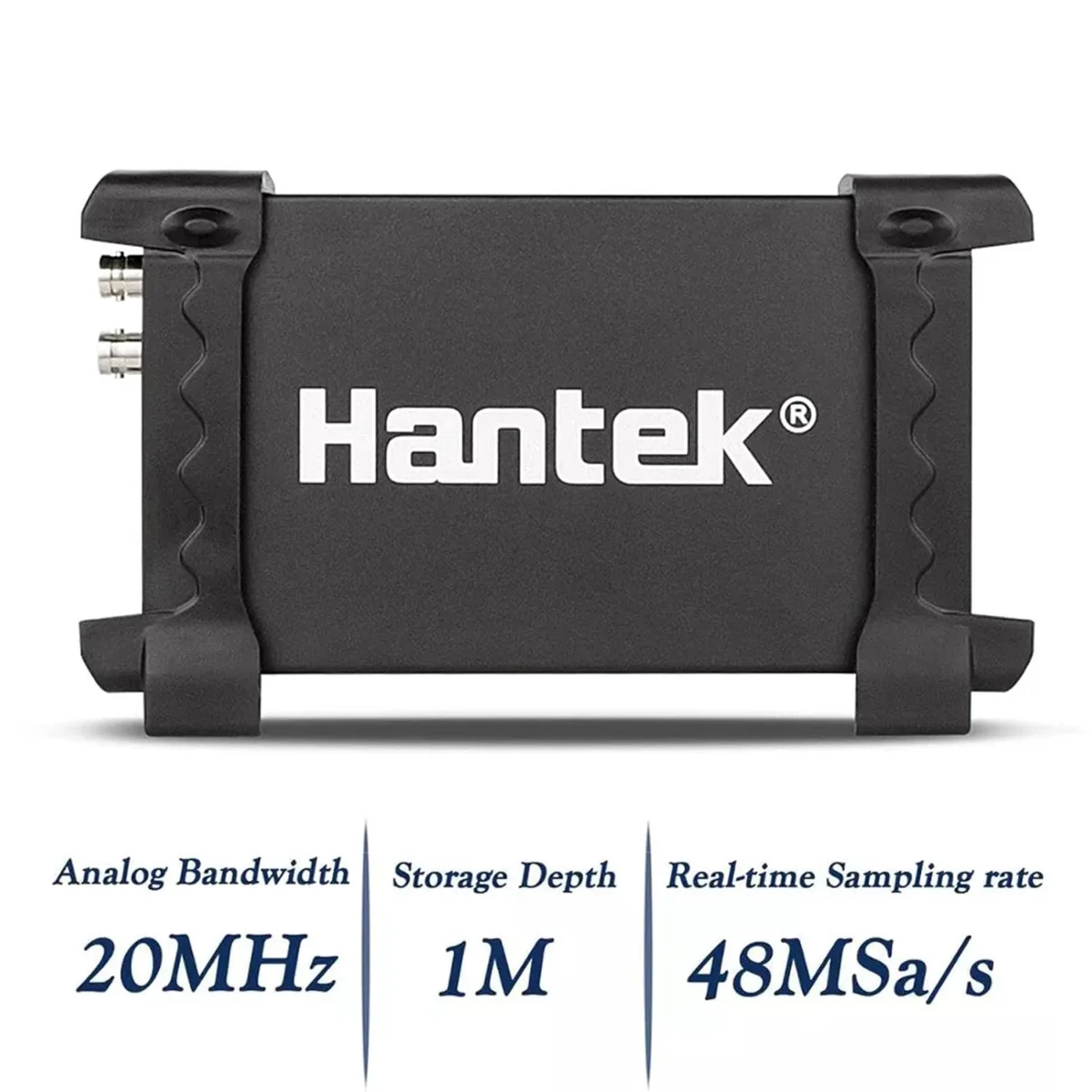

2-Channel USB PC Oscilloscope, 20 MHz, 48 MS/s, Anodised Aluminium Case

• Built-in FFT (Fast Fourier Transform) function.
• 20 automatic measurements.
• Waveform storage.
• Fast user-selectable offset calibration.
• Math functions to add, subtract, multiply and divide.
• Adjustable waveform brightness.
• User interface available in several languages (English, French, German, Chinese).
• Operating system: Windows XP / Vista / 7 / 8 / 10 /11 – (Linux and MAC available with the OpenHantek software)
• System requirements: PC with a processor faster than 1 GHz, 128 MB memory, 500 MB free hard disk space, 800×600 screen resolution.
• In the box: oscilloscope, CD with software and manual (in English), 2 x 100 MHz probes, USB cable.
• Several units can be connected to the same PC and selected easily from the software (one unit at a time). The software can also be opened more than once, so that several units can be driven at the same time from the same PC.

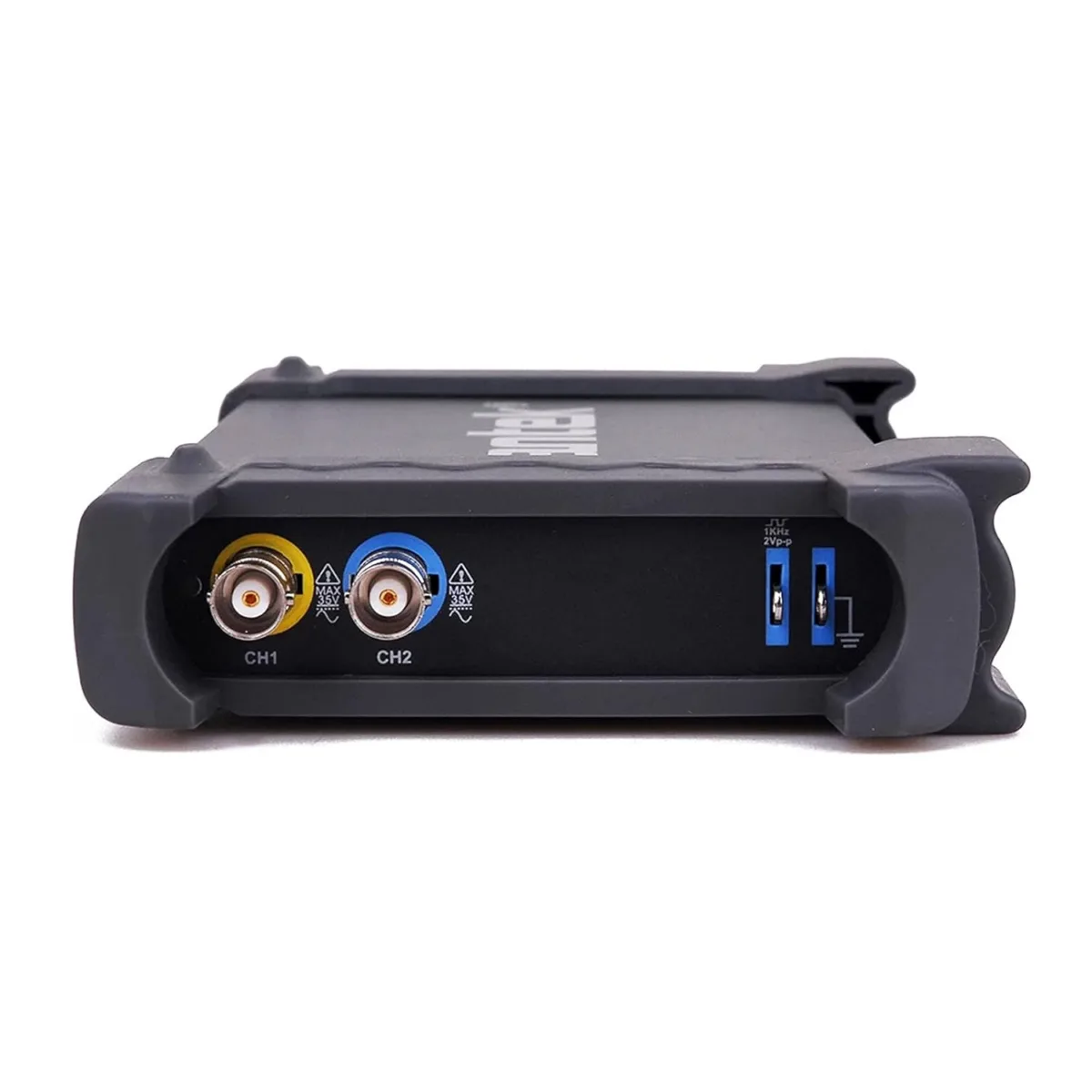

• Input
  – Gain:
  20 mV~5 V/div @ x1 probe (20 mV, 50 mV, 100 mV, 200 mV, 500 mV,1 V, 2 V, 5 V/div 1,2,5 sequence)
  200 mV~50 V/div @ x10 probe
  2 V~ 500 V/div @ x100 probe
  20 V~5 KV/div @ x1000 probe

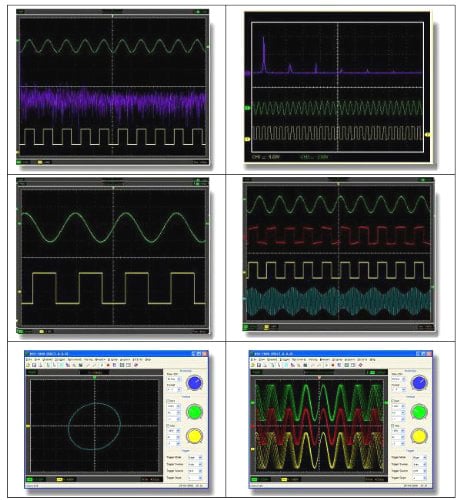

  – Display mode: Y-T, X-Y
• Timebase
  – Timebase range: 1ns/div~5000s/div
  (1ns,2ns,5ns,10ns,20ns,50ns,100ns,200ns, 500ns,1us,2us,5us,10us,20us,50us,100us,200us,500us, 1ms,2ms,5ms,10ms,20ms,50ms,100ms,200ms,500ms,1s,2s, 5s,10s,20s,50s,100s,200s,500s,1000s,2000s,5000s/div 1,2,5 sequence)
  – Range: 10 divisions
  – Buffer size: MAX.1M samples
• Trigger
  – Type: Edge trigger: Rising edge, Falling edge
  – Mode: Auto, Normal and Single
  – Autoset: yes
  – Trigger level: +/-4 divisions
  – Settabillity: 0.02 div increments

• Math

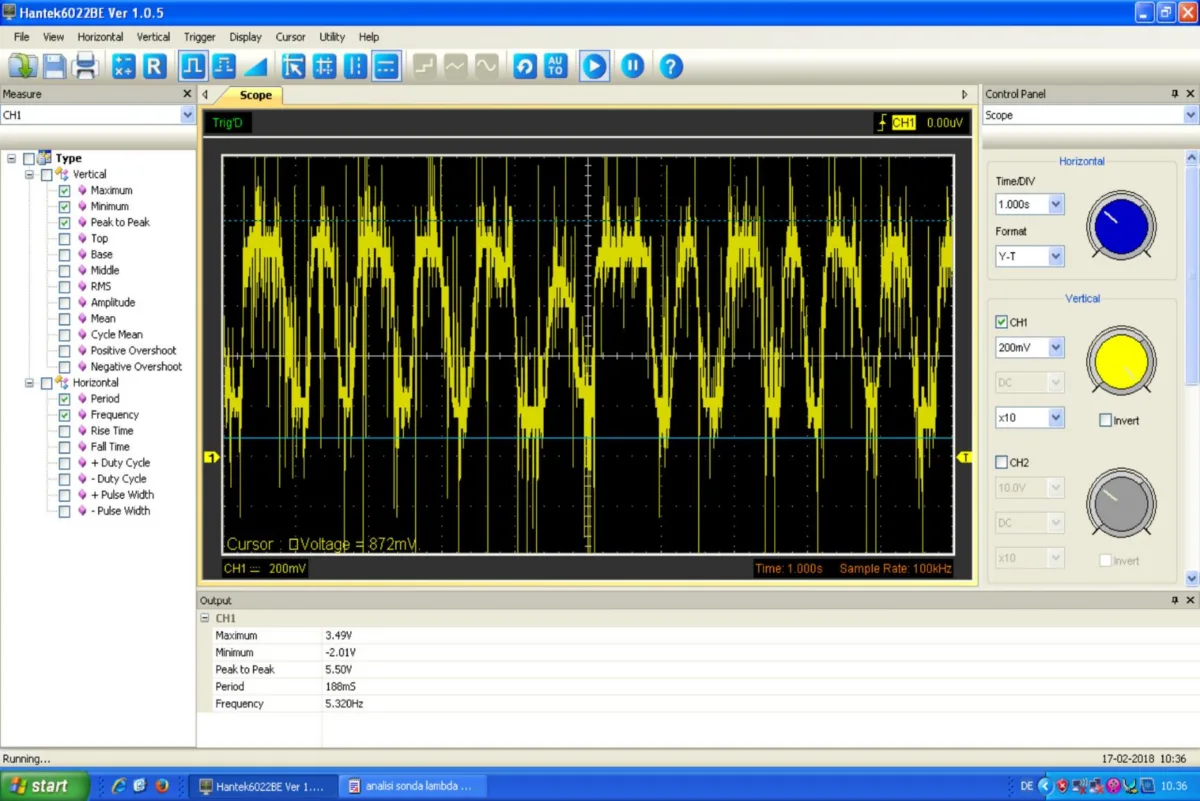

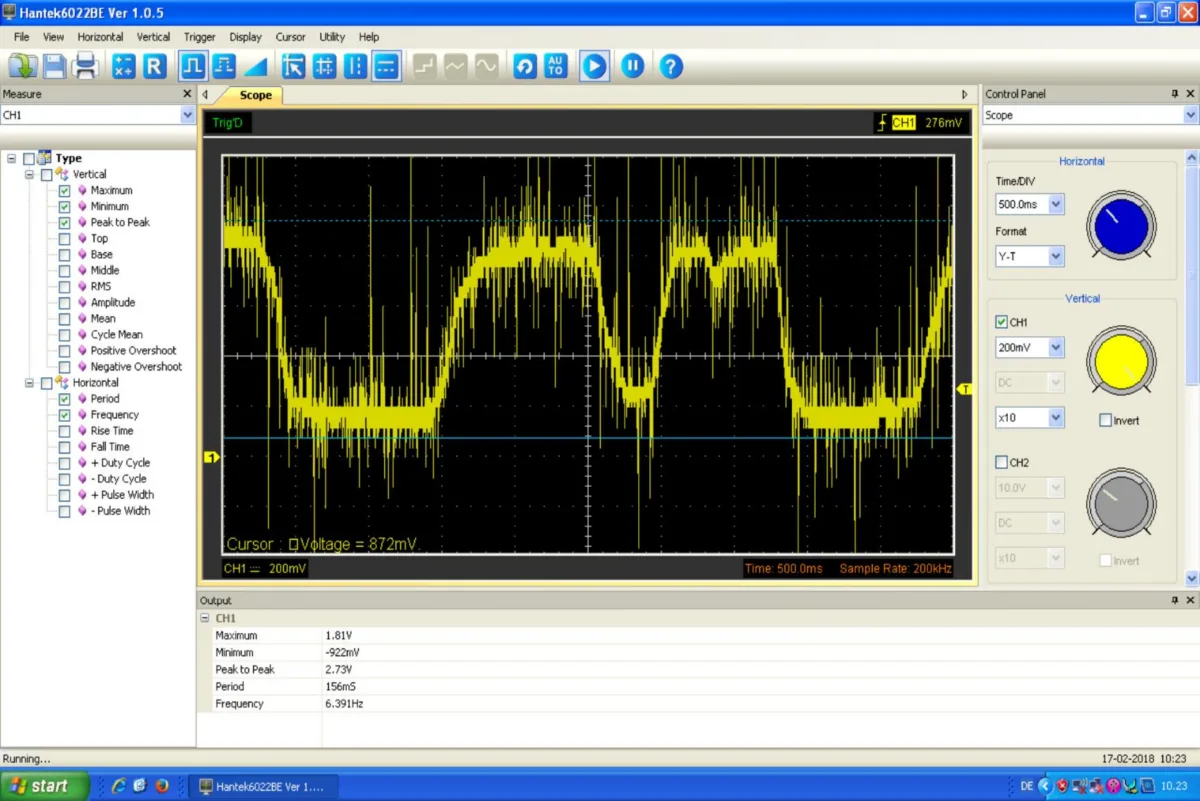

  – Measurements: Vpp, Vmax, Vmin, Vmean, Vrms, Vamp, Vtop, Vbase, Vmid,positive overshoot, negative overshoot, cycle mean, cycle RMS, period, frequency, positive pulse width, negative pulse width, rise time (10%~90%), fall time (10%~90%), positive duty cycle, negative duty cycle
  – Math: addition, subtraction, multiplication, division
  – FFT: Rectangular, Hanning, Hamming, Blackman Window
• General

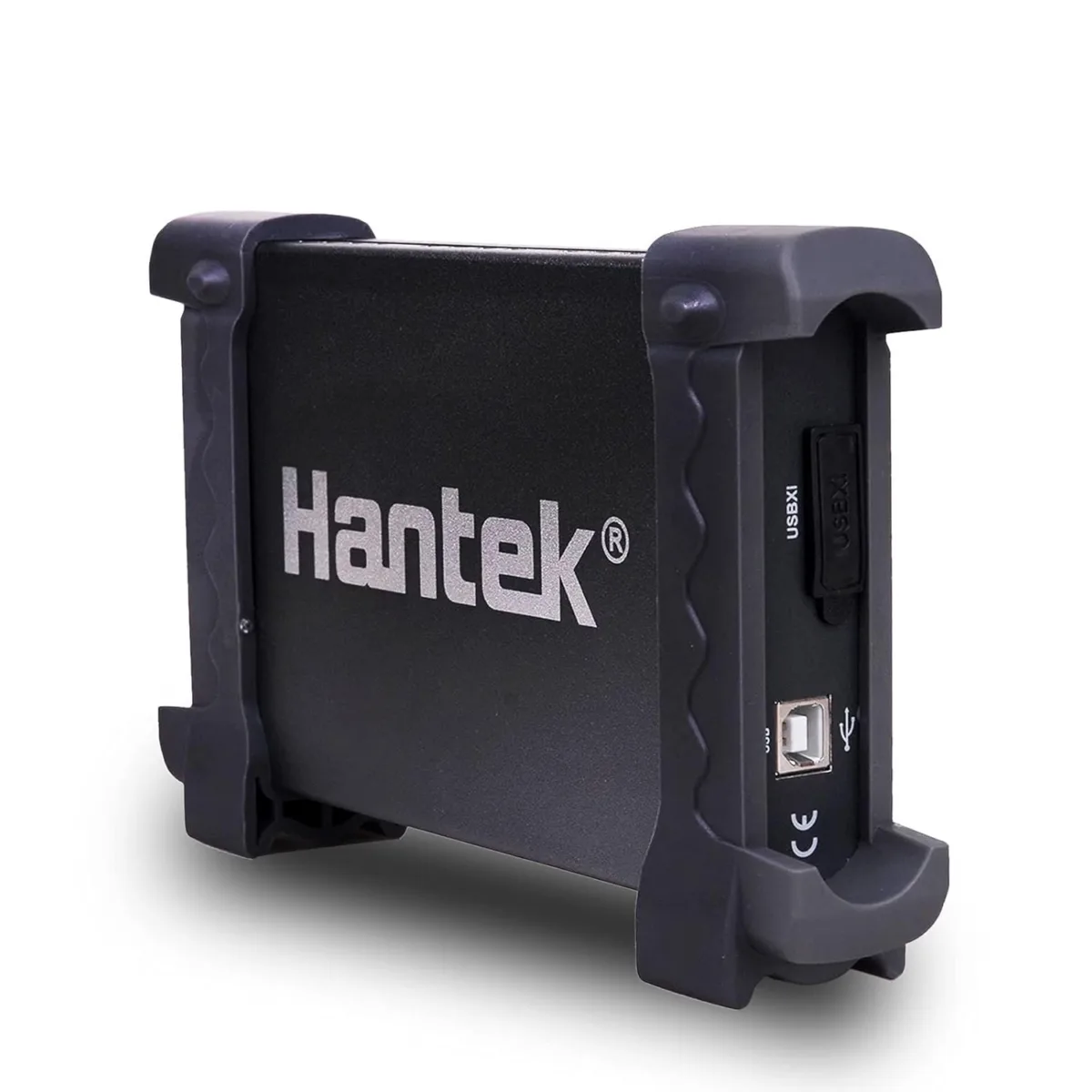

  – Interface: Universal Serial Bus (USB 2.0)
  – Power: directly from the USB port of the PC

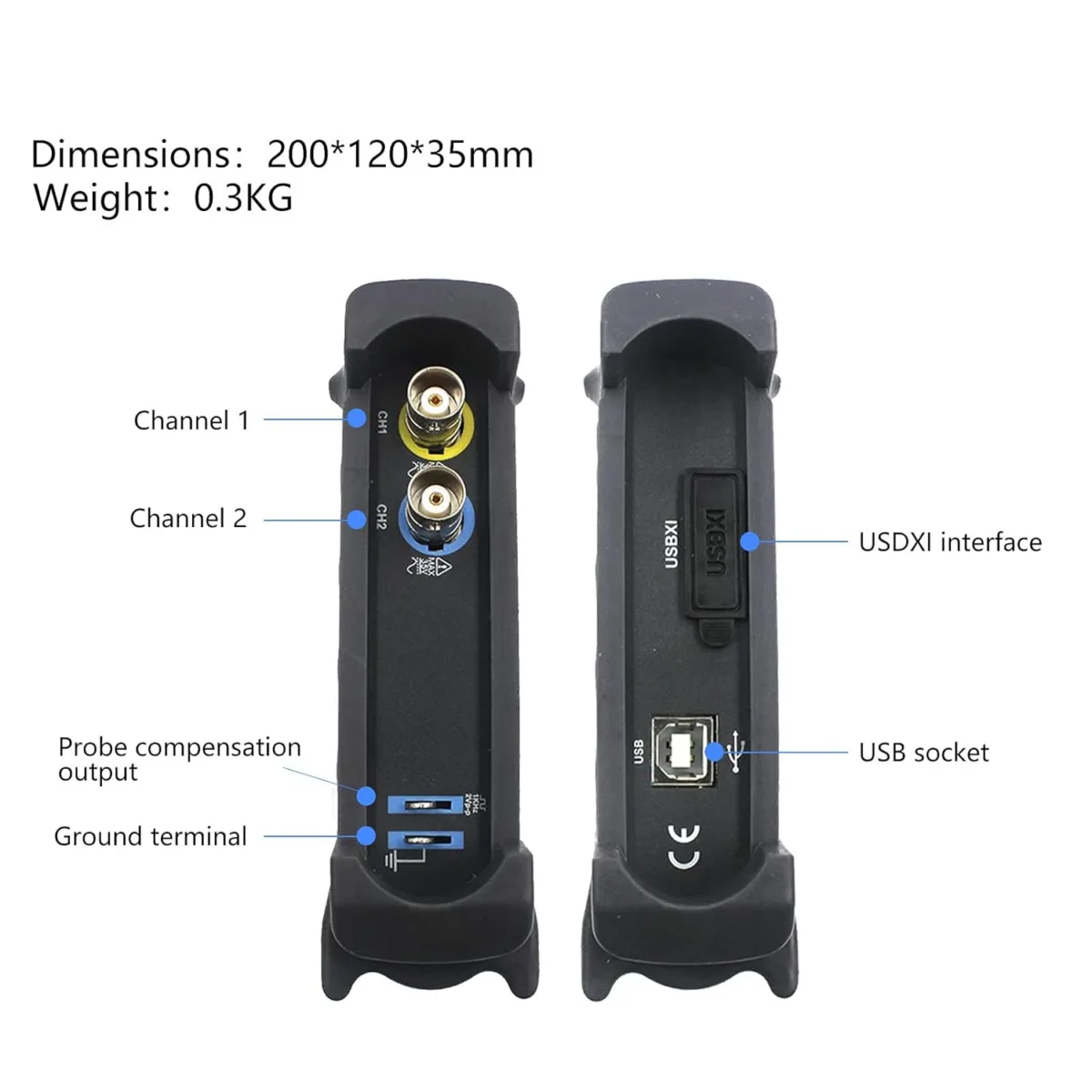

  – Dimensions (mm): 200x120x35

• User manual in English

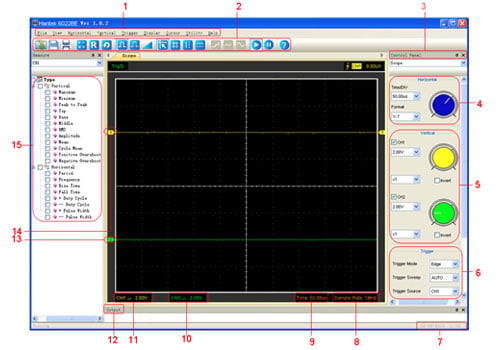

• Software and drivers
• OpenHantek6022
