20 MHz Pen-Shaped Oscilloscope

Description

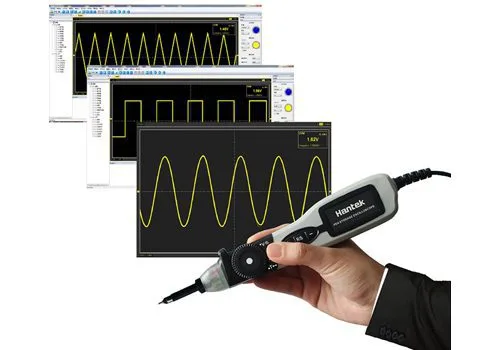

Pen-shaped portable oscilloscope. Powered via USB port, it features a single channel with 20 MHz bandwidth, sampling rate (Real Time): 96 MSa/s, max. memory depth 1 M/CH, 20 types of automatic measurements, manual range selection via rotary switch, DVM function, FFT (Fast Fourier Transform) function, status LED, software for real-time analysis with PC with the ability to export screenshots, print them, save them, and open them.
N.B. The oscilloscope is supplied with a manual in Italian.

Software screenshots

• Cursor and measurement
  – Voltage measurement: Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
  – Time values: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
  – Measurement cursors: Cross, Trace, Horizontal, Vertical
  – Math: +,- , x,÷, FFT
  – Voltage range: 20 mV to 20 V/div @ x 1 probe

• Other
  – FFT: Rectangular, Hanning, Hamming, Blackman
  – Auto set: Yes
  – Interface: USB 2.0
  – Supported operating systems: Windows 2000/ XP / Vista / 7 / 8 / 10
  – Power: via USB port
  – Dimensions (mm): 230x42x25
  – Weight: 263 grams

Download

• Windows 10 driver


  Driver WIN10 – PSO2020

  1 file 149.47 KB

  Download
• User manual in English
