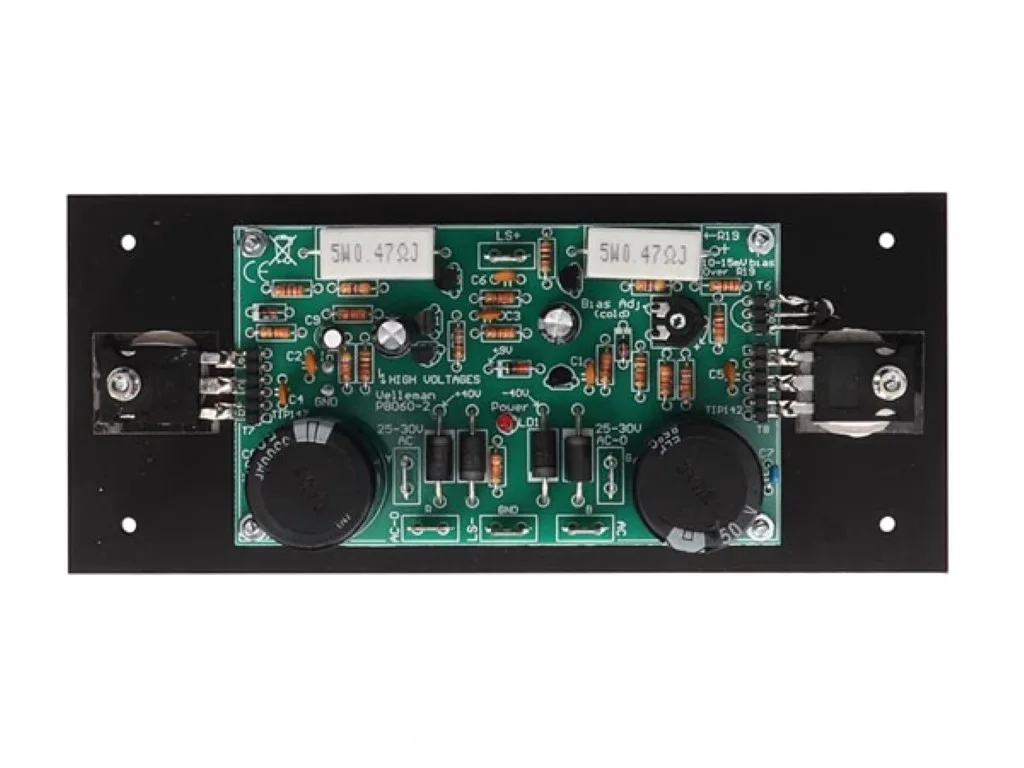

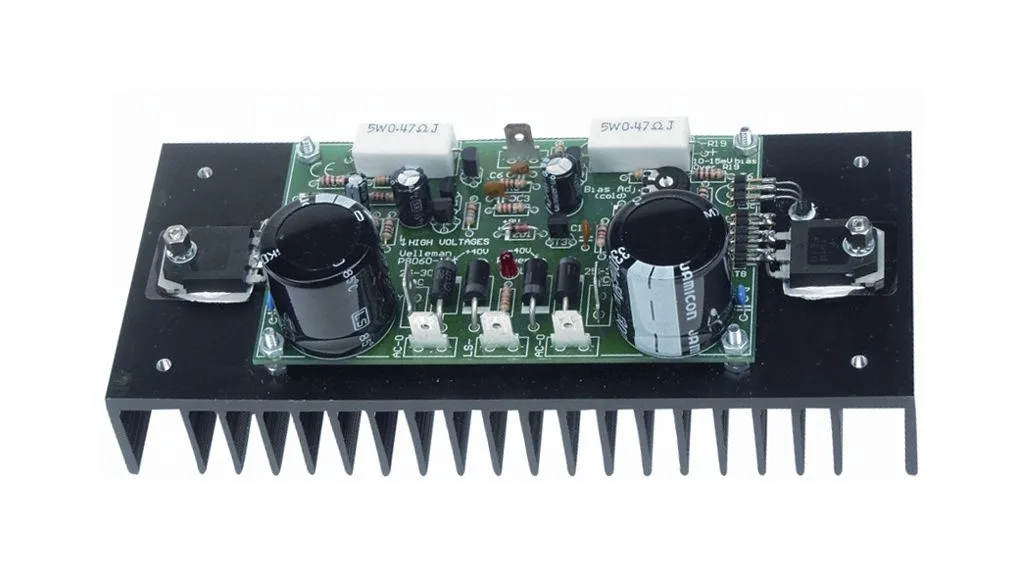

200 Watt Mono Amplifier – Assembled

Description

If you love music and want exceptional sound, this compact power amplifier module is what you need.

Able to deliver 100 watts of real power into a 4 ohm load or 70 watts into 8 ohms (200 watts music power into 4 ohms), this amplifier is the right choice for powered speakers, sub-woofer systems, electric guitar and bass amplification, home theatre systems and much more. Just connect a mains transformer to the board and the unit is ready to work.

The amplifier also has a built-in protection circuit against overloads and output short circuits.
It is supplied ready assembled and tested, ready to give you outstanding sound with no fuss.

SPECIFICATIONS

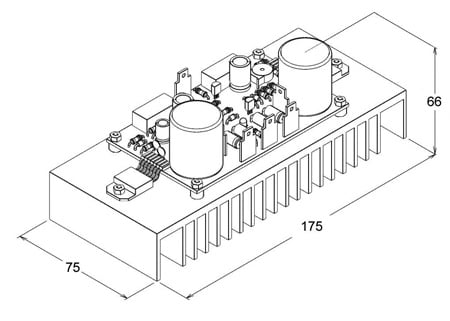

Design: discrete components with epitaxial Darlington output devices Output power: – 200W music power @ 4 ohm – 100Wrms @ 4 ohm – 70Wrms @ 8 ohm Distortion: 0.02% @ 1KHz/10W Frequency response: 3Hz ÷ 200KHz (-3dB) Sensitivity: 0.6Vrms S/N ratio: 115dB Power indicator: red LED Output protection: overloads and short circuits Power supply: 25-30Vac 120VA (centre-tapped transformer) Board dimensions: 107x62mm Recommended transformer: 8220-12030
