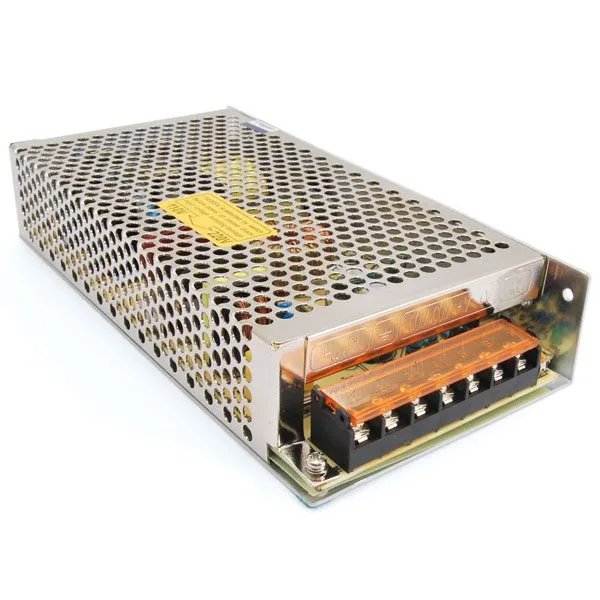

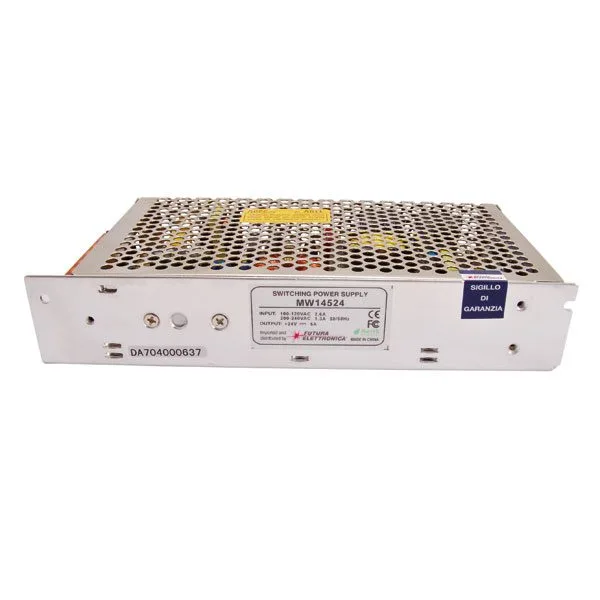

24 V / 145 W Switching Power Supply
Switching bench power supply with high efficiency, long service life and high reliability
SKU 4125-MW14524EAN 8219671083300Output voltage: 24 VdcBench power supplies
Description
| Switching bench power supply with high efficiency, long service life and high reliability. Metal enclosure, natural convection cooling, input voltage: from 88 to 264 VAC, output voltage 24 V, current 6 A, power 145 W. It has a power-on indicator LED plus short-circuit and overload protection. Switching technology brings a considerable reduction in weight and very high energy efficiency. |
| Technical specifications |
|
Technical details
| Input voltage | 88- 132 VAC / 176- 264 VAC (selectable) |
|---|---|
| Inrush current | 35 A / 230 VAC (cold start) |
| Leakage current | <3.5 mA / 240 VAC |
| Output voltage | 24 VDC (± 2%) |
| Output voltage range | 21 V to 28 V (adjustable) |
| Output current | 6 A |
| Current range | 0-6 A (7 A max.) |
| Ripple and noise (max) | 150 mVpp |
| Output power | 145 W |
| Efficiency | 83.5% |

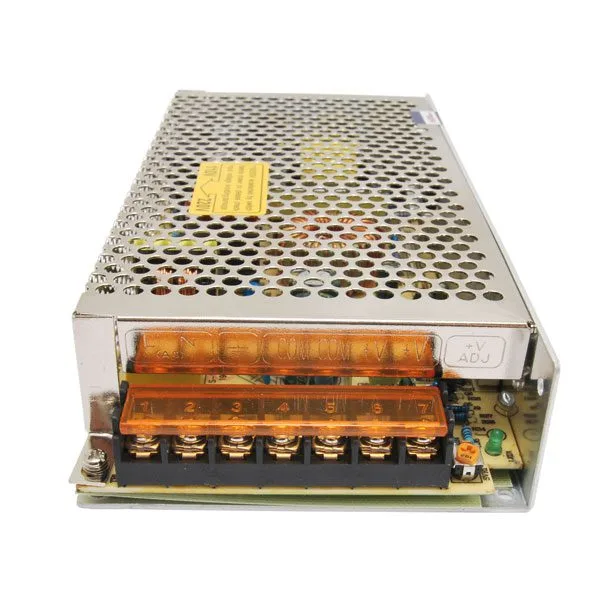

| Connection | 7-way terminal block |
| Overload protection | 125-150% of rated output power |
| Dimensions (mm) | 199 (length) x 98 (width) x 38 (height) |
| Weight | 710 g |
