3.3V-5V power supply for breadboards

Compact power supply designed specifically for use with breadboards
3.3V-5V power supply for breadboards - Image 1
3.3V-5V power supply for breadboards - Image 3

SKU 2846-BBOARDSUPPLYEAN 8219671059657Output voltage: 3.3 Vdc, 5 VdcItem type: AssembledConversion type: Step-down

Description

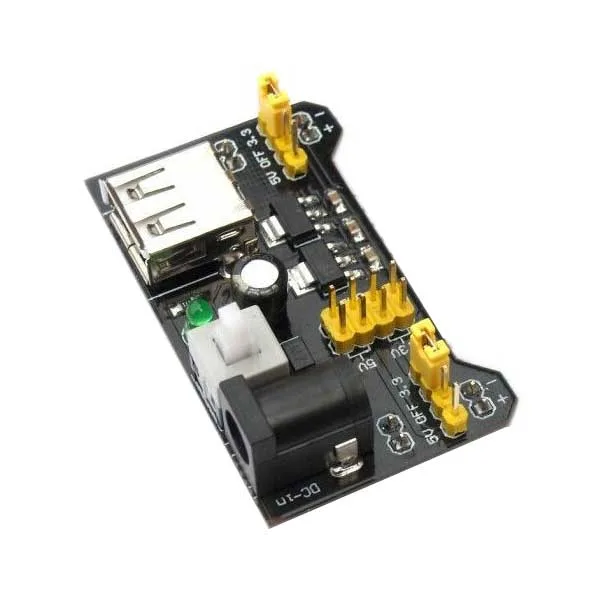

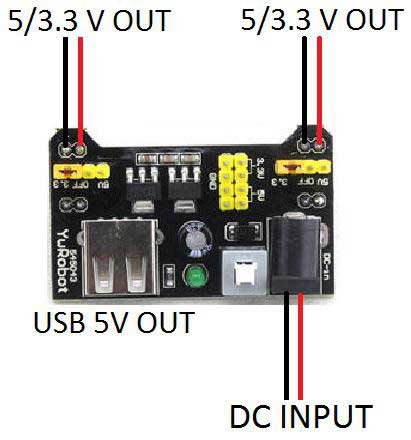

Compact power supply designed specifically for use with breadboards. With an input voltage between 6.5 and 12 Vdc it provides 2 separate output voltages, 3.3V and 5V, with a maximum current of about 700 mA. It has an on/off switch, a 5V USB output, a power LED and a voltage selection jumper. Size (mm): 55x35x23.

Measurements table:

Vin [V] Iin [A] Pin [W] Vout [V] Iout [A] Pout [W] η [%]
12 0.11 1.32 4.95 0.1 0.5 38
6.5 0.11 0.7 4.8 0.1 0.5 71
12 0.8 0.96 3.34 0.07 0.2 20
6.5 0.8 0.5 3.34 0.07 0.2 40

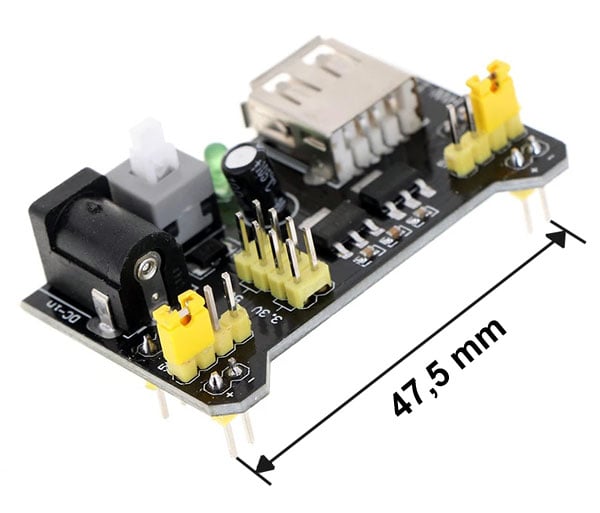

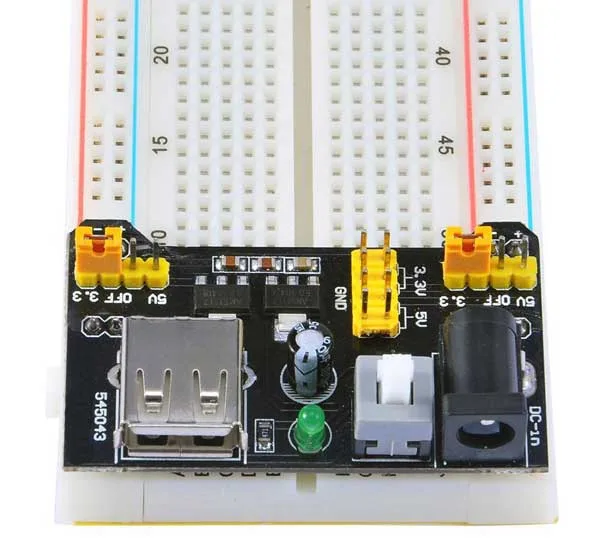

The measurement is the spacing the breadboard power rails (usually marked blue and red) must have for the product to fit
