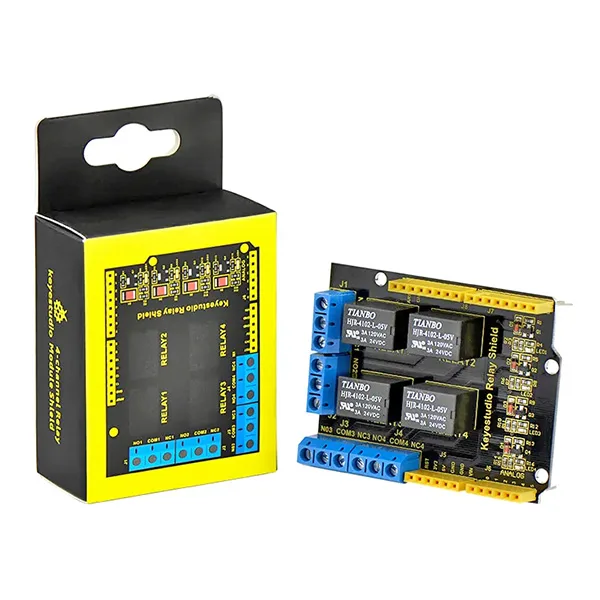

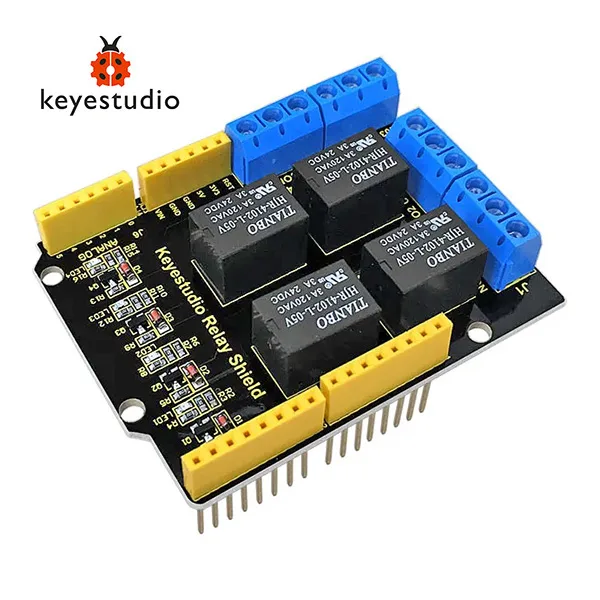

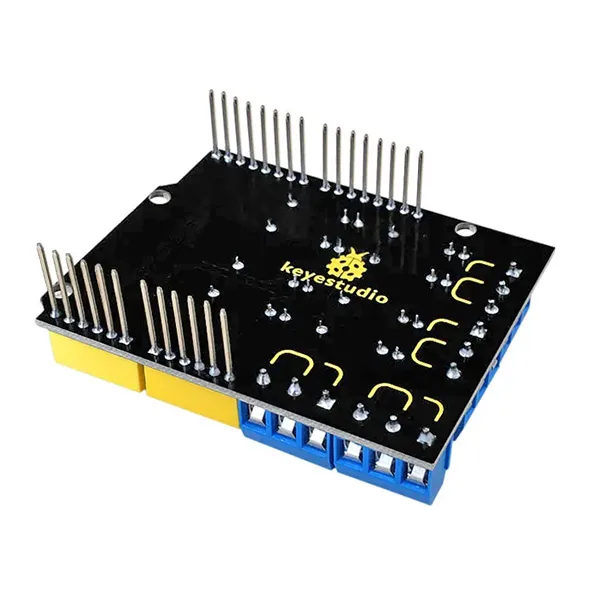

4-Relay Shield for Arduino
This 4-channel shield is designed for the Arduino UNO R3 and R4 and is ideal for switching high-current devices such as household appliances. With built-in LED indicators and easy direct connection to microcontrollers, it is perfect for automation projects.
SKU 7330-KS0251EAN 8219671062435Item type: Assembled, Kit, Shields & add-onsArduino compatible
Description
| 4-channel shield with 5V relays, designed to be compatible with the Arduino UNO R3 and R4 boards. This module lets you switch high-current devices such as household appliances. Each relay is driven by a HIGH signal and can handle loads up to 120V AC/3A or 24V DC/3A.

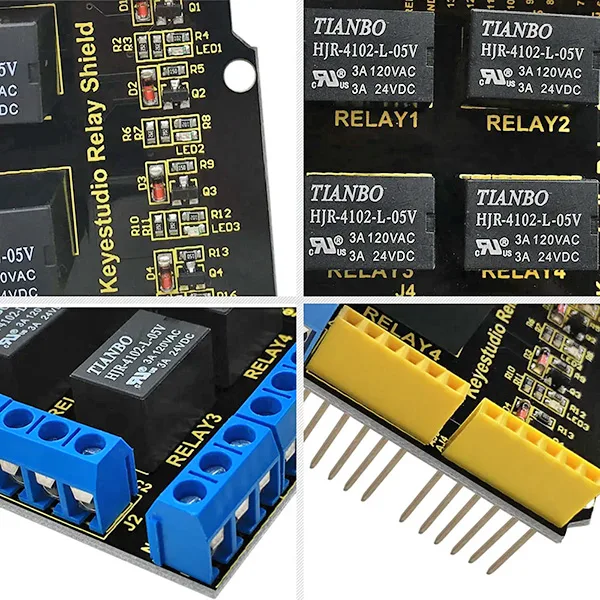

The KS0251 has four relays, wired respectively to digital pins 4, 5, 6 and 7 of the Arduino board. When one of these pins is set HIGH, the corresponding relay pulls in and its indicator LED lights up. The shield has a standard interface that allows a direct connection to microcontrollers. Easy to fit and easy to use, this shield is ideal for home automation projects and for remote control of devices. |
| Main features |
|
| Keystudio Arduino 4-Relay Shield |

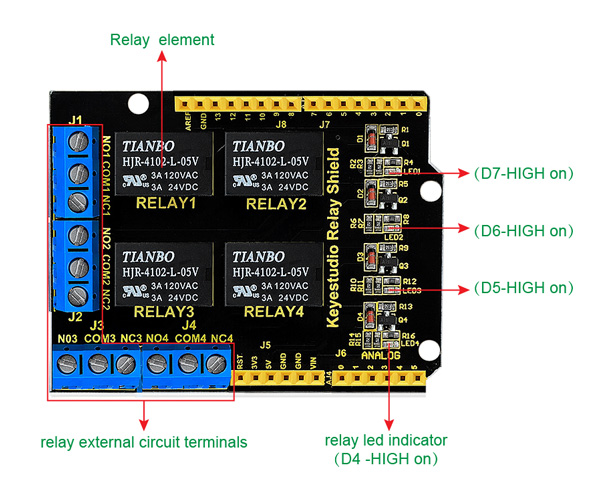

| PINOUT |
 |
| Documentation and useful links |
Technical details
| Operation | the relay shield runs on 5V with an active HIGH signal |
|---|---|
| Contact rating | 120V AC / 3A; 24V DC / 3A |
| LED indicators | 4 red LEDs light up when the corresponding relay is energised |
| Power input | 5V DC |
| Number of channels | 4 |
| PCB colour | black |
| Dimensions | 69mmx54mmx26mm |
| Weight | 39.4g |
