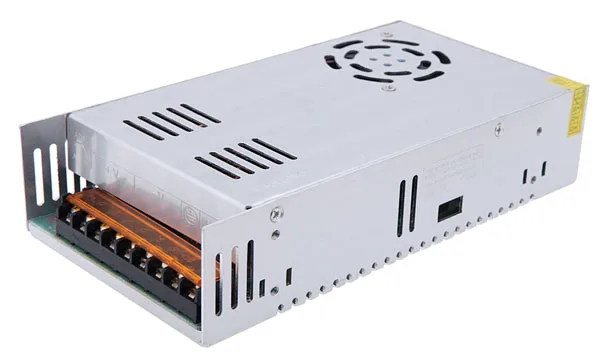

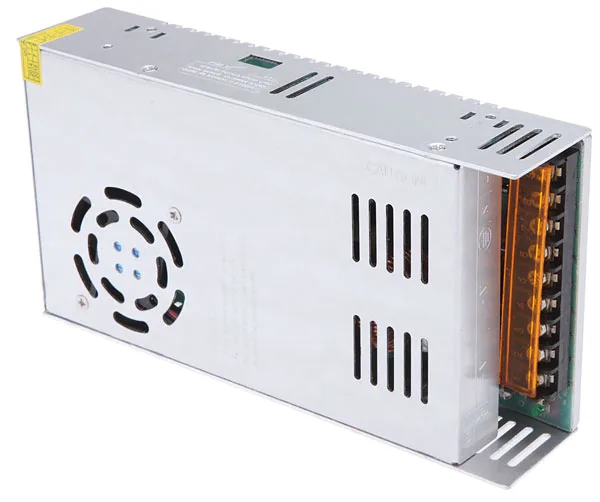

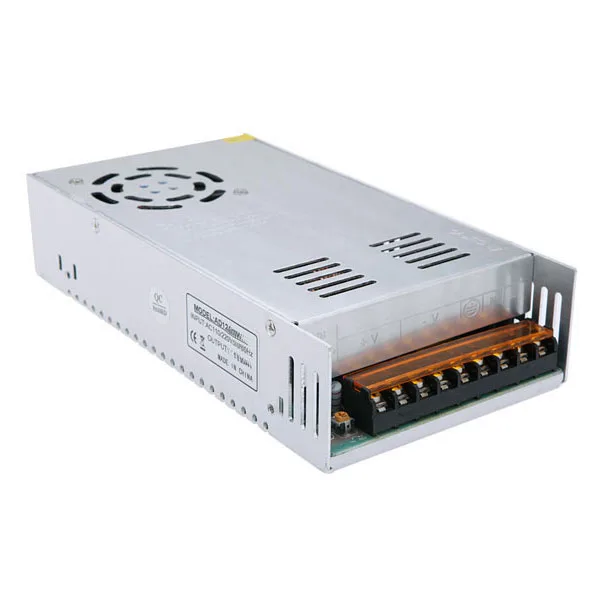

48V – 480W switching power supply
High-efficiency switching power supply with long life and high reliability
SKU 1606-PS48V10AEAN 8219671119665Output voltage: 48 VdcBench power supplies
Description
| High-efficiency switching power supply with long life and high reliability. Metal case, fan cooling, input voltage: 110 to 220 VAC, output voltage 48 volts, current 10 A, power 480 W. It has a power-on LED indicator and short-circuit and overload protection. Switching technology makes the unit considerably lighter and gives it very high energy efficiency. |
| Technical specifications |
|
Technical details
| Input voltage | 110 VAC / 220 VAC (selectable) |
|---|---|
| Leakage current | <3.5 mA / 240 VAC |
| Output voltage | 48 VDC (± 1%) |
| Output voltage range | 41 V to 56 V (adjustable) |
| Output current | 10 A |
| Current range | 0 to 10 A |
| Ripple and noise (max) | 300 mVpp |
| Output power | 480 W |
| Efficiency | 87% |

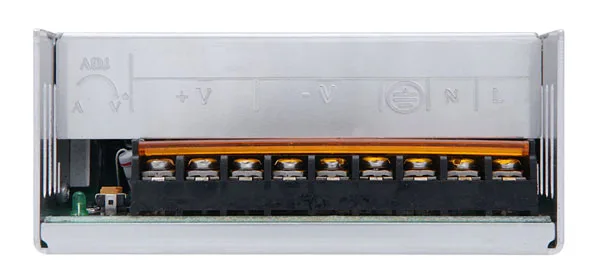

| Connection | 9-way terminal block |
| Overload protection | 105-135% of rated output power |
| Insulation resistance | 100 Mohm / 500 VDC |
| Operating temperature | -10°C to +60°C |
| Storage | -20°C to +85°C, 10-95% RH |
