4G SOS Alarm System for the Elderly with Speed Dial and SMS Alerts

Protect the people you love with this alarm system, made for elderly and vulnerable people. Speed dial and SMS alerts bring immediate help in an emergency, for safety and peace of mind every day.

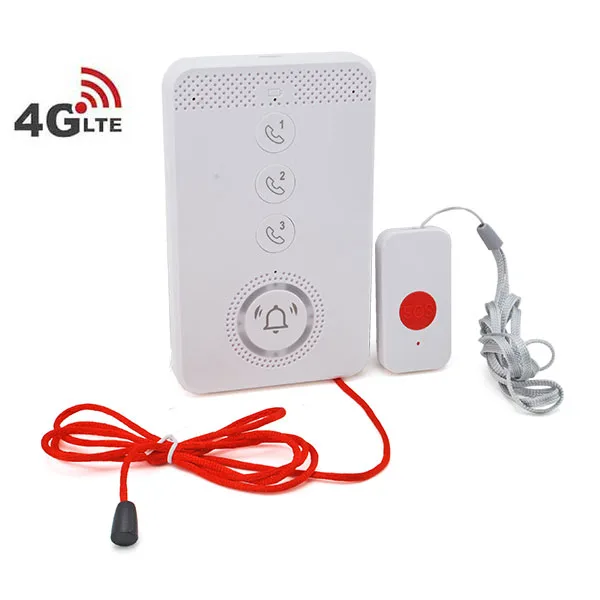

4G SOS Alarm System for the Elderly with Speed Dial and SMS Alerts - Image 1
4G SOS Alarm System for the Elderly with Speed Dial and SMS Alerts - Image 3

SKU 8100-FR839EAN 8219671108317,

Description

Reliability, safety and simplicity in a single device made to protect the people you love.
This SOS 4G alarm system is made for elderly and vulnerable people, bringing immediate help in an emergency.
The main unit, together with a waterproof portable remote control, lets the user call for help with the emergency buttons, the SOS pull cord or voice commands.
Up to three contacts can be stored: the system automatically sends alert SMS messages and calls the first number on the list. If the first contact does not answer, the device moves on to the second and then to the third, always keeping clear, uninterrupted two-way audio.
The built-in backup battery keeps the unit running for up to 5 hours even during a mains failure.
Easy to install and to configure remotely by SMS, with no app required, the device also offers extras such as tamper protection and a handy doorbell function. An essential answer for anyone looking for safety and peace of mind in daily life. The system can be expanded with a PIR sensor so that the SOS system is triggered when the sensor detects an intrusion.IMPORTANT NOTE: this device needs a nano SIM with voice and SMS traffic and an active VoLTE service. SIM card not included.
Key features
  • Remote setting of the functions by SMS
  • Three phone contacts can be stored
  • 4G LTE support for clear audio and a fast response
  • Two-way hands-free audio communication
  • Automatic answer for incoming calls from the stored contacts
  • SMS alerts sent in an emergency
  • Four speed-dial buttons for instant calls
  • SOS pull cord for quick access to the emergency button
  • Waterproof neck-worn transmitter with an easy-to-press button
  • Voice activation command for hands-free operation
  • Tamper protection, for complete security
  • Doorbell function, handy for attracting attention
  • Low battery alarm, so the unit never stops working unnoticed
  • Easy to install and to use, so the main functions are always within reach.

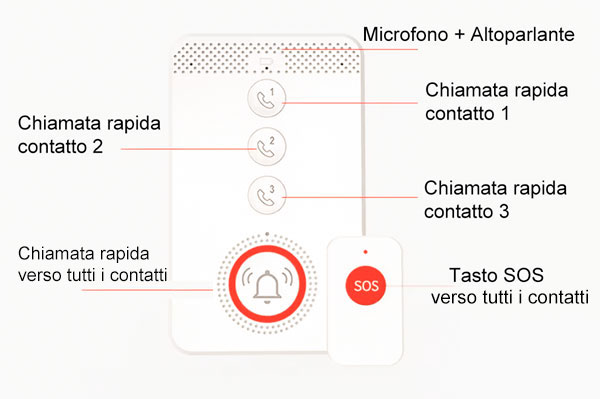

Product overview

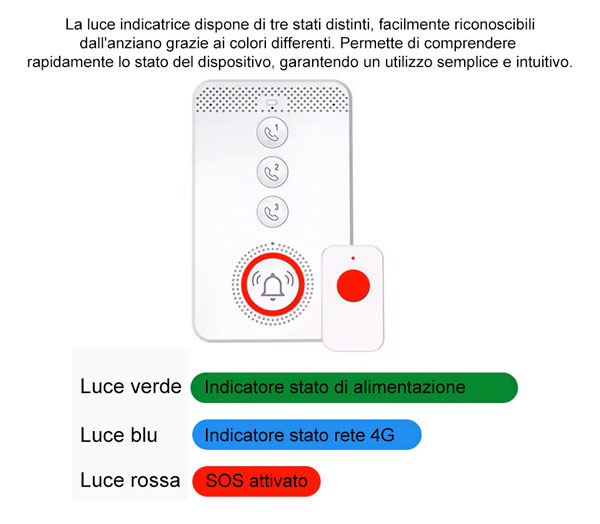

Status LEDs on the unit
4G SOS alarm system for the elderly with quick-dial calls, SMS alerts and voice command
Immediate call for help by button or voice command
4G SOS alarm system for the elderly with quick-dial calls, SMS alerts and voice command
What happens when the alarm goes off
When an alarm is raised, before starting the call cycle the telecare system sends an SMS containing the text “SOS Alarm” to every phone number set to receive SMS messages.
The phone calls are then made in the stored order.Here are some of the possible situations:
  • The first person on the list answers (this also applies if the voicemail answers): the alerting procedure ends here, because the alarm is considered delivered.
  • The first person on the list does not answer (voicemail on no-answer is disabled): at the end of the first unanswered call a second one is made. If there is no answer to the second call either, the telecare system calls the second number on the list, and then the third in the same way, depending on whether the person called answers or not.
  • The person receives the call but rejects it (voicemail on rejection is disabled): the following numbers on the list are called, and the procedure ends or carries on according to the cases described above.
Package contents
  • Main unit x1
  • USB mains adapter
  • SOS button with neck cord x1
  • Wall mounting bracket x1
  • USB Type-C cable x1
  • User manual x1

Technical details

Power supply Type-C with 5V-1A adapter
Backup battery 3.7V lithium, 500mAh
Low battery alarm triggers below 3.65VDC
Power consumption <100mA in standby, max. 1000mA on a call
Voice recognition range up to 5 metres
A7670E module LTE-FDD 81/83/85/87/88/820, GSM/GPRS/EDGE 900/1800MHz
A7670SA module LTE-FDD 81/82/83/B4/85/87/88/828/866, GSM/GPRS/EDGE 850/900/1800/1900MHz
SIM card Nano format
Radio frequency 433MHz
SOS button power CR2032 lithium battery x1
IP rating IP65 (waterproof and dust resistant)
Installation Wall mounting
Operating temperature -10°C to 55°C
