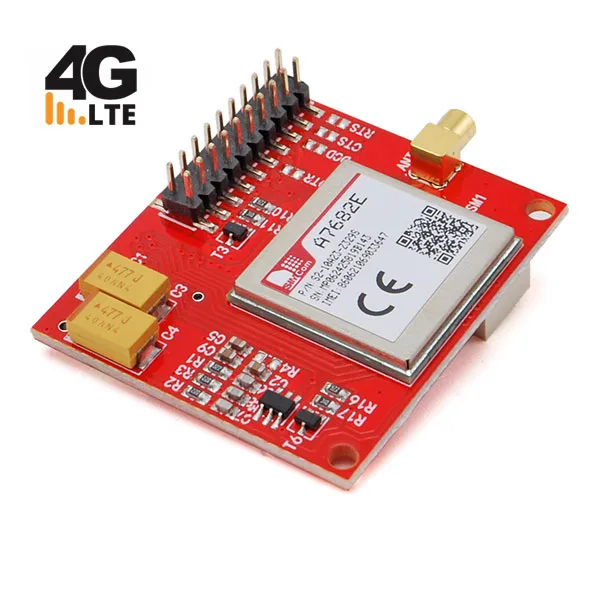

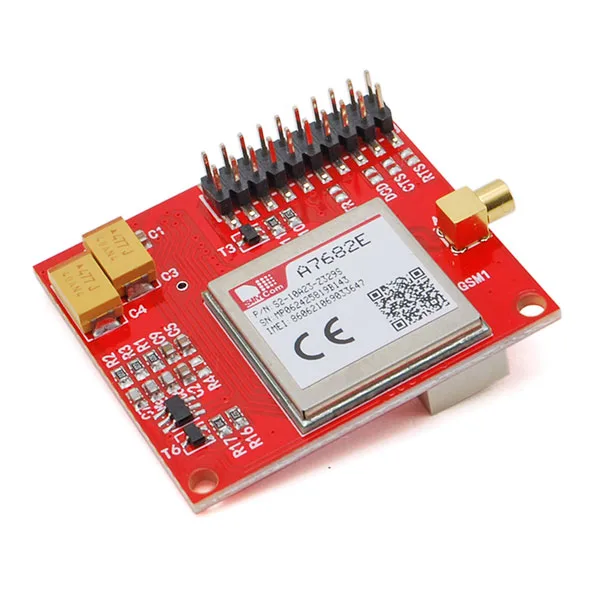

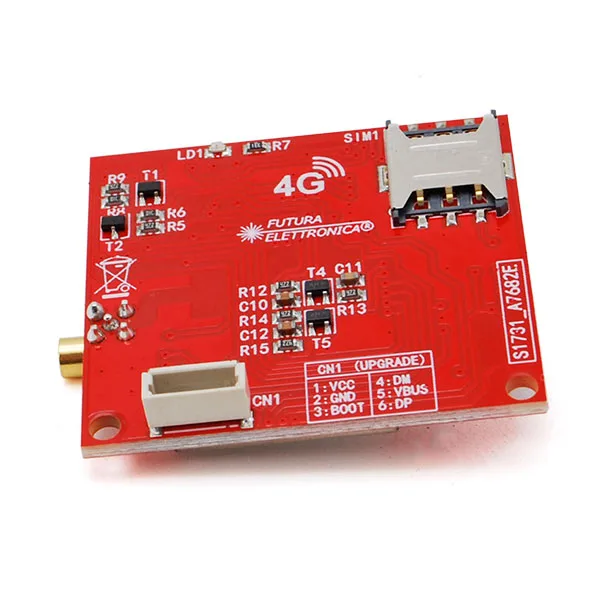

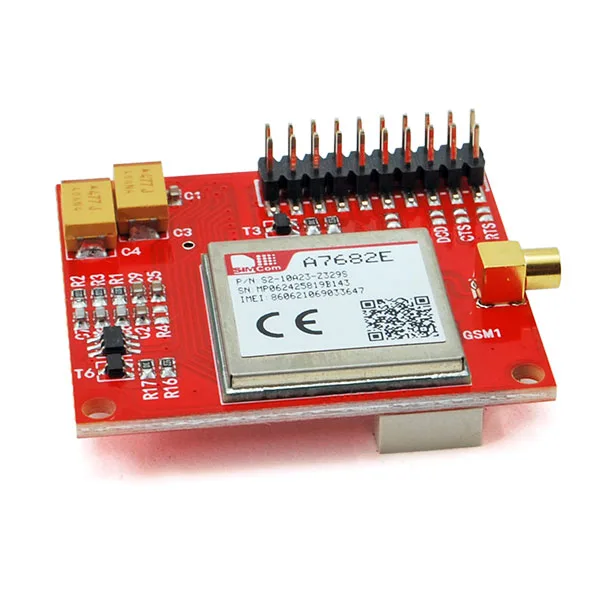

GSM 4G/LTE Cellular Module – SIMCom A7682E
SIMCom A7682E GSM 4G/LTE cellular module with MMCX connector and nano-SIM slot, ideal for stable mobile connections in IoT projects. It interfaces with control circuits, such as a microcontroller.
SKU 7100-FT1731MEAN 8219671081511Item type: AssembledGSM/GPRS
Description
| Miniature GSM 4G/LTE module based on SIMCom’s A7682E, complete with an MMCX antenna connector and a nano-SIM slot. Designed to ensure reliable performance and a stable connection, it includes all the electronics needed for the module to work correctly. It features a 2×10-way, 2mm pitch connector for connection to the control circuit, providing power (positive and negative) and handling communication between the GSM module and the control device.
The package does not include the GSM antenna (see related products). |
| Technical features |
|

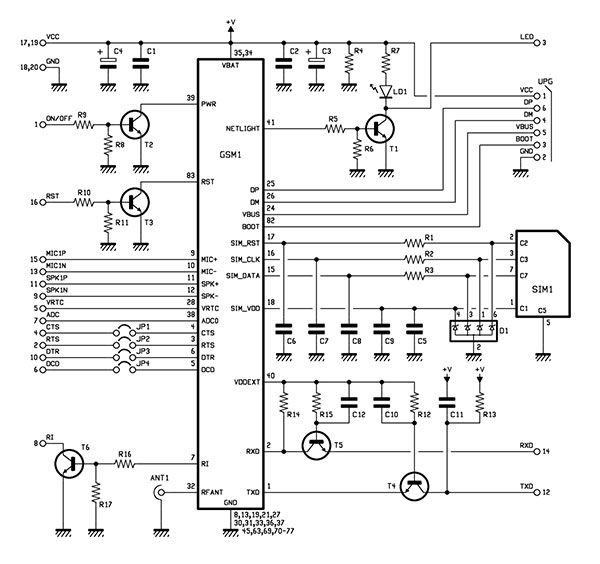

| Wiring diagram |
 |
| Documentation and useful links |
Technical details
| PCB dimensions / weight | 38 x 35 mm / 17 grams |
|---|---|
| GSM/4G module | A7682E |
| Frequency band | LTE-FDD B1/B3/B5/B7/B8/B20/GSM/GPRS/EDGE 900/1800 MHz |
| Power supply | 3.4V ~ 4.5V |
| Typ | 3.8V |
| Operating temperature | -40℃ ~ +85℃ |
| Weight | 1.9 grams |
| LTE Cat 1 | Uplink up to 5Mbps / Downlink up to 10Mbps |
| EDGE | Uplink/Downlink up to 236.8Kbps |
| GPRS | Uplink/Downlink up to 85.6Kbps |
