SIM800C GSM Board with 2×10-Way Connector

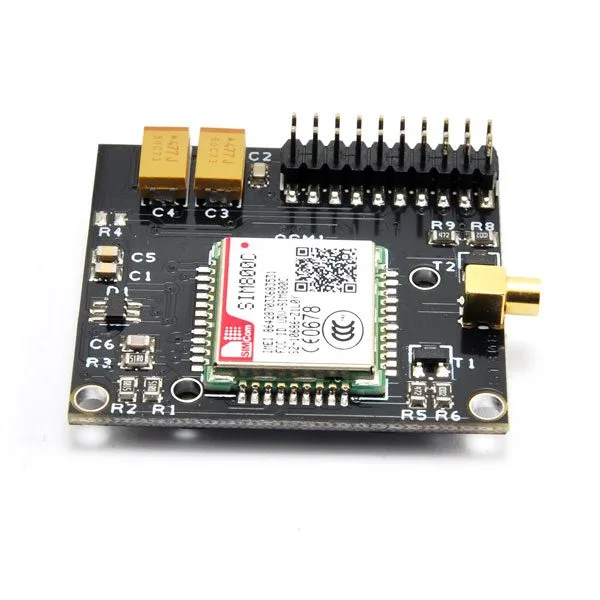

SIM800C GSM Board with 2x10-Way Connector - Image 1

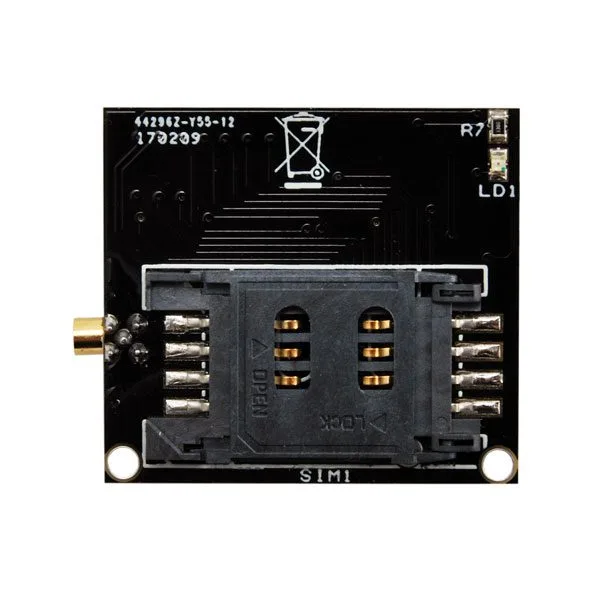

SIM800C GSM Board with 2x10-Way Connector - Image 3

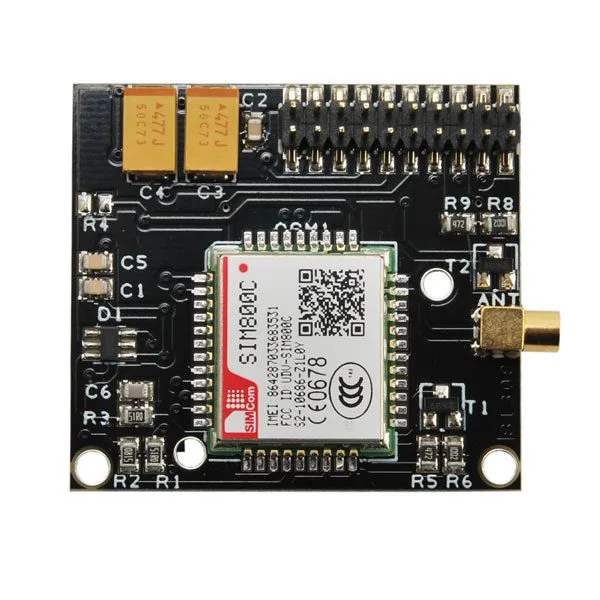

SIM800C GSM Board with 2x10-Way Connector - Image 4

SKU 7100-FT1308MEAN 8219671083348Item type: Assembled

Description

Compact board carrying the SIMCom SIM800C GSM engine, a 90° MMCX antenna connector and a 2x10-way male header on a 2 mm pitch, which brings out the power supply, the power-on control line (PWR) and all the signals and serial communication lines to and from the GSM module. The board is supplied ready assembled

Simplify the development of your IoT and communication projects with this compact board equipped with the SIMCom SIM800C GSM module. It includes a 90° MMCX antenna connector and a 2×10-pin male header strip with 2 mm pitch, making available power supply, power-on control line (PWR), communication signals, and serial lines to and from the GSM module. Thanks to its small size (37x34x10 mm) and pre-assembled supply, it is perfect for embedded solutions where space is critical.

Note: The GSM antenna is not included (see related products).

Electrical schematic and connector pinout
