GSM whip antenna with U.FL connector

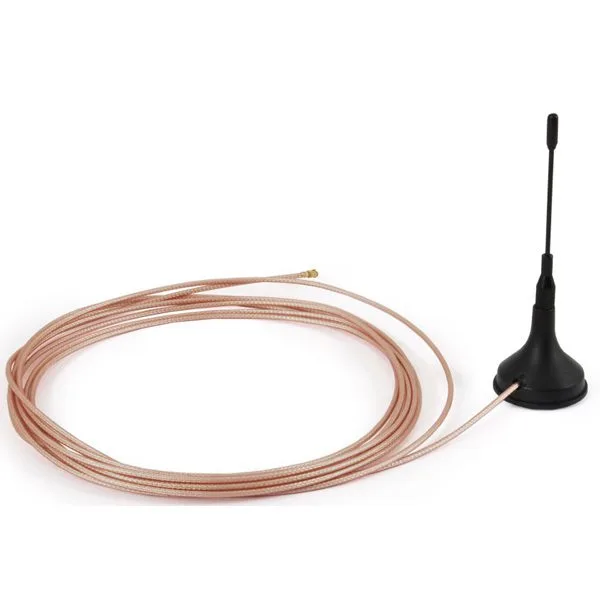

GSM whip antenna with magnetic base and 3 metre of cable
GSM whip antenna with U.FL connector - Image 1

SKU 8170-ANTGSMSTL-UFLEAN 8219671060059Item type: Assembled

Description

GSM whip antenna with magnetic base and 3 metre of cable. RG178 cable, U.FL connector, whip height 9 cm. Quad-band, compatible with GSM networks operating at 850/900/1800/1900 MHz.

Technical details

Frequency 870-960; 1710-1900 MHz
V.S.W.R. (Voltage Standing Wave Ratio) ≤1.6
Bandwidth ~ 5 MHz
Impedance 50 ohm
Gain (without cable) 3.5dBi
Polarisation Vertical
Cable length RG178 - 3 m
Operating temperature -40°C ~ +85°C
Dimensions 28.2 x 90 mm
Mounting magnetic
