GSM Whip Antenna with MMCX Connector

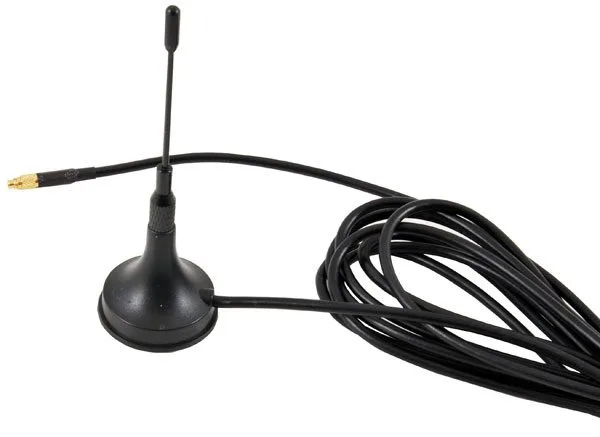

GSM whip antenna with magnetic base and 3 metres of cable
GSM Whip Antenna with MMCX Connector - Image 1
GSM Whip Antenna with MMCX Connector - Image 3

SKU 8170-ANTGSMSTL-MMCXEAN 8219671051880Item type: Assembled

Description

The GSM whip antenna with magnetic base is the perfect accessory for boosting your mobile connection reliably. With a 3 metre RG174 cable and an MMCX connector, this antenna delivers stable, high-quality transmission.

Thanks to its magnetic base, you can easily place the antenna on metal surfaces for better signal reception. With a whip height of 12 cm, the antenna offers excellent reach for picking up and transmitting GSM signals on the 850/900/1800/1900 MHz bands.

Our GSM whip antenna works with quad-band networks, so you can rely on a stable mobile connection across different parts of the world.

Technical specifications
  • Frequency:
    – 824~894 MHz / 1710~1990 MHz
    – 880~960 MHz / 1710~1990 MHz
    – 1920~2170 MHz

Technical details

V.S.W.R(5m) 2.0:1
Bandwidth ~ 5 MHz
Impedance 50 ohm
Gain (without cable) 2 dBi
Cable length RG174 - 3 m
Operating temperature -40°C ~ +85°C
Dimensions 29× 120 mm
Mounting magnetic/adhesive
